NCP125-CHXGK (2010)
Toyota Ractis

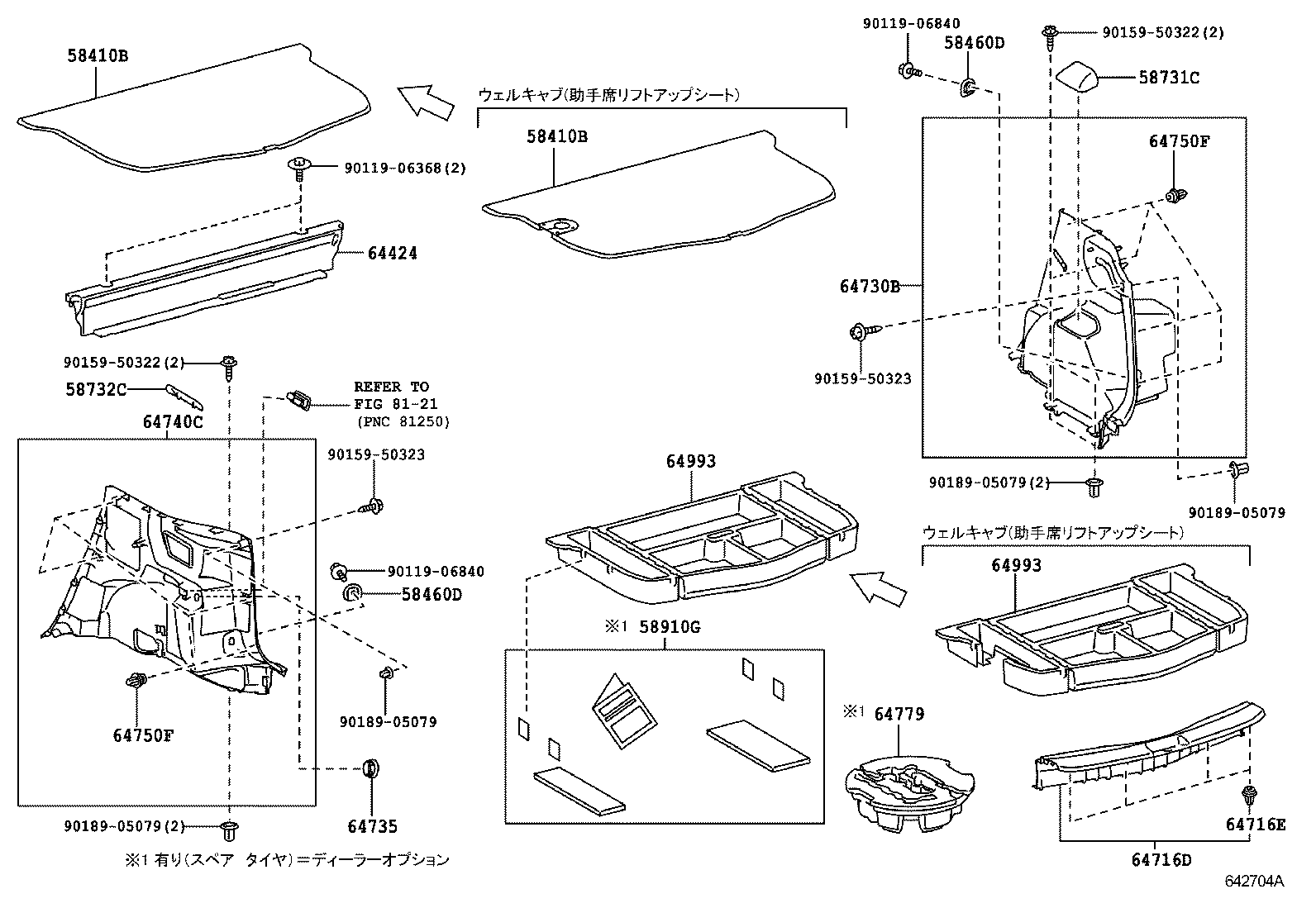

ILLUST NO. 1 OF 2(1011-1111)NCP125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52110B0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2# |
1 | ||
| 58410-52070B0 |
NCP125..X ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2# |
1 | ||
| 58410-52070B0 |
NCP125..G DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52110B0 |
NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52110B0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NCP125,NSP120..X DARK GRAY,TRIM2#,4#,8# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52110B0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2# |
1 | ||
| 58410-52070B0 |
NCP125..X ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2# |
1 | ||
| 58410-52070B0 |
NCP125..G DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52110B0 |
NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52110B0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NCP125,NSP120..X DARK GRAY,TRIM2#,4#,8# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58460-33020 |
NCP120,125,NSP120 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58460-33020 |
NCP120,125,NSP120 |
2 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 58731-52050C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 58910G - BOX ASSY | ||||
| 58910-52140 |
NCP125 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52160C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64716-52160C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NCP120,125,NSP120 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52390C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64730-52390C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-13050C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64735-13050C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52410C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64740-52410C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64740-52610C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64740-52660C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 64740-52520C0 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 64740-52610C0 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 64740-52660C0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
4 | ||
| 90467-10161 |
NCP120,125,NSP120 |
16 | ||
| 90467-10161 |
NCP120,125,NSP120 |
8 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
4 | ||
| 90467-10161 |
NCP120,125,NSP120 |
16 | ||
| 90467-10161 |
NCP120,125,NSP120 |
8 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-46010 |
NCP120,125,NSP120 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52070 |
NCP125 |
1 | ||
| 64993-52110 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52070 |
NCP125 |
1 | ||
| 64993-52110 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06840 | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 8121 | ||||

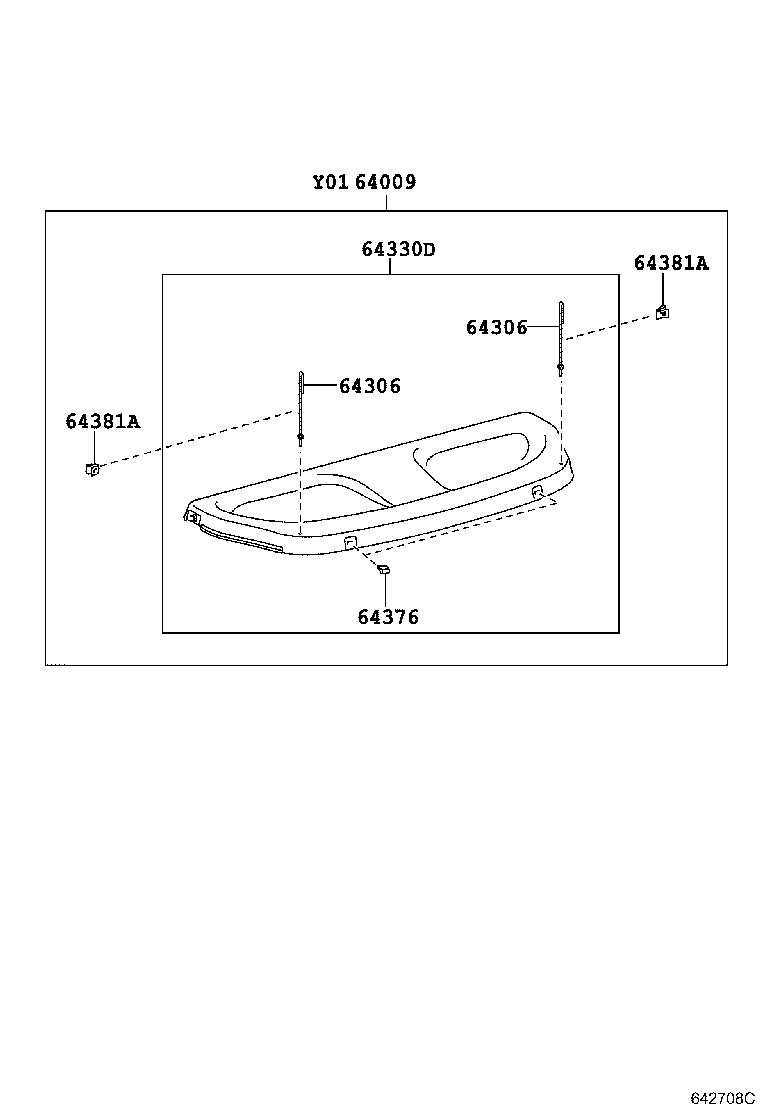

ILLUST NO. 2 OF 2(1011- )
ﾊﾟｯｹｰｼﾞﾄﾚｲ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64009 - TONNEAU COVER SET | ||||
| 64009-52040B0 |
NCP120,125,NSP120..S,X ***,ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ),DK.GRAY,TRIM2# |
1 | ||
| 64009-52040B0 |
NCP120,125,NSP120..G ***,ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ),DK.GRAY,TRIM2#,4# |
1 | ||
| 64009-52040 |
NCP120,125,NSP120 ***,ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
1 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-52040 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64306-52040 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-52040 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64306-52040 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-52400B1 |
NCP120,125,NSP120..S,X ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ),DK.GRAY,TRIM2# |
1 | ||
| 64330-52400B1 |
NCP120,125,NSP120..S,X ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ),DK.GRAY,TRIM2# |
1 | ||
| 64330-52400B1 |
NCP120,125,NSP120..G ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ),DK.GRAY,TRIM2#,4# |
1 | ||
| 64330-52400B1 |
NCP120,125,NSP120..G ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ),DK.GRAY,TRIM2#,4# |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-12020 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64376-12020 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64381-52010 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||
| 64381-52010 |
NCP120,125,NSP120 ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り(ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ) |
2 | ||

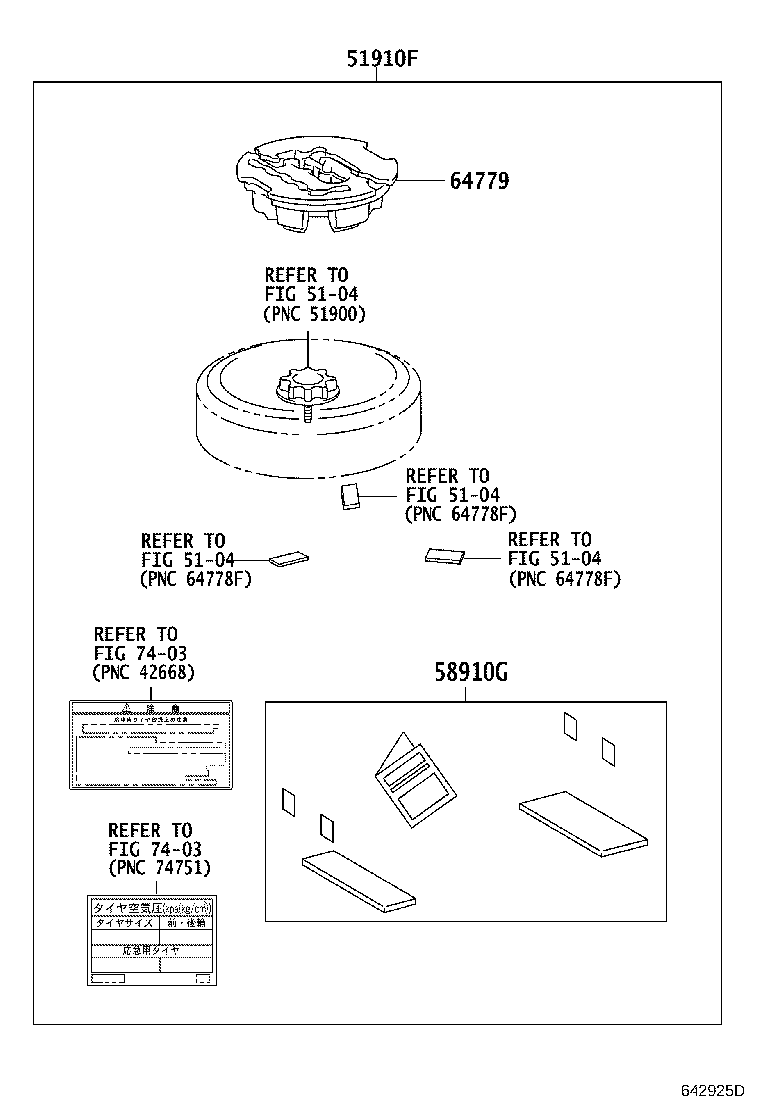

(1011-1111)NCP125
ｽﾍﾟｱﾀｲﾔｷｯﾄ(DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51910F - CARRIER ASSY, FRONT SPARE WHEEL | ||||
| 51910-52030 |
NCP125 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-46010 |
NCP120,125,NSP120 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| Linked diagrams | ||||
| 5104 | ||||
| 7403 | ||||

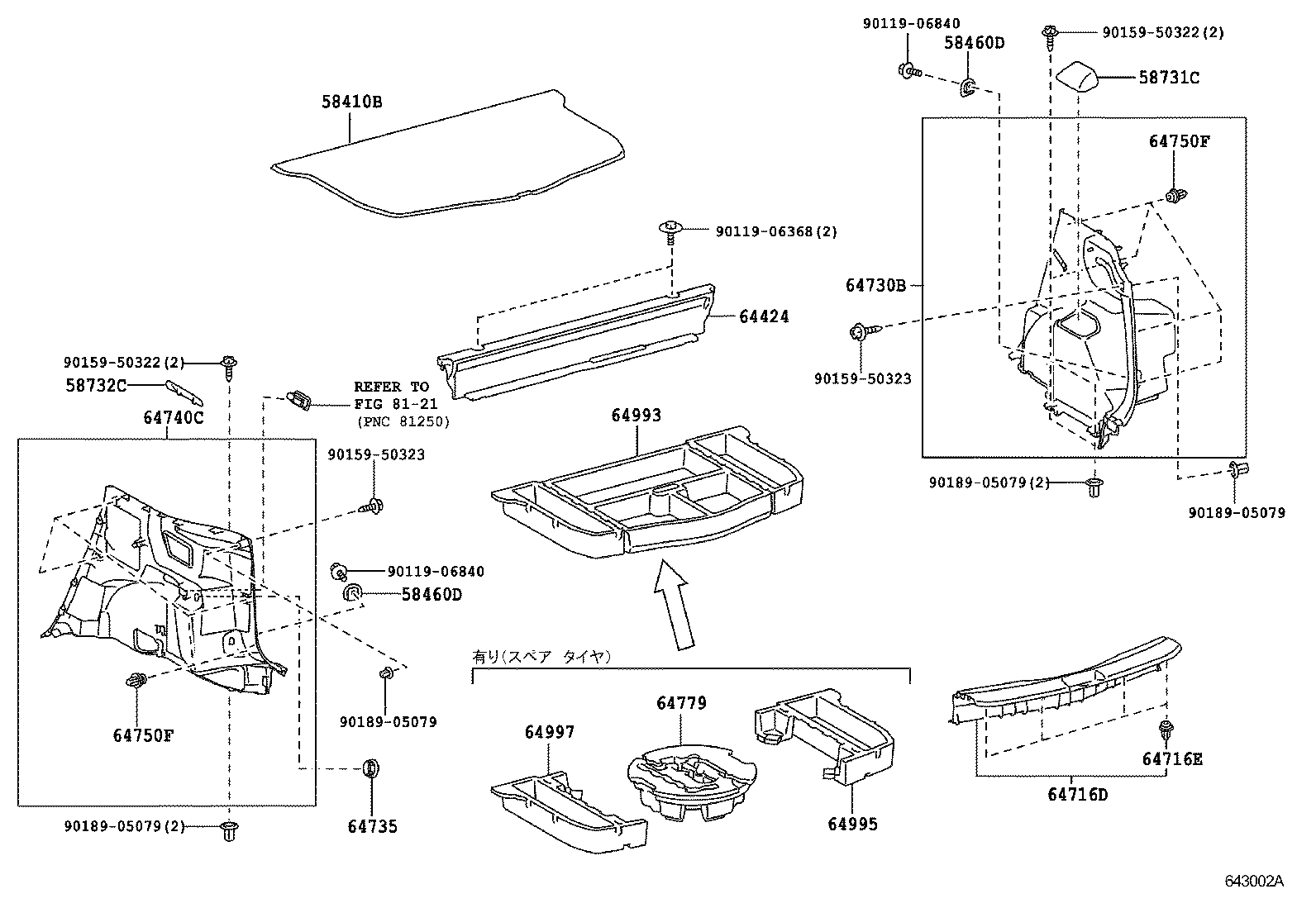

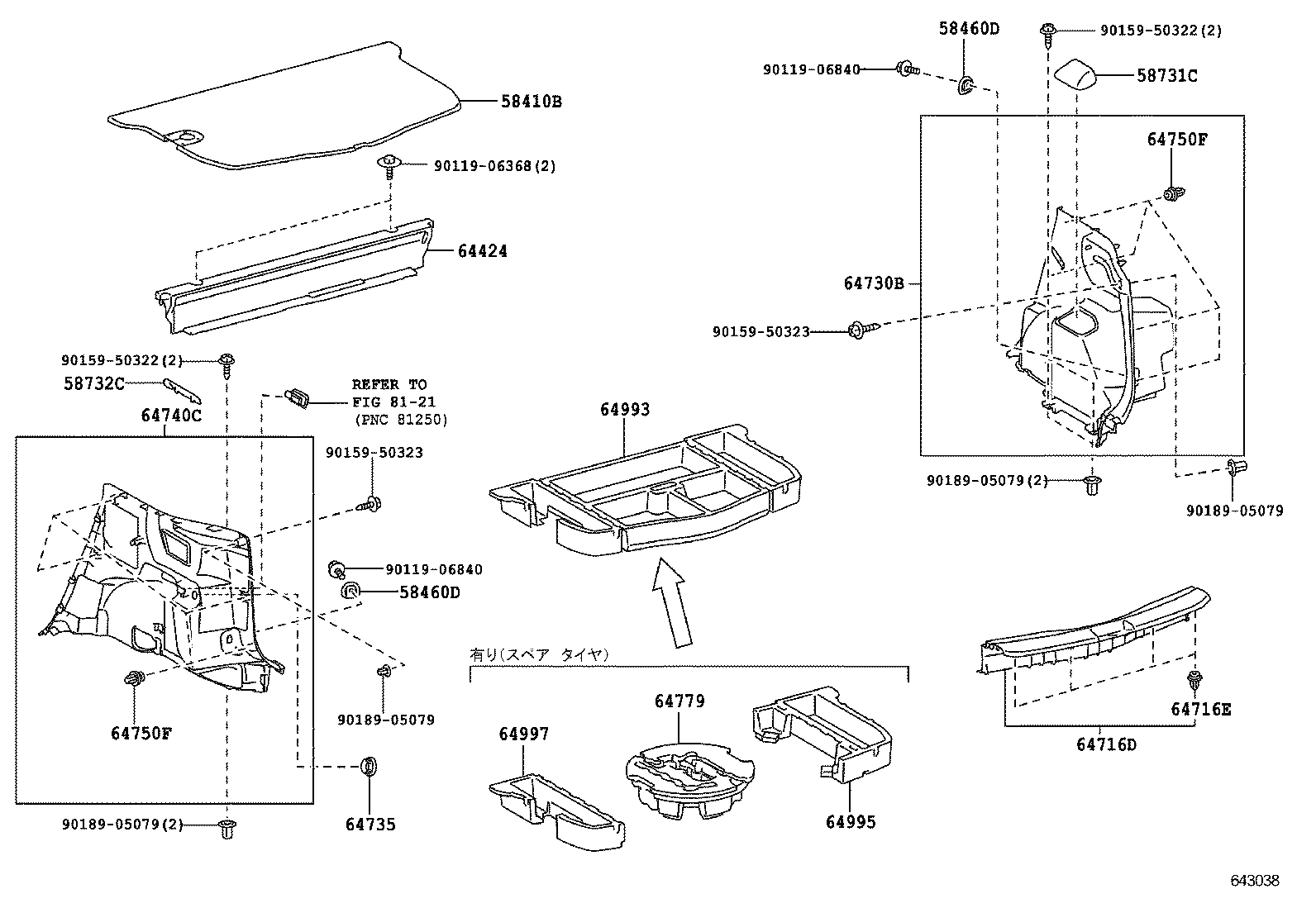

ILLUST NO. 1 OF 2(1111- )NCP125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52110B0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2# |
1 | ||
| 58410-52070B0 |
NCP125..X ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2# |
1 | ||
| 58410-52070B0 |
NCP125..G DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52110B0 |
NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52110B0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NCP125,NSP120..X DARK GRAY,TRIM2#,4#,8# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58460-33020 |
NCP120,125,NSP120 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58460-33020 |
NCP120,125,NSP120 |
2 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 58731-52050C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52160C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64716-52160C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NCP120,125,NSP120 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52390C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64730-52390C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-13050C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64735-13050C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52410C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64740-52410C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64740-52610C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64740-52660C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 64740-52520C0 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 64740-52610C0 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 64740-52660C0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
4 | ||
| 90467-10161 |
NCP120,125,NSP120 |
16 | ||
| 90467-10161 |
NCP120,125,NSP120 |
8 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
4 | ||
| 90467-10161 |
NCP120,125,NSP120 |
16 | ||
| 90467-10161 |
NCP120,125,NSP120 |
8 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-46010 |
NCP120,125,NSP120 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52070 |
NCP125 |
1 | ||
| 64993-52110 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-52110 |
NCP125 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64995-52110 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-52100 |
NCP125 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52110 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06840 | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 1 OF 2(1111- )NCP125..G,X
ｳｴﾙｷｬﾌﾞ(ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52110B0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2# |
1 | ||
| 58410-52070B0 |
NCP125..X ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2# |
1 | ||
| 58410-52070B0 |
NCP125..G DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52110B0 |
NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52110B0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NCP125,NSP120..X DARK GRAY,TRIM2#,4#,8# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58460-33020 |
NCP120,125,NSP120 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58460-33020 |
NCP120,125,NSP120 |
2 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 58731-52050C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52160C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64716-52160C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NCP120,125,NSP120 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52390C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64730-52390C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-13050C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64735-13050C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52410C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64740-52410C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 64740-52610C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 64740-52660C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 64740-52520C0 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 64740-52610C0 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 64740-52660C0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
4 | ||
| 90467-10161 |
NCP120,125,NSP120 |
16 | ||
| 90467-10161 |
NCP120,125,NSP120 |
8 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
4 | ||
| 90467-10161 |
NCP120,125,NSP120 |
16 | ||
| 90467-10161 |
NCP120,125,NSP120 |
8 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-46010 |
NCP120,125,NSP120 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52070 |
NCP125 |
1 | ||
| 64993-52110 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-52110 |
NCP125 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64995-52110 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-52100 |
NCP125 ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| 64997-52110 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&ｽﾍﾟｱ ﾀｲﾔ−T125/70 D16 |
1 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06840 | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
