NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )NCP125

Click highlighted areas on diagram

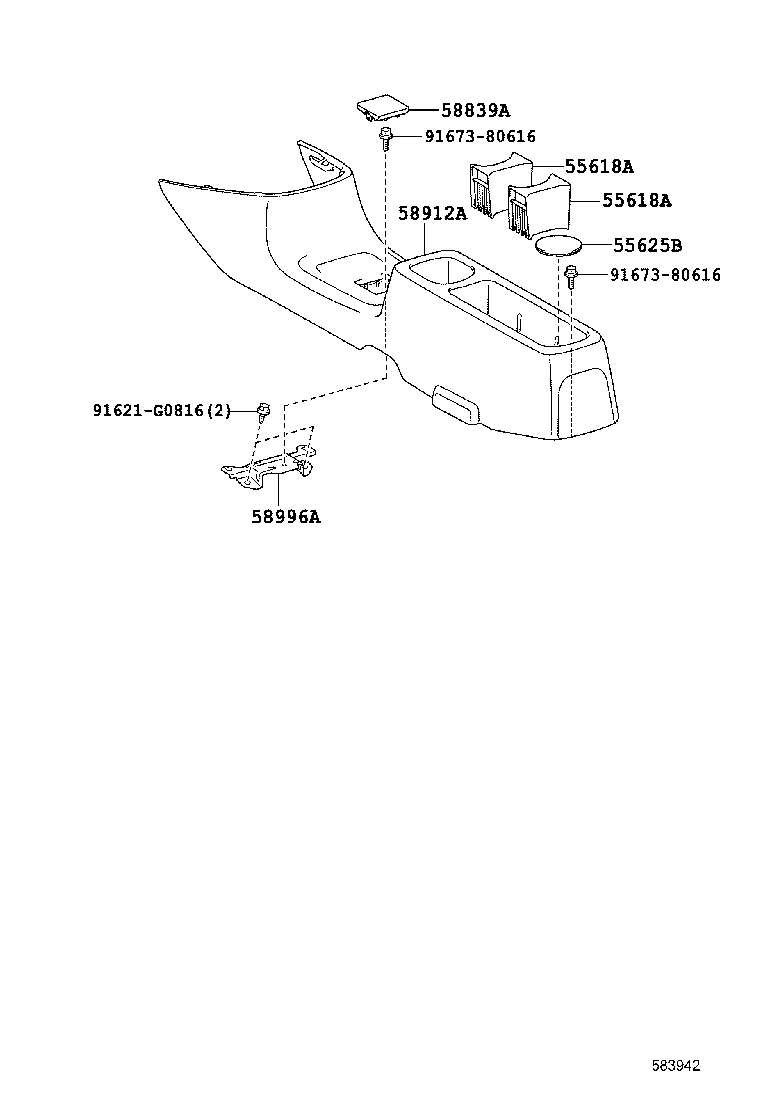

diagram 55618A 55618A 55625B 58839A 58912A 58996A 91621G0816 9167380616 9167380616
Part # Description Qty Price
55618A - HOLDER, CONSOLE BOX CUP
55618-52080C0

NSP122;NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
55618-52080C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 2
55618A - HOLDER, CONSOLE BOX CUP
55618-52080C0

NSP122;NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
55618-52080C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 2
55625B - TRAY, INSTRUMENT PANEL CUP HOLDER
55625-52090C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 1
55625-52090C0

NSP122;NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-52020C0

NSP122;NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
58839-52020C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 1
58912A - BOX, REAR CONSOLE
58911-52190C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
58911-52190C0

NCP125..G

BLACK,TRIM2#,4#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-52020

NCP12#,NSP12#

 1
Common parts
91621-G0816
91673-80616
