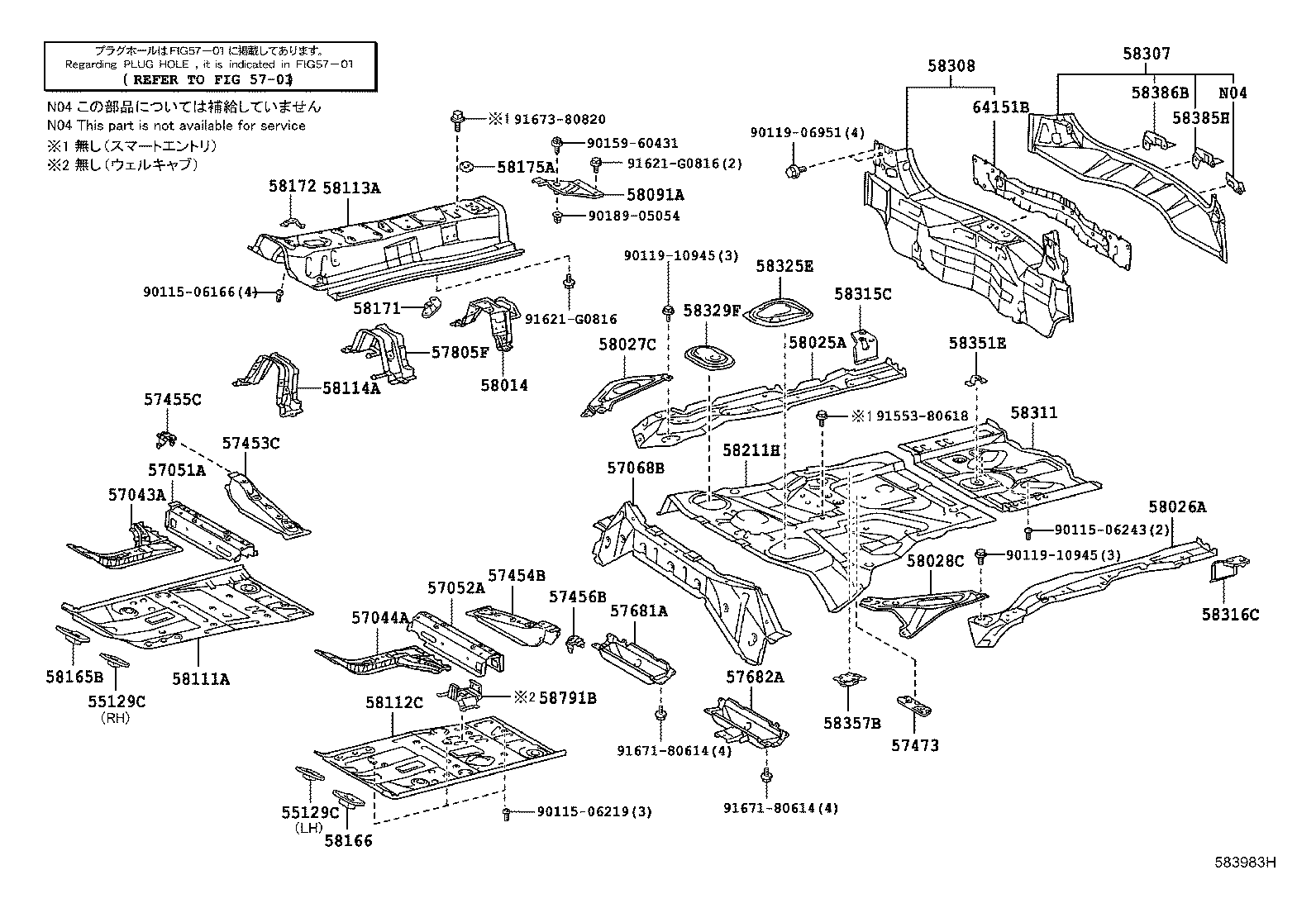

NCP125-CHXGK (2010)
Toyota Ractis
(1011- )NCP125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55139-52021 |
NCP12#,NSP12# 左側 |
1 | ||
| 55129-52051 |
NCP12#,NSP12# 右側 |
1 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55139-52021 |
NCP12#,NSP12# 左側 |
1 | ||
| 55129-52051 |
NCP12#,NSP12# 右側 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52022 |
NCP12#,NSP12# |
1 | ||
| 57043-52021 |
NCP12#,NSP12# |
1 | ||
| 57043-52021 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 57043-52021 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52042 |
NCP12#,NSP12# |
1 | ||
| 57044-52041 |
NCP12#,NSP12# |
1 | ||
| 57044-52041 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 57044-52041 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52010 |
NCP12#,NSP12# |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52010 |
NCP12#,NSP12# |
1 | ||
| 57068B - MEMBER SUB-ASSY, REAR FLOOR CROSS, FRONT | ||||
| 57068-52030 |
NCP125 |
1 | ||
| 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH | ||||
| 57453-52022 |
NCP12#,NSP12# |
1 | ||
| 57453-52021 |
NCP12#,NSP12# |
1 | ||
| 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH | ||||
| 57454-52012 |
NCP12#,NSP12# |
1 | ||
| 57454-52011 |
NCP12#,NSP12# |
1 | ||
| 57455C - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH | ||||
| 57455-52040 |
NCP12#,NSP12# |
1 | ||
| 57456B - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH | ||||
| 57456-52040 |
NCP12#,NSP12# |
1 | ||
| 57473 - REINFORCEMENT, REAR SEAT BACK HINGE | ||||
| 57473-52021 |
NCP125 |
1 | ||
| 57681A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER | ||||
| 57681-52030 |
NCP125 |
1 | ||
| 57682A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER LH | ||||
| 58105-52030 |
NCP125 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-52141 |
NCP125 |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-52011 |
NCP125 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-52010 |
NCP12#,NSP12# |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| C3014-52020 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58026-52010 |
NCP120,125,NSP120 |
1 | ||
| 58027C - PANEL SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 58027-52030 |
NCP125 |
1 | ||
| 58028C - PANEL SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 58028-52020 |
NCP125 |
1 | ||
| 58091A - REINFORCEMENT SET, BODY FITTING | ||||
| 58091-52030 |
NCP125 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52170 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 58111-52280 |
NCP12#,NSP12# |
1 | ||
| 58111-52170 |
NCP12#,NSP12# |
1 | ||
| 58111-52170 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52916 |
NCP12#,NSP12# |
1 | ||
| 58112-52904 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 58112-52904 |
NCP12#,NSP12# |
1 | ||
| 58112-52904 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52914 |
NCP125 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52081 |
NCP125 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-52011 |
NCP12#,NSP12# |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-52011 |
NCP12#,NSP12# |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-52120 |
NCP125 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52030 |
NCP125 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
NCP12#,NSP12# |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-52170 |
NCP125 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52560 |
NCP120,125,NSP120 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-52030 |
NCP125 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52191 |
NCP125 |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-52160 |
NCP12#,NSP12# |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-52180 |
NCP120,125,NSP120 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52060 |
NCP125 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-52020 |
NCP125 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-52070 |
NCP120,125,NSP120 |
1 | ||
| 58357B - BRACKET, ACTUATOR COVER, NO.3 RH | ||||
| 58357-52041 |
NCP125 |
1 | ||
| 58357-52040 |
NCP125 |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-52110 |
NCP120,125,NSP120 |
1 | ||
| 58385-52110 |
NCP120,125,NSP120 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-52060 |
NCP120,125,NSP120 |
1 | ||
| 58386-52060 |
NCP120,125,NSP120 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-52060 |
NCP12#,NSP12# |
1 | ||
| 64151B - RAIL, LOWER BACK, OUTER | ||||
| 64151-52020 |
NCP120,125,NSP120 |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-06951 | ||||
| 90119-10945 | ||||
| 90159-60431 | ||||
| 90189-05054 | ||||
| 91553-80618 | ||||
| 91621-G0816 | ||||
| 91671-80614 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
