NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

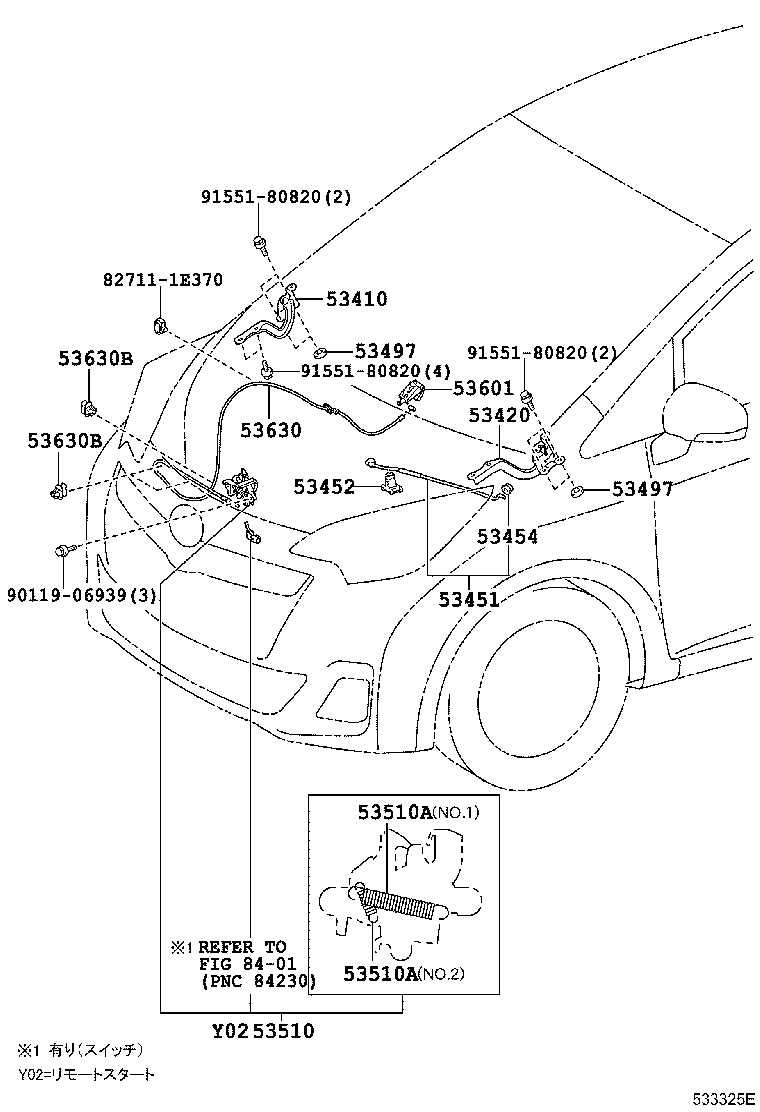

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53497 53497 53510 53510A 53510A 53601 53630 53630B 53630B 827111E370 8401 9011906939 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-52310

NCP12#,NSP12#

 1
53420 - HINGE ASSY, HOOD, LH
53420-52320

NCP12#,NSP12#

 1
53451 - ROD, HOOD SUPPORT
53440-52210

NCP12#,NSP12#

 1
53440-52211

NCP12#,NSP12#

 1
53452 - HOLDER, HOOD STAY
53452-52020

NCP12#,NSP12#

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-12040

NCP12#,NSP12#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

NCP12#,NSP12#

厚さ=0.5

 1
53497-20070

NCP12#,NSP12#

厚さ=2.0

 4
53497-42010

NCP12#,NSP12#

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

NCP12#,NSP12#

厚さ=0.5

 1
53497-20070

NCP12#,NSP12#

厚さ=2.0

 4
53497-42010

NCP12#,NSP12#

厚さ=0.5

 4
53510 - LOCK ASSY, HOOD
53510-52401

NCP12#,NSP12#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-10046

NCP12#,NSP12#

線径=1.0,ｺｲﾙ巻数=15.5,NO.2

 1
90506-16080

NCP12#,NSP12#

線径=1.6,ｺｲﾙ巻数=13,NO.1

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-10046

NCP12#,NSP12#

線径=1.0,ｺｲﾙ巻数=15.5,NO.2

 1
90506-16080

NCP12#,NSP12#

線径=1.6,ｺｲﾙ巻数=13,NO.1

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 1
53601-52010C0

NSP122;NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-52120

NCP12#,NSP12#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NCP12#,NSP12#

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NCP12#,NSP12#

 3
Common parts
82711-1E370
90119-06939
91551-80820
Linked diagrams
8401
