NCP125-CHXGK (2010)
Toyota Ractis

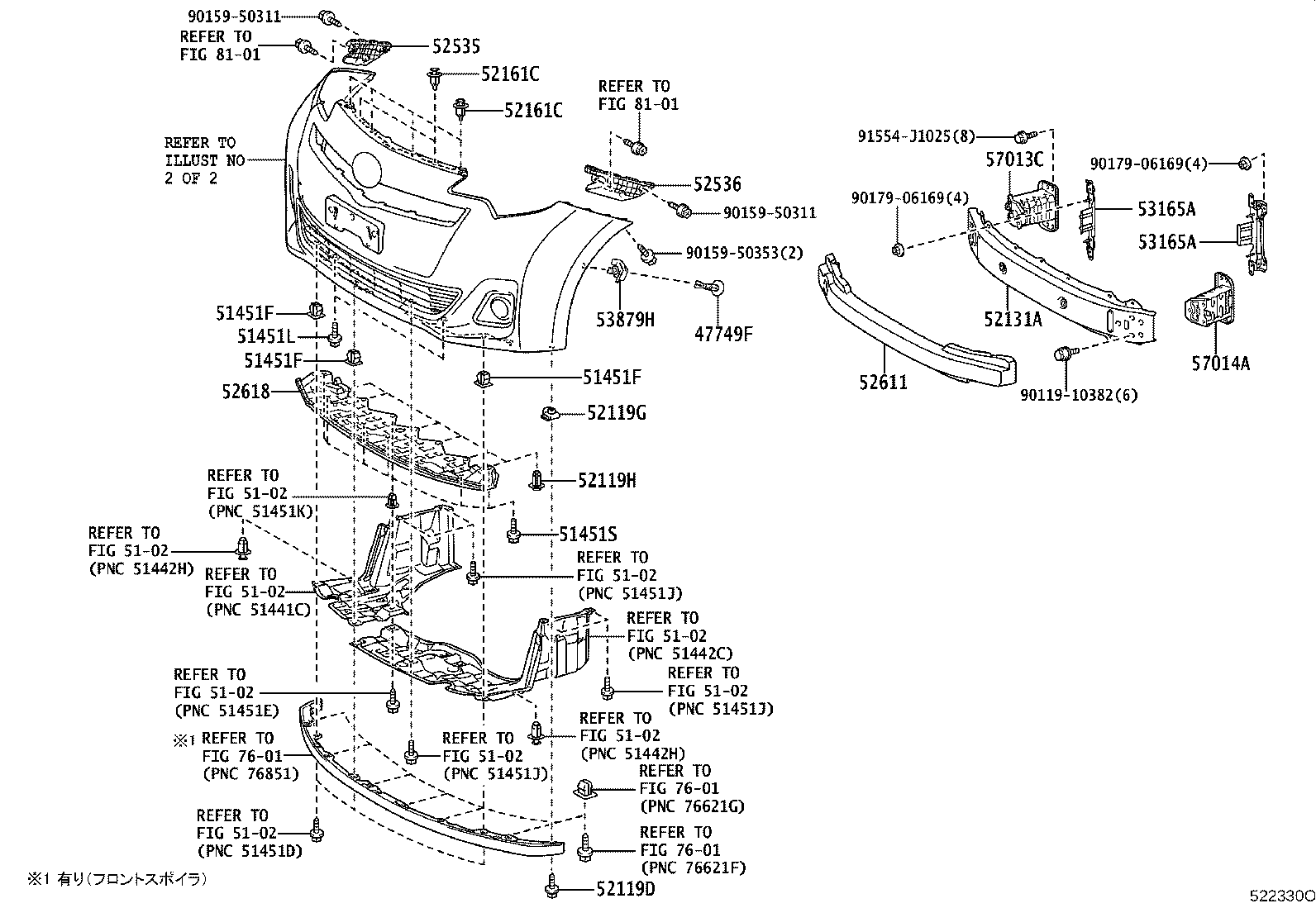

ILLUST NO. 1 OF 2(1011- )G,S,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-58010 |
NCP12#,NSP12# |
2 | ||
| 47749-50090 |
NCP12#,NSP12# |
2 | ||
| 51451F - GROMMET, NO.1 | ||||
| 90189-06237 |
NCP12#,NSP12# |
3 | ||
| 90189-06193 |
NCP12#,NSP12# |
3 | ||
| 51451F - GROMMET, NO.1 | ||||
| 90189-06237 |
NCP12#,NSP12# |
3 | ||
| 90189-06193 |
NCP12#,NSP12# |
3 | ||
| 51451F - GROMMET, NO.1 | ||||
| 90189-06237 |
NCP12#,NSP12# |
3 | ||
| 90189-06193 |
NCP12#,NSP12# |
3 | ||
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
NCP12#,NSP12# |
2 | ||
| 51451S - BOLT, NO.2 | ||||
| 90119-06767 |
NCP12#,NSP12# |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60590 |
NCP125,NSP120 |
2 | ||
| 52119G - CLIP, NO.1 | ||||
| 90467-05114 |
NCP12#,NSP12# |
2 | ||
| 52119H - CLIP, NO.2 | ||||
| 90467-10216 |
NCP12#,NSP12# |
6 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52250 |
NCP12#,NSP12# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NCP12#,NSP12# |
6 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NCP12#,NSP12# |
6 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-52100 |
NCP12#,NSP12# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-52070 |
NCP12#,NSP12# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-52090 |
NCP12#,NSP12# |
1 | ||
| 52611-52091 |
NCP12#,NSP12# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-52040 |
NCP12#,NSP12# |
1 | ||
| 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 | ||||
| 53164-52060 |
NCP12#,NSP12# |
2 | ||
| 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 | ||||
| 53164-52060 |
NCP12#,NSP12# |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
NCP12#,NSP12# |
2 | ||
| 53879-58010 |
NCP12#,NSP12# |
2 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-52010 |
NCP12#,NSP12# |
1 | ||
| 57013-52011 |
NCP12#,NSP12# |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-52010 |
NCP12#,NSP12# |
1 | ||
| Common parts | ||||
| 90119-10382 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90179-06169 | ||||
| 91554-J1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 7601 | ||||
| 8101 | ||||

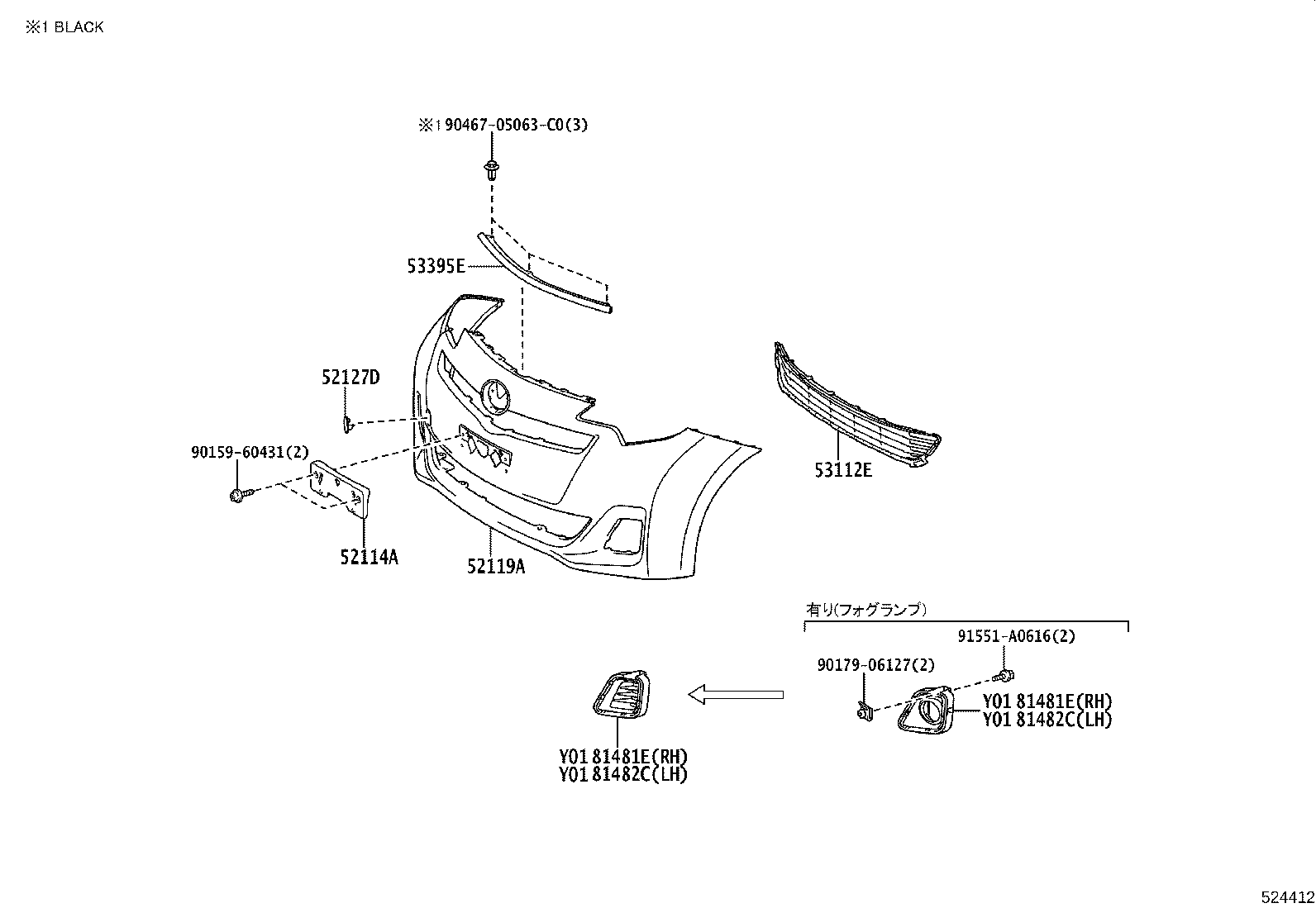

ILLUST NO. 2 OF 2(1011- )G,S,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-52090 |
NCP12#,NSP12#..G,S,X |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-52690C0 |
NCP120,125,NSP120..G,S,X BLACK MC.,209 |
1 | ||
| 52119-52690B0 |
NCP12#,NSP12#..G,S,X SILVER ME.,1F7 |
1 | ||
| 52119-52690E0 |
NCP12#,NSP12#..G,X DK. BROWN M.M.,4U3 |
1 | ||
| 52119-52690D0 |
NCP120,125,NSP120..G,X SUPER RED 5,3P0 |
1 | ||
| 52119-52690J1 |
NCP120..S;NCP125,NSP120..G,X SATIN BLUE M.M.,8V9 |
1 | ||
| 52119-52690A1 |
NCP12#,NSP12#..G,S,X WHITE PEARL CS.,070 |
1 | ||
| 52119-52690K0 |
NCP120..S;NCP125,NSP120..G,X DEEP AMETHYST M.M.,9AH |
1 | ||
| 52119-52690J1 |
NCP12#,NSP12#..G,S,X SATIN BLUE M.M.,8V9 |
1 | ||
| 52119-52690J0 |
NCP12#,NSP12#..G,S,X LT.BLUE M.M.,8S7 |
1 | ||
| 52119-52690K0 |
NCP120,125,NSP120..G,S,X DEEP AMETHYST M.M.,9AH |
1 | ||
| 52119-52690H0 |
NCP12#,NSP12#..G,X TURQUOISE ME.,777 |
1 | ||
| 52119-52500A1 |
NCP120..S;NCP125,NSP120..G,X WHITE PEARL CS.,070 |
1 | ||
| 52119-52500C0 |
NCP120..S;NCP125,NSP120..G,X BLACK MC.,209 |
1 | ||
| 52119-52500D0 |
NCP125,NSP120..G,X SUPER RED 5,3P0 |
1 | ||
| 52119-52500B0 |
NCP120..S;NCP125,NSP120..G,X SILVER ME.,1F7 |
1 | ||
| 52119-52500J1 |
NCP120..S;NCP125,NSP120..G,X LT.BLUE M.M.,8S7 |
1 | ||
| 52119-52690H0 |
NCP125,NSP120..G,X TURQUOISE ME.,777 |
1 | ||
| 52119-52500K0 |
NCP120..S;NCP125,NSP120..G,X DEEP AMETHYST M.M.,9AH |
1 | ||
| 52119-52500J2 |
NCP120..S;NCP125,NSP120..G,X SATIN BLUE M.M.,8V9 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-52370E0 |
NCP12#,NSP12#..G,X DK. BROWN M.M.,4U3 |
1 | ||
| 52127-52370A1 |
NCP12#,NSP12#..G,S,X WHITE PEARL CS.,070 |
1 | ||
| 52127-52370B0 |
NCP12#,NSP12#..G,S,X SILVER ME.,1F7 |
1 | ||
| 52127-52370J1 |
NCP12#,NSP12#..G,S,X SATIN BLUE M.M.,8V9 |
1 | ||
| 52127-52370K0 |
NCP120,125,NSP120..G,S,X DEEP AMETHYST M.M.,9AH |
1 | ||
| 52127-52370H0 |
NCP12#,NSP12#..G,X TURQUOISE ME.,777 |
1 | ||
| 52127-52370J0 |
NCP12#,NSP12#..G,S,X LT.BLUE M.M.,8S7 |
1 | ||
| 52127-52370C0 |
NCP120,125,NSP120..G,S,X BLACK MC.,209 |
1 | ||
| 52127-52370D0 |
NCP120,125,NSP120..G,X SUPER RED 5,3P0 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-52220 |
NCP12#,NSP12#..G,S,X |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-52010 |
NCP12#,NSP12# |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52250 |
NCP12#,NSP12#..G,X |
1 | ||
| 81481-52340 |
NCP12#,NSP12#..G,X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52250 |
NCP12#,NSP12#..G,X |
1 | ||
| 81481-52340 |
NCP12#,NSP12#..G,X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-52270 |
NCP12#,NSP12#..G,X |
1 | ||
| 81482-52280 |
NCP12#,NSP12#..G,X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-52270 |
NCP12#,NSP12#..G,X |
1 | ||
| 81482-52280 |
NCP12#,NSP12#..G,X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90467-05063C0 | ||||
| 91551-A0616 | ||||
