NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

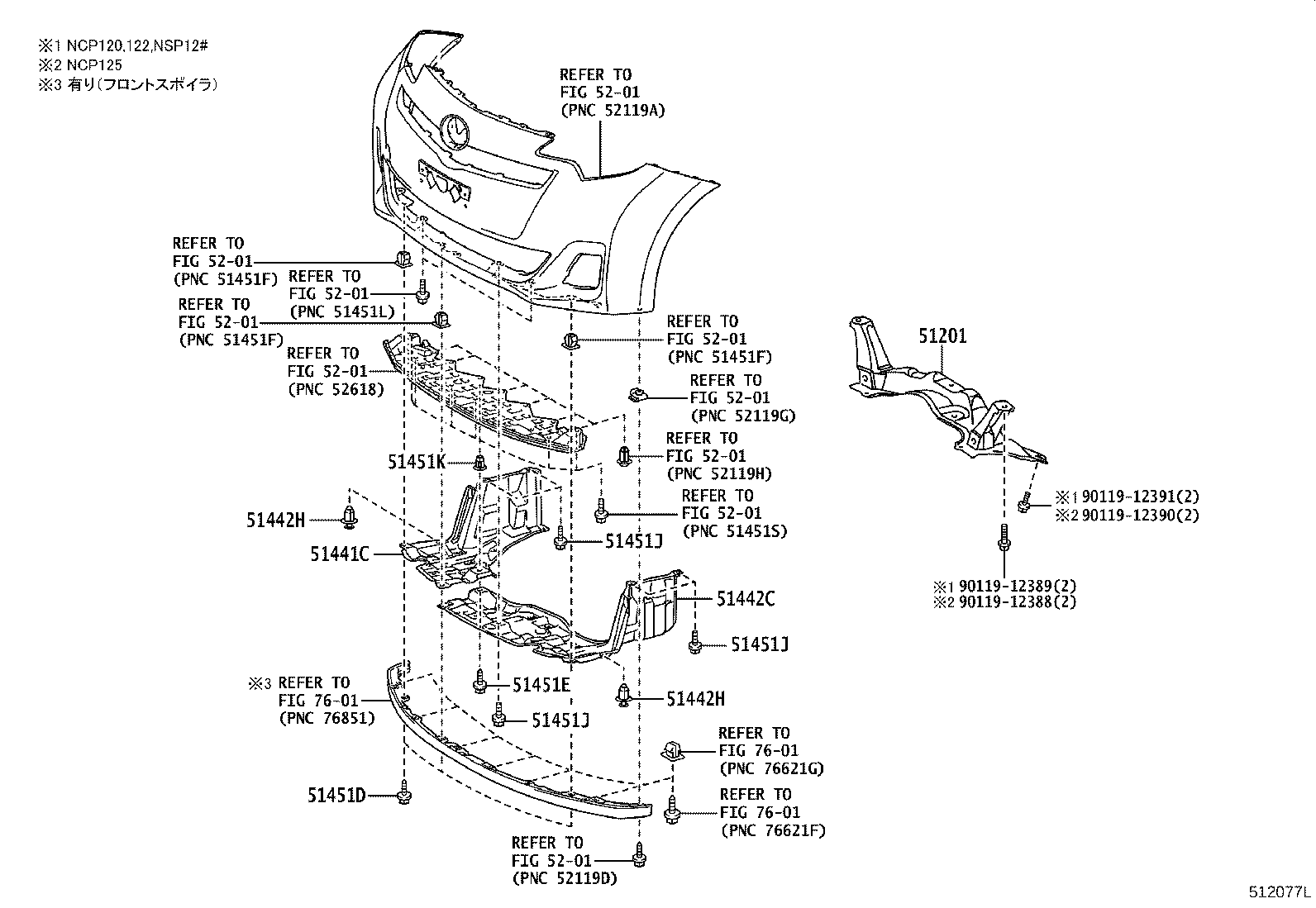

Click highlighted areas on diagram

diagram 51201 51441C 51442C 51442H 51442H 51451D 51451E 51451J 51451J 51451J 51451K 5201 5201 5201 5201 5201 5201 5201 5201 5201 5201 7601 7601 7601 9011912388 9011912389 9011912390 9011912391
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52100

NCP125

 1
51201-52104

NCP125

 1
51201-52106

NCP125

 1
51201-52105

NCP125

 1
51201-52106

NCP125

 1
51201-52107

NCP125

 1
51201-52103

NCP125

 1
51441C - COVER, ENGINE UNDER, RH
51441-52180

NCP12#,NSP12#

 1
51442C - COVER, ENGINE UNDER, LH
51442-52090

NCP12#,NSP12#

 1
51442H - CLIP, ENGINE UNDER COVER, NO.2
90467-10216

NCP12#,NSP12#

 2
51442H - CLIP, ENGINE UNDER COVER, NO.2
90467-10216

NCP12#,NSP12#

 2
51451D - SCREW, NO.1
90159-60383

NCP12#,NSP12#

 3
51451E - SCREW, NO.2
90159-60383

NCP12#,NSP12#

 1
51451J - BOLT, NO.1
90119-06767

NCP12#,NSP12#

 5
51451J - BOLT, NO.1
90119-06767

NCP12#,NSP12#

 5
51451J - BOLT, NO.1
90119-06767

NCP12#,NSP12#

 5
51451K - GROMMET, SCREW, NO.1
90189-06076

NCP12#,NSP12#

 1
Common parts
90119-12388
90119-12389
90119-12390
90119-12391
Linked diagrams
5201
7601
