NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

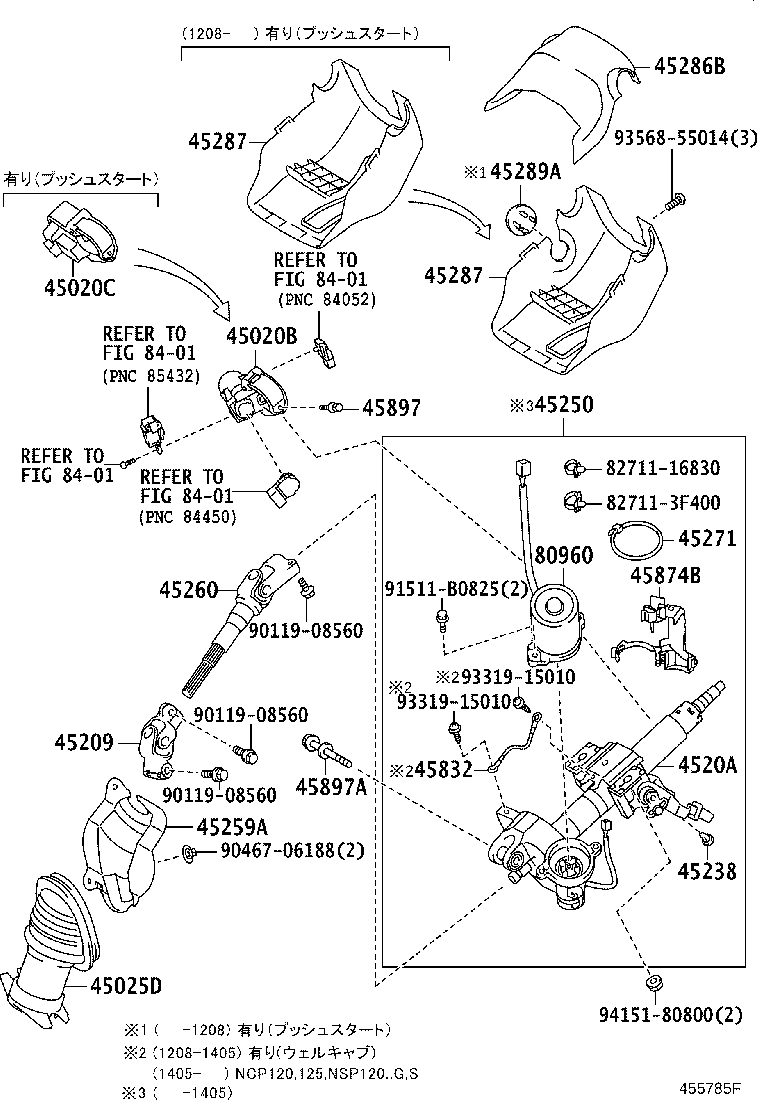

Click highlighted areas on diagram

diagram 45020B 45020C 45025D 45209 4520A 45238 45250 45259A 45260 45271 45286B 45287 45287 45289A 45832 45874B 45897 45897A 80960 8271116830 827113F400 8401 8401 8401 8401 9011908560 9011908560 9011908560 9046706188 91511B0825 9331915010 9331915010 9356855014 9415180800
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-52100

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
45020C - ACTUATOR ASSY, STEERING LOCK(W/ECU)
45020-52170

NCP120,125,NSP120..G,S

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52160

NCP125

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52050

NCP12#,NSP12#

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-52200

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)

 1
4520A-52130

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
4520A-52141

NCP120,125,NSP120..G,S

 1
4520A-52202

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)

 1
4520A-52131

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
4520A-52201

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)

 1
4520A-52140

NCP120,125,NSP120..G,S

 1
4520A-52200

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)

 1
4520A-52142

NCP120,125,NSP120..G,S

 1
4520A-52202

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)

 1
4520A-52201

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)

 1
4520A-52132

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
4520A-52242

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)

 1
4520A-52242

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

NCP12#,NSP12#

 1
45250 - COLUMN ASSY, STEERING
45250-52802

NCP120,125,NSP120..G,S

 1
45250-52863

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)

 1
45250-52863

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)

 1
45250-52794

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
45250-52793

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
45250-52792

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
45250-52864

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)

 1
45250-52862

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)

 1
45250-52864

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)

 1
45250-52803

NCP120,125,NSP120..G,S

 1
45250-52862

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)

 1
45250-52804

NCP120,125,NSP120..G,S

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-52010

NCP12#,NSP12#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52201

NCP12#,NSP12#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52040

NCP12#,NSP12#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-52160C0

NCP120,125,NSP120..G

BLACK,TRIM2#,4#

 1
45286-52160C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 1
45286-12560C0

NCP120,125,NSP120..G

BLACK,TRIM2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-52190C0

NCP120,125,NSP120..G

BLACK,TRIM2#,4#

 1
45287-52190C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 1
45287-12640C0

NCP120,125,NSP120..G

BLACK,TRIM2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-52190C0

NCP120,125,NSP120..G

BLACK,TRIM2#,4#

 1
45287-52190C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 1
45287-12640C0

NCP120,125,NSP120..G

BLACK,TRIM2#,4#

 1
45289A - SUPPORT, STEERING COLUMN COVER
45289-52010C0

NCP120,125,NSP120..G

BLACK,TRIM2#,4#

 1
45832 - CABLE, TILT STEERING SUPPORT BOND
45832-52010

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)

 1
45832-52010

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-52040

NCP12#,NSP12#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NCP12#,NSP12#

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

NCP12#,NSP12#

 1
90119-10980

NCP12#,NSP12#

 1
80960 - MOTOR ASSY, POWER STEERING
80960-52100

NCP12#,NSP12#..G,S,X

 1
80960-52070

NCP12#,NSP12#

 1
80960-52110

NCP12#,NSP12#

 1
80960-52080

NCP12#,NSP12#

 1
Common parts
82711-16830
82711-3F400
90119-08560
90467-06188
91511-B0825
93319-15010
93568-55014
94151-80800
Linked diagrams
8401
