NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

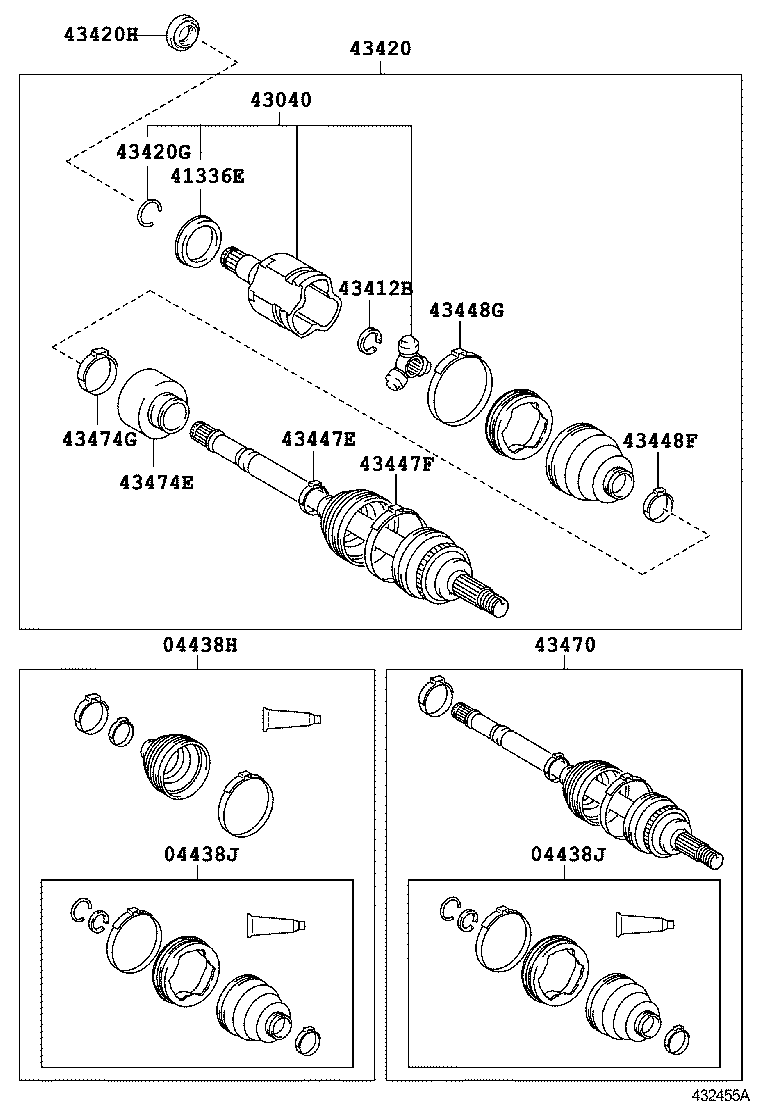

ILLUST NO. 2 OF 2(1011- )NCP125

Click highlighted areas on diagram

LH

diagram 04438H 04438J 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-52860

NCP125

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12A00

NCP125

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12A00

NCP125

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060

NCP125

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-12120

NCP125

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070

NCP125

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-52271

NCP125

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005

NCP125

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35054

NCP125

 1
90311-35068

NCP125

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52260

NCP12#,NSP12#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52250

NCP12#,NSP12#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230

NCP125

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180

NCP125

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-59785

NCP125

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-12200

NCP125

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NCP12#

 2

(1011- )NCP125

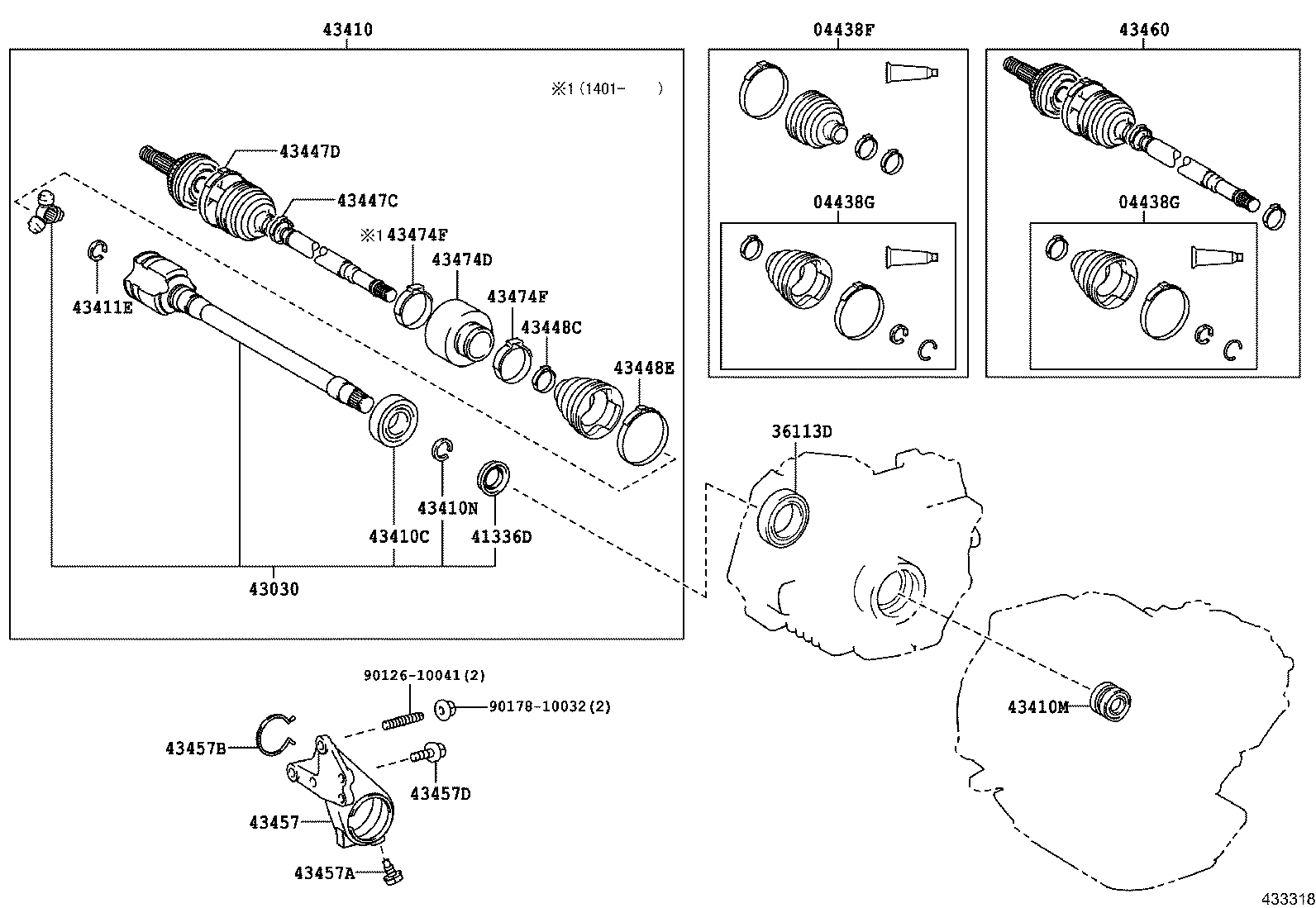

Click highlighted areas on diagram

RH

diagram 04438F 04438G 04438G 36113D 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43460 43474D 43474F 43474F 9012610041 9017810032
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-12750

NCP125

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12410

NCP125

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12410

NCP125

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

NCP125

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-52020

NCP125

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-12131

NCP125

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-52260

NCP125

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

NCP125

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003

NCP125

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

NCP125

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070

NCP125

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52260

NCP12#,NSP12#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52250

NCP12#,NSP12#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230

NCP125

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180

NCP125

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-52010

NCP125

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

NCP125

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

NCP125

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

NCP125

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-59666

NCP125

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-12160

NCP125

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NCP125,NSP12#

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NCP125,NSP12#

 1
Common parts
90126-10041
90178-10032
