NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )NCP12#

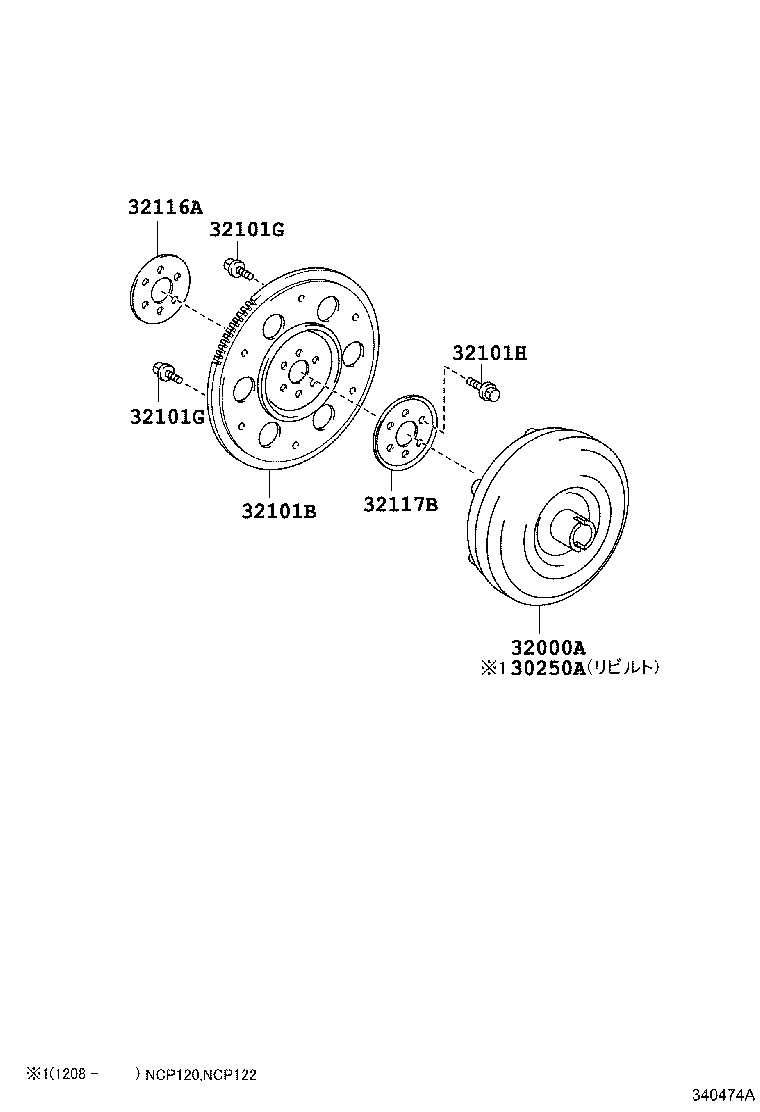

Click highlighted areas on diagram

K310,K310F

diagram 30250A 32000A 32101B 32101G 32101G 32101H 32116A 32117B
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-12410

NCP125

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-52021

NCP12#

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

NCP12#,NSP12#

*8−1.25PX12−8,ｲｴﾛｰ

 5
90109-08113

NCP12#,NSP12#

*8−1.25PX12−8.4,ﾌﾞﾗｯｸ

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

NCP12#,NSP12#

*8−1.25PX12−8,ｲｴﾛｰ

 5
90109-08113

NCP12#,NSP12#

*8−1.25PX12−8.4,ﾌﾞﾗｯｸ

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

NCP12#

 6
32116A - SPACER, DRIVE PLATE, FRONT
32116-52030

NCP12#

 1
32117B - SPACER, DRIVE PLATE, REAR
32117-52030

NCP12#

 1
