NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

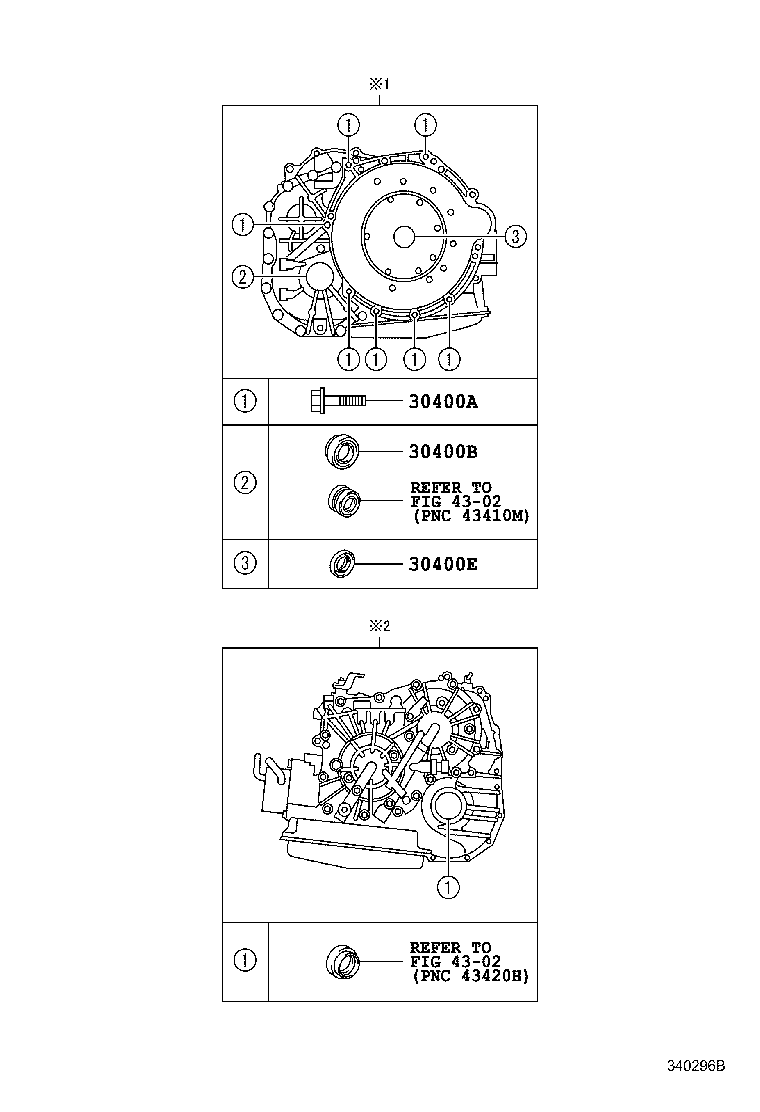

ILLUST NO. 3 OF 3(1011- )NCP125

Click highlighted areas on diagram

K310F

diagram 30400A 30400B 30400E 4302 4302
Part # Description Qty Price
30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91612-61045

NCP12#

 7
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90311-49002

NCP125

NO.1

 1
90311-49002

NCP125

 1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45025

NCP12#

 1
90311-45027

NCP12#

 1
Linked diagrams
4302

ILLUST NO. 1 OF 3(1011- )

Click highlighted areas on diagram

K310,K310F,K312,K411

diagram 30140
Part # Description Qty Price
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-52251

NCP125

K310F

 1
30140-52250

NCP125

K310F

 1

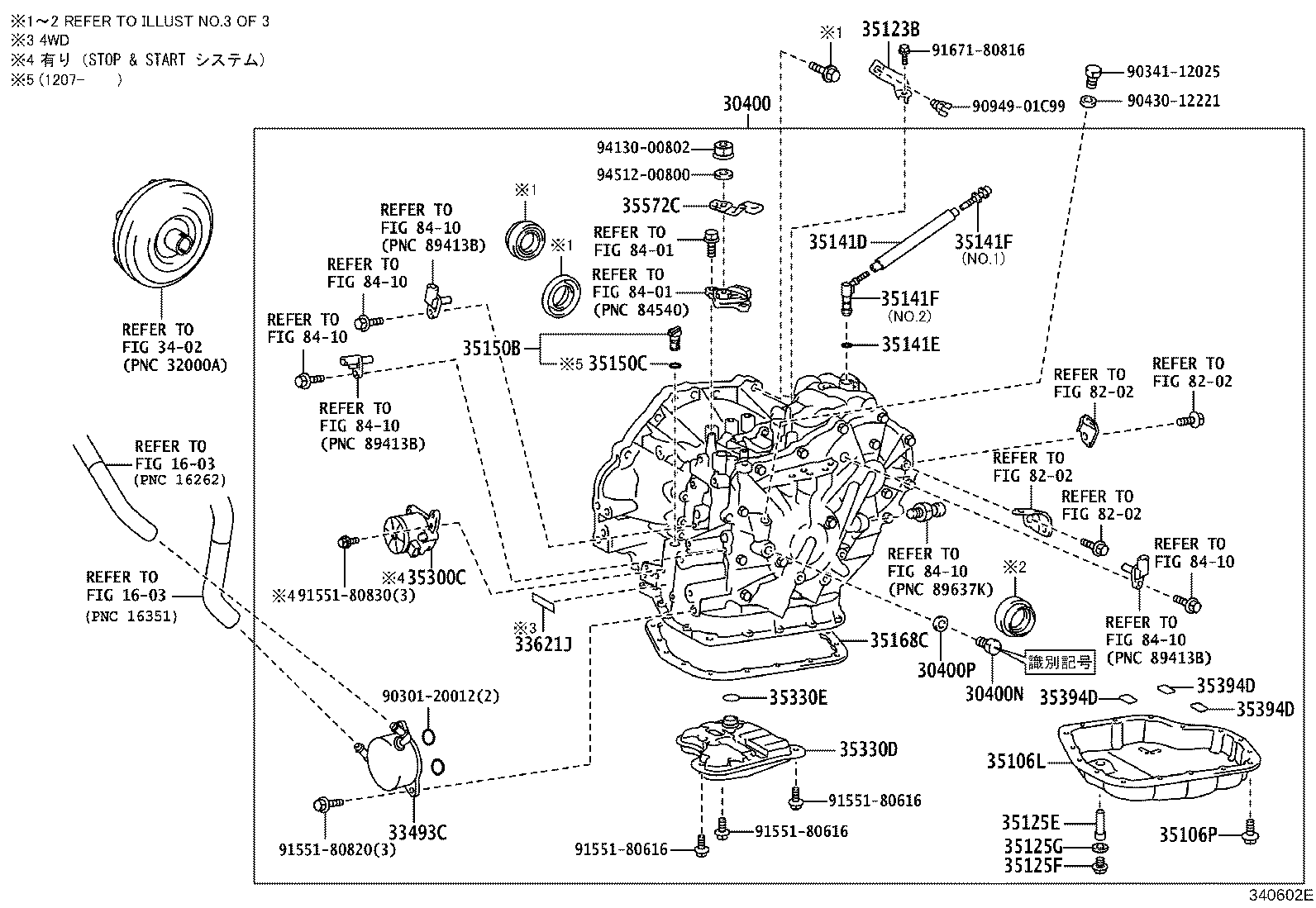

ILLUST NO. 2 OF 3(1011-1206)NCP120,122 ; (1011- )NCP125

Click highlighted areas on diagram

K310,K310F

diagram 1603 1603 30400 30400N 30400P 33493C 33621J 3402 35106L 35106P 35123B 35125E 35125F 35125G 35141D 35141E 35141F 35141F 35150B 35150C 35168C 35300C 35330D 35330E 35394D 35394D 35394D 35572C 8202 8202 8202 8202 8401 8401 8410 8410 8410 8410 8410 8410 8410 9030120012 9034112025 9043012221 9094901C99 9155180616 9155180616 9155180616 9155180820 9155180830 9167180816 9413000802 9451200800
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-52250

NCP125

K310F

 1
30400-52251

NCP125

K310F

 1
30400N - PLUG, REFILL(CVT)
90341-18061

NCP125

識別記号=TC

 1
90341-18077

NCP125

識別記号=FE

 1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008

NCP12#,NSP12#

 1
33493C - COOLER, TRANSMISSION OIL
33493-52040

NCP125

 1
33621J - LABEL, TRANSAXLE OIL INFORMATION
33621-12150

NCP125..G,X

 1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-12130

NCP125

 1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173

NCP12#

 16
35123B - SKIRT,TRANSMISSION BREATHER
35123-52030

NCP12#

 1
35125E - TUBE, OVERFLOW(CVT)
35125-12400

NCP125

 1
35125F - PLUG, OVERFLOW(CVT)
90341-12034

NCP12#,NSP12#

 1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008

NCP12#,NSP12#

 1
35141D - HOSE(FOR BREATHER PLUG)
35121-52020

NCP12#

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005

NCP12#

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

NCP12#,NSP12#

NO.1

 1
90930-03191

NCP12#

NO.2

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

NCP12#,NSP12#

NO.1

 1
90930-03191

NCP12#

NO.2

 1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010

NCP125

 1
35150-48010

NCP125

 1
35150C - RING, O (FOR TRANSMISSION CASE PLUG)
90301-09173

NCP125

 1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-12090

NCP12#

 1
35168-12091

NCP12#

 1
35330D - STRAINER ASSY, OIL
35330-0W060

NCP125

 1
35330E - RING, O (FOR OIL STRAINER)
90301-22014

NCP12#,NSP12#

 1
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

NCP12#

 3
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

NCP12#

 3
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

NCP12#

 3
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-12160

NCP125

 1
Common parts
90301-20012
90341-12025
90430-12221
90949-01C99
91551-80616
91551-80820
91551-80830
91671-80816
94130-00802
94512-00800
