NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011-1208)1NZFE ; (1208- )1NZFE..NCP125

Click highlighted areas on diagram

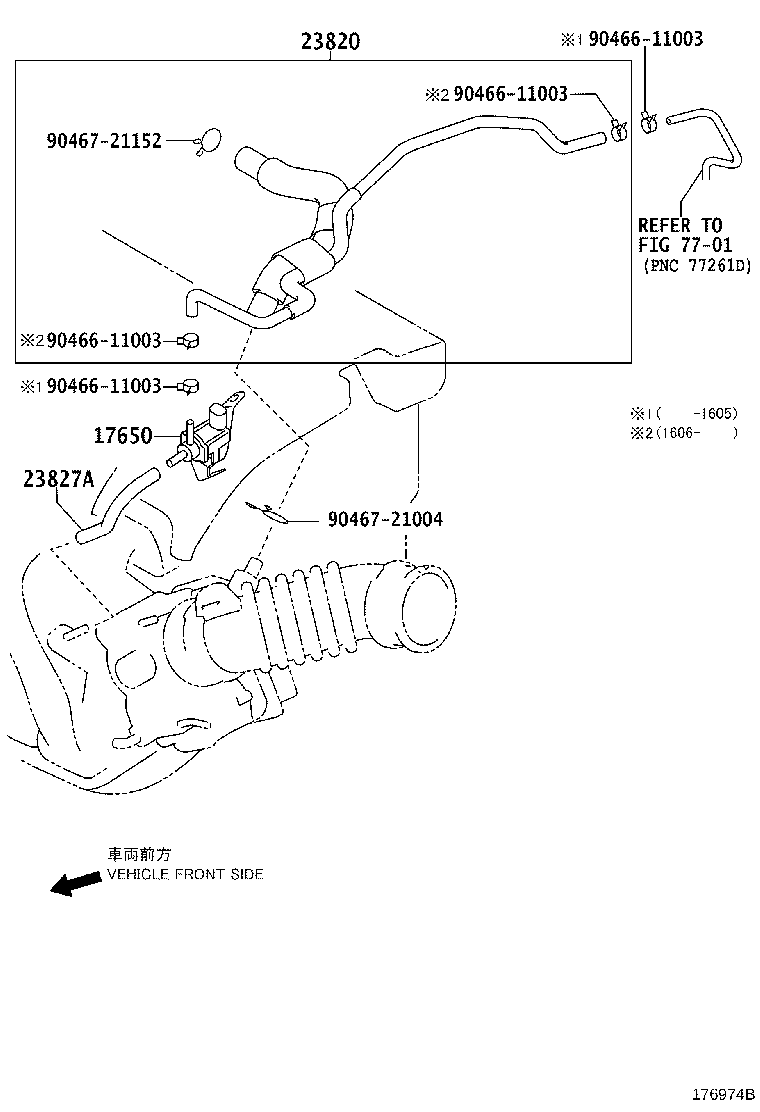

diagram 17650 23820 23827A 7701 9046611003 9046611003 9046611003 9046611003 9046721004 9046721152
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-21070

1NZFE..NCP12#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-21180

1NZFE..NCP125

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-21150

1NZFE..NCP12#

 1
Common parts
90466-11003
90467-21004
90467-21152
Linked diagrams
7701
