NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )1NZFE..NCP125

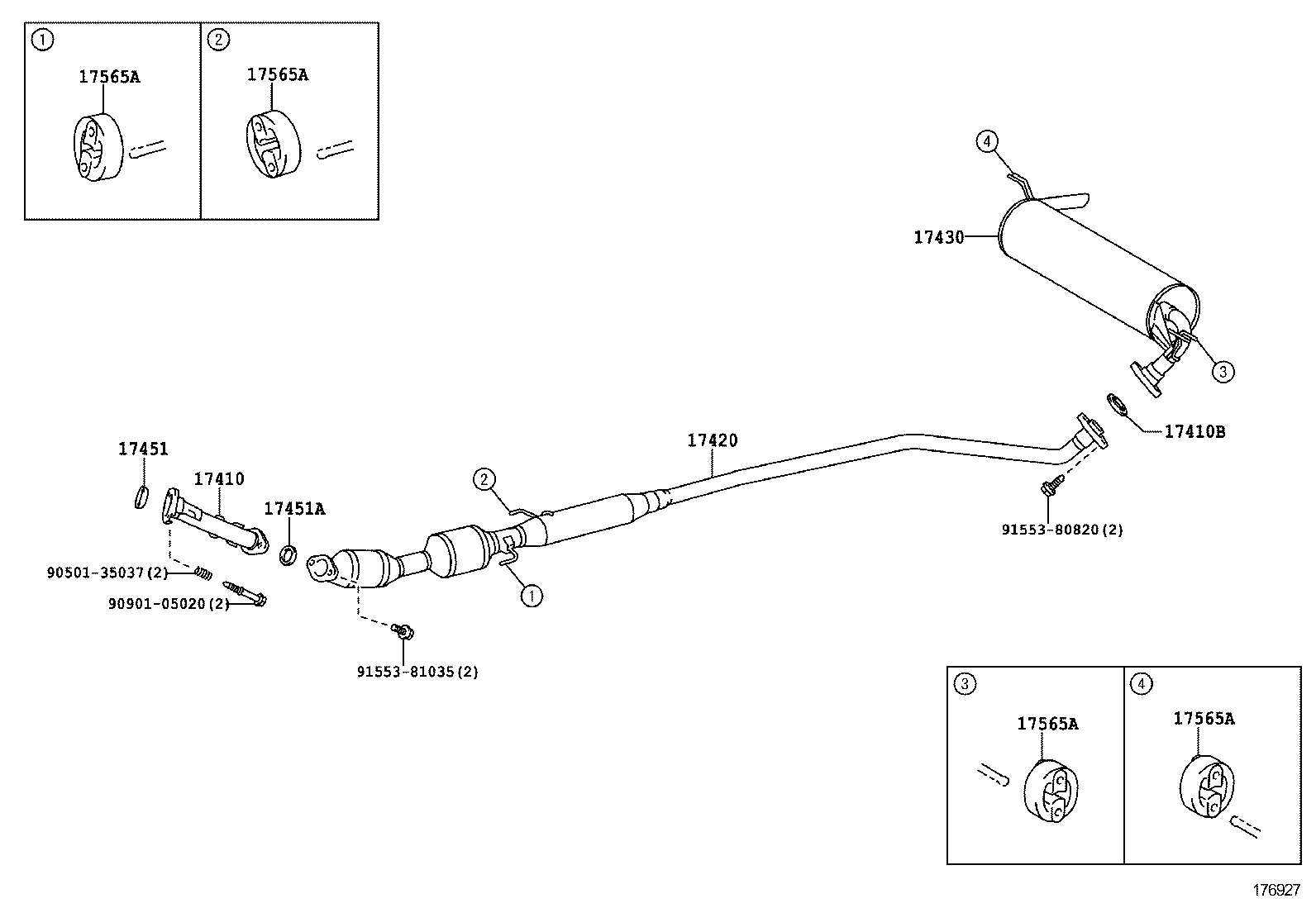

Click highlighted areas on diagram

diagram 17410 17410B 17420 17430 17451 17451A 17565A 17565A 17565A 17565A 9050135037 9090105020 9155380820 9155381035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21840

1NZFE..NCP125

 1
17410B - GASKET, EXHAUST PIPE
90917-06039

1NZFE..NCP125

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-21240

1NZFE..NCP125

 1
17420-21240

1NZFE..NCP125

 1
17420-21240

1NZFE..NCP125

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21800

1NZFE..NCP125

 1
17430-21800

1NZFE..NCP125

 1
17430-21800

1NZFE..NCP125

 1
17451 - GASKET, EXHAUST PIPE
17451-21070

1N#..NCP12#,NSP12#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06089

1NZFE..NCP125

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
Common parts
90501-35037
90901-05020
91553-80820
91553-81035
