NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

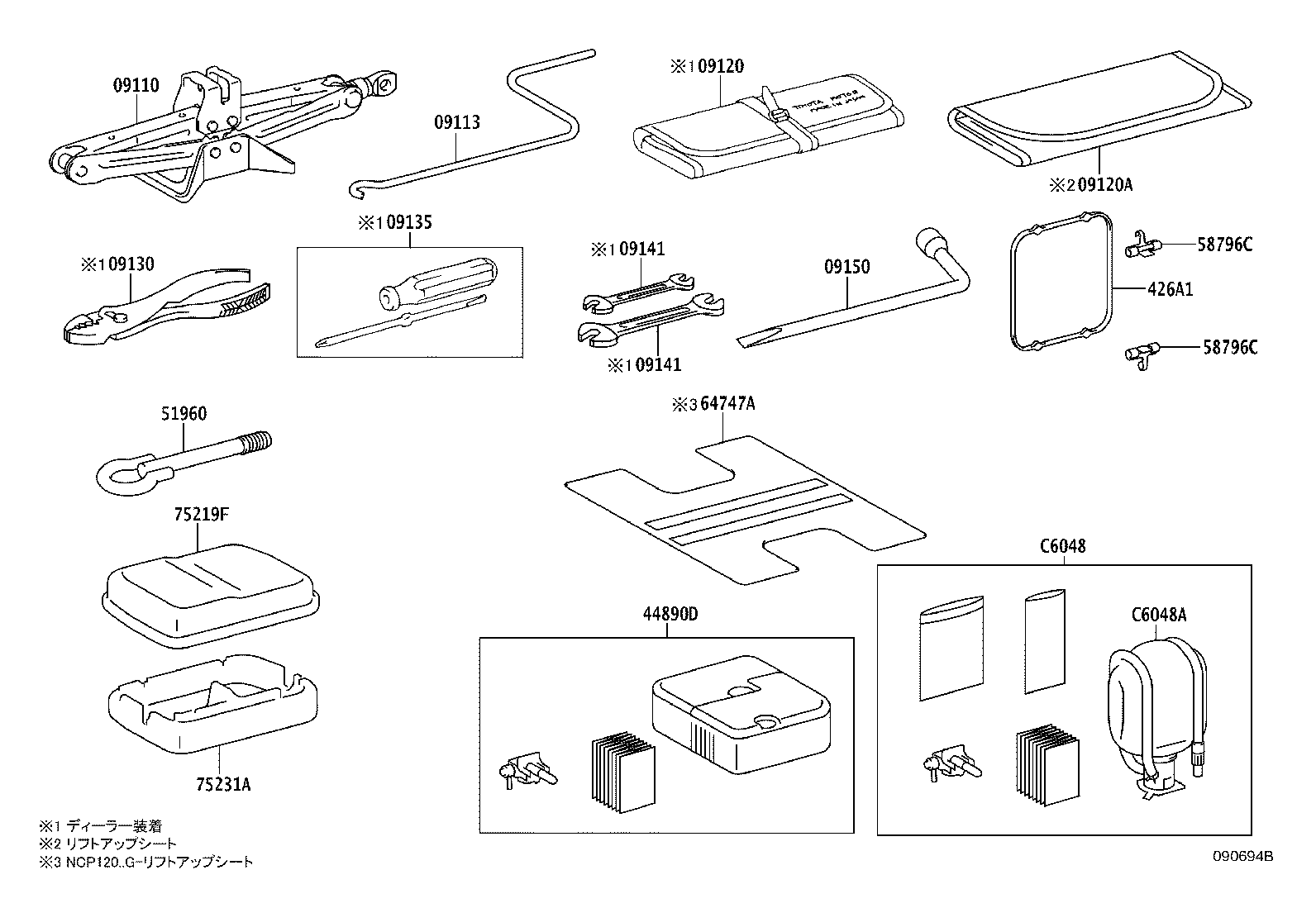

Click highlighted areas on diagram

diagram 09110 09113 09120 09120A 09130 09135 09141 09141 09150 426A1 44890D 51960 58796C 58796C 64747A 75219F 75231A C6048 C6048A
Part # Description Qty Price
09110 - JACK ASSY
09111-52060

NCP12#,NSP12#

 1
09111-12230

NCP12#,NSP12#

 1
09113 - HANDLE, JACK
09113-20050

NCP12#,NSP12#

 1
09113-52040

NCP12#,NSP12#

 1
09120 - BAG, TOOL
09120-16030

NCP12#,NSP12#

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ

 1
09120A - CASE, TOOL
09120-52040

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)

 1
09120-52040

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
09130 - PLIERS
99913-11500

NCP12#,NSP12#

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ

 1
09135 - DRIVER, SCREW
99915-10700

NCP12#,NSP12#

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ

 1
09141 - SPANNER
99914-11214

NCP12#,NSP12#

12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ

 1
99914-10810

NCP12#,NSP12#

8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ

 1
09141 - SPANNER
99914-11214

NCP12#,NSP12#

12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ

 1
99914-10810

NCP12#,NSP12#

8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

NCP12#,NSP12#

 1
426A1 - BAND, TIRE REPAIR KIT
426A1-52010

NCP12#,NSP12#

 1
44890D - COMPRESSOR ASSY, AIR
44890-52021

NCP12#,NSP12#

 1
44890-52020

NCP12#,NSP12#

 1
51960 - HOOK ASSY, FRONT
51960-47020

NCP12#,NSP12#

 1
58796C - HOOK, JACK CLAMP
58796-33030

NCP12#,NSP12#

 2
58796C - HOOK, JACK CLAMP
58796-33030

NCP12#,NSP12#

 2
75219F - COVER, TOOL BOX
75219-52010C0

NCP120,122..G;NCP125,NSP120..G,X

BLACK,TRIM2#,4#

 1
75231A - BOX, TOOL BAG
75231-52010

NCP12#,NSP12#

 1
C6048 - REPAIR SET, TIRE
42683-52021

NCP12#,NSP12#

 1
C6048A - SEALANT, REPAIR TIRE
C6048-52021

NCP12#,NSP12#

 1
C6048-52020

NCP12#,NSP12#

 1
