NCP125-CHXGK (2014)
Toyota Ractis
Production
May 2014
-
Jul 2016
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

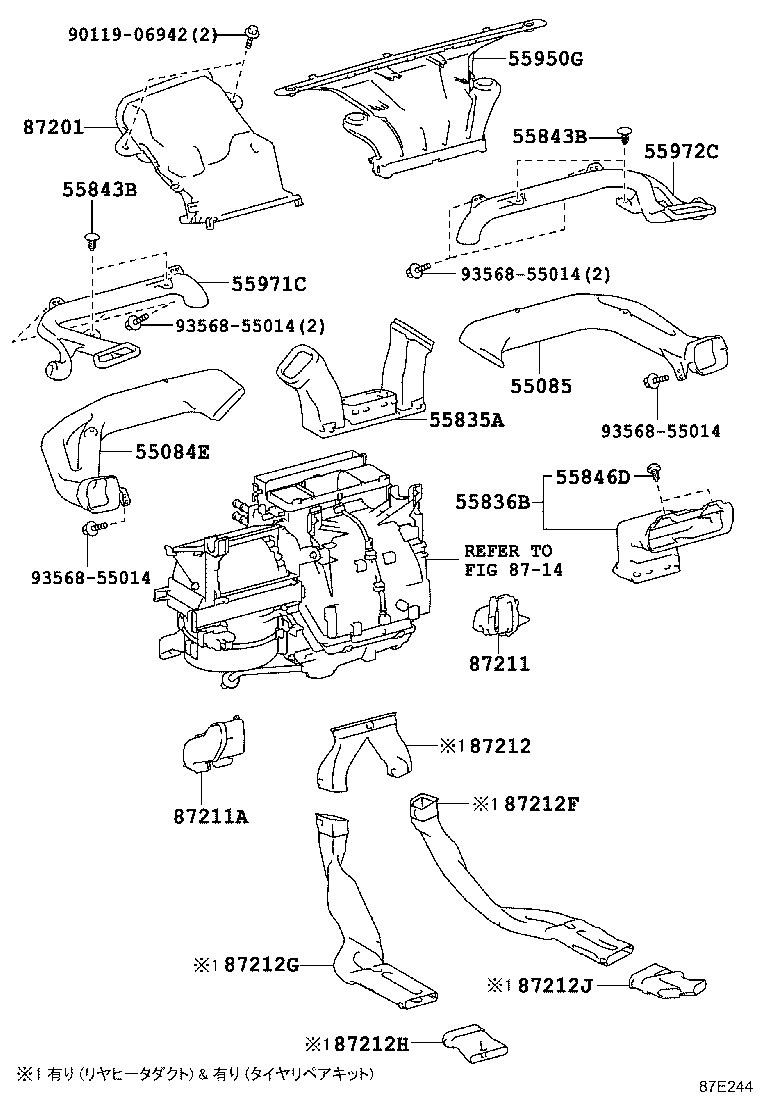

ILLUST NO. 2 OF 3(1405- )
Click highlighted areas on diagram
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-52030 |
NCP12#,NSP12# |
1 | ||
| 55084-52030 |
NCP12# |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55086-52010 |
NCP12# |
1 | ||
| 55086-52010 |
NCP12#,NSP12# |
1 | ||
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-52060 |
NCP12#,NSP12# |
1 | ||
| 55835-52060 |
NCP12# |
1 | ||
| 55836B - DUCT, HEATER TO RESISTER, CENTER, NO.2 | ||||
| 55836-52080 |
NCP12#,NSP12# |
1 | ||
| 55836-52080 |
NCP12# |
1 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161B0 |
NCP12#,NSP12# DK.GRAY |
4 | ||
| 90467-05161B0 |
NCP12#,NSP12# DK.GRAY |
4 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161B0 |
NCP12#,NSP12# DK.GRAY |
4 | ||
| 90467-05161B0 |
NCP12#,NSP12# DK.GRAY |
4 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161B0 |
NCP12#,NSP12# DK.GRAY |
2 | ||
| 90467-05161B0 |
NCP12#,NSP12# DK.GRAY |
2 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52160 |
NCP12#,NSP12# |
1 | ||
| 55950-52160 |
NCP12#,NSP12# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-52050 |
NCP12#,NSP12# |
1 | ||
| 55971-52050 |
NCP12#,NSP12# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-52050 |
NCP12#,NSP12# |
1 | ||
| 55972-52050 |
NCP12#,NSP12# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-52110 |
NCP12#,NSP12# |
1 | ||
| 87201-52110 |
NCP12#,NSP12# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52090 |
NCP12#,NSP12# |
1 | ||
| 87211-52090 |
NCP12#,NSP12# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52050 |
NCP12#,NSP12# |
1 | ||
| 87211-52050 |
NCP12#,NSP12# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-52050 |
NCP125 |
1 | ||
| 87215-52050 |
NCP125 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-52100 |
NCP125 |
1 | ||
| 87212-52100 |
NCP125 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-52070 |
NCP125 |
1 | ||
| 87213-52070 |
NCP125 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87216-52040 |
NCP125 |
1 | ||
| 87216-52040 |
NCP125 |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87217-52030 |
NCP125 |
1 | ||
| 87217-52030 |
NCP125 |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
