NCP125-CHXGK (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

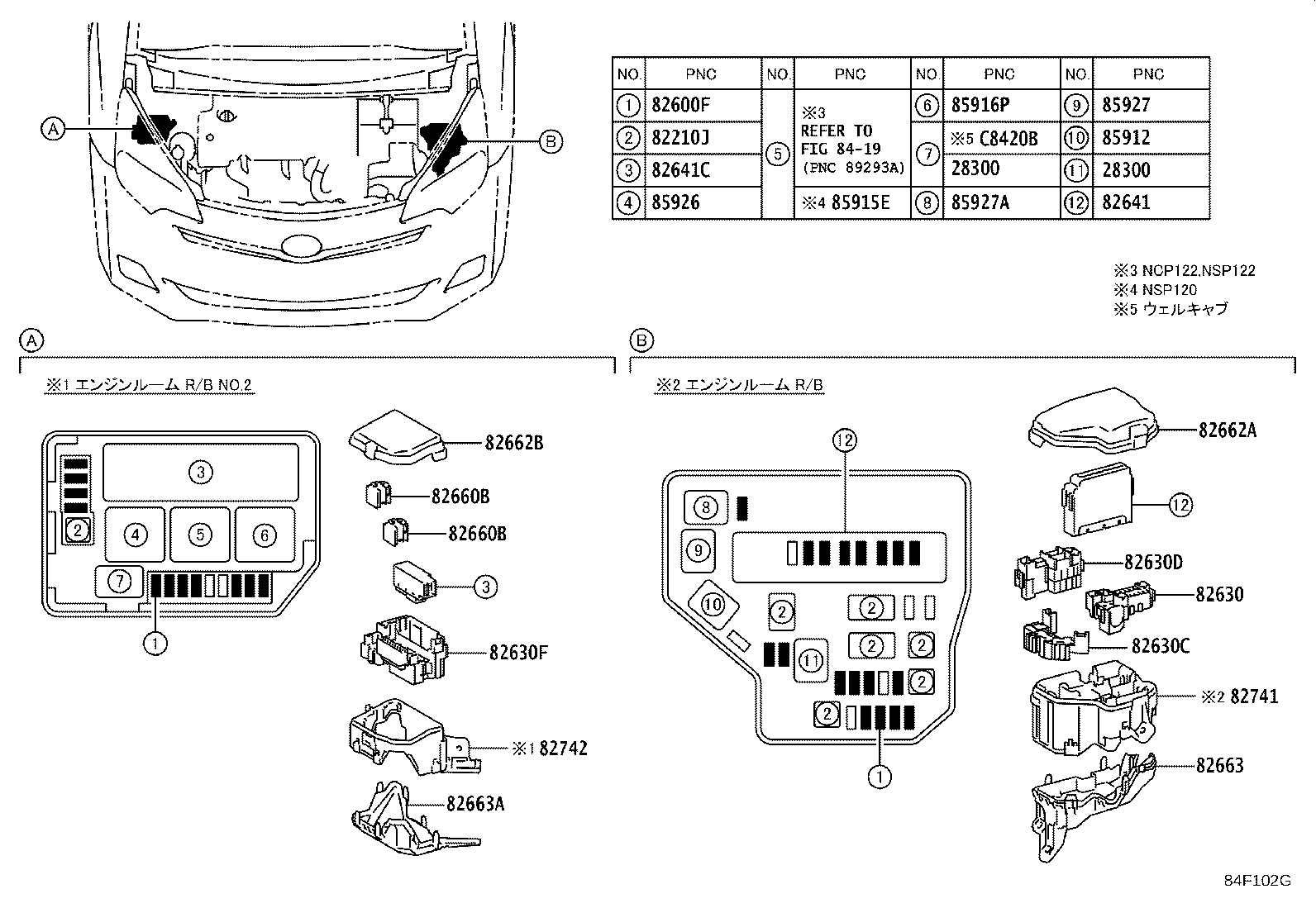

ILLUST NO. 3 OF 8(1405- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ

diagram 28300 28300 82210J 82600F 82630 82630C 82630D 82630F 82641 82641C 82660B 82660B 82662A 82662B 82663 82663A 82741 82742 8419 85912 85915E 85916P 85926 85927 85927A C8420B
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-28010

1N#..NCP12#,NSP12#..G,S,X

 1
28300-21020

1N#..NCP12#,NSP12#

 1
28300 - RELAY ASSY, STARTER
28300-28010

1N#..NCP12#,NSP12#..G,S,X

 1
28300-21020

1N#..NCP12#,NSP12#

 1
82210J - FUSIBLE LINK
90982-08294

NCP12#,NSP12#

40A,ﾒｽ端子,緑

 1
90982-08305

NCP122,125;NCP120,NSP122..LEPIC,X

80A,ﾒｽ端子,黒

 1
90982-08300

NCP12#,NSP12#

50A−30A−30A,ﾒｽ端子,赤

 1
90982-08306

NCP12#,NSP12#

30A,ﾒｽ端子,桃

 1
90982-08296

NCP12#,NSP12#

50A,ﾒｽ端子,赤

 1
90982-08294

NCP12#,NSP12#

40A,ﾒｽ端子,緑

 1
90982-08296

NCP12#,NSP12#

50A,ﾒｽ端子,赤

 1
90982-08300

NCP12#,NSP12#

50A−30A−30A,ﾒｽ端子,赤

 1
90982-08306

NCP12#,NSP12#

30A,ﾒｽ端子,桃

 1
90982-08302

NSP122;NCP122,125..G

50A−30A−50A,ﾒｽ端子,黒

 1
90982-08305

NCP122,125,NSP120;NCP120,NSP122..S,X

80A,ﾒｽ端子,黒

 1
82600F - FUSE, FUSE BLOCK
90982-09022

NCP12#,NSP12#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90982-09021

NCP12#,NSP12#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90982-09024

NCP12#,NSP12#

25A,ﾐﾆ ﾋｭｰｽﾞ

 1
90982-09020

NCP12#,NSP12#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90982-09019

NCP12#,NSP12#

5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色

 1
90982-09025

NCP12#,NSP12#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
90982-09020

NCP12#,NSP12#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90982-09023

NCP12#,NSP12#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09025

NCP12#,NSP12#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
90982-09019

NCP12#,NSP12#

5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色

 1
90982-09022

NCP12#,NSP12#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90982-09024

NCP12#,NSP12#

25A,ﾐﾆ ﾋｭｰｽﾞ

 1
90982-09021

NCP12#,NSP12#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90982-09023

NCP12#,NSP12#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
82630 - HOLDER ASSY, FUSE
82631-52010

NCP12#,NSP12#

 1
82631-52010

NCP12#,NSP12#

 1
82630C - HOLDER ASSY, FUSE
82631-52020

NCP12#,NSP12#

 1
82631-52020

NCP12#,NSP12#

 1
82630D - HOLDER, FUSE
82631-52030

NCP12#,NSP12#

 1
82631-52030

NCP12#,NSP12#

 1
82630F - HOLDER, FUSE
82631-52040

NCP120,125,NSP120

 1
82631-52040

NCP120,125,NSP120

 1
82641 - RELAY, INTEGRATION NO.1
82641-52050

NCP125

 1
82641-52040

NCP12#,NSP12#

 1
82641C - RELAY, INTEGRATION NO.2
82641-52060

NCP12#,NSP12#

寒冷地仕様

 1
82641-52060

NCP12#,NSP12#

寒冷地仕様

 1
82660B - BLOCK ASSY, RELAY
82660-0H070

NCP12#,NSP12#

 1
82660-0H070

NCP12#,NSP12#

 1
82660B - BLOCK ASSY, RELAY
82660-0H070

NCP12#,NSP12#

 1
82660-0H070

NCP12#,NSP12#

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-52481

NCP120,125,NSP120

 1
82662-52480

NCP120,125,NSP120

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-52660

NCP120,125,NSP120

 1
82662-52700

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
82662-52870

NCP120,125,NSP120

ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ)

 1
82662-52880

NCP120,125,NSP120

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-52080

NCP12#,NSP12#

 1
82663-52080

NCP12#,NSP12#

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-52090

NCP12#,NSP12#

 1
82663-52090

NCP12#,NSP12#

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-52070

NCP125

 1
82741-52070

NCP125,NSP12#

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-52080

NCP12#,NSP12#

 1
82741-52080

NCP12#,NSP12#

 1
85912 - RELAY, DEFOGGER
90987-02027

NCP12#,NSP12#

 1
90987-02027

NCP12#,NSP12#

 1
85916P - RELAY, HEADLAMP
90987-02025

NCP12#,NSP12#

 1
90987-02025

NCP12#,NSP12#

 1
85926 - RELAY, HEADLAMP DIMMER
90987-04010

NCP12#,NSP12#

 1
90987-04010

NCP12#,NSP12#

 1
85927 - RELAY, COOLING FAN
90987-02027

NCP12#,NSP12#

 1
90987-02027

NCP12#,NSP12#

 1
85927A - RELAY, COOLING FAN, NO.2
90987-04004

NCP12#,NSP12#

 1
90987-04004

NCP12#,NSP12#

 1
Linked diagrams
8419
