NCP125-CHXGK (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1405- )

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52E10

NCP125..G,X

 1
44050-52M11

NCP125

 1
44050-52M12

NCP125

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP12#,NSP12#

 3
44546-12110

NCP12#,NSP12#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP12#,NSP12#

 3
44546-12110

NCP12#,NSP12#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP12#,NSP12#

 3
44546-12110

NCP12#,NSP12#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52230

NCP12#,NSP12#

 1
44590-52180

NCP12#,NSP12#

 1
Common parts
44521-12050
90119-06844
91631-60825

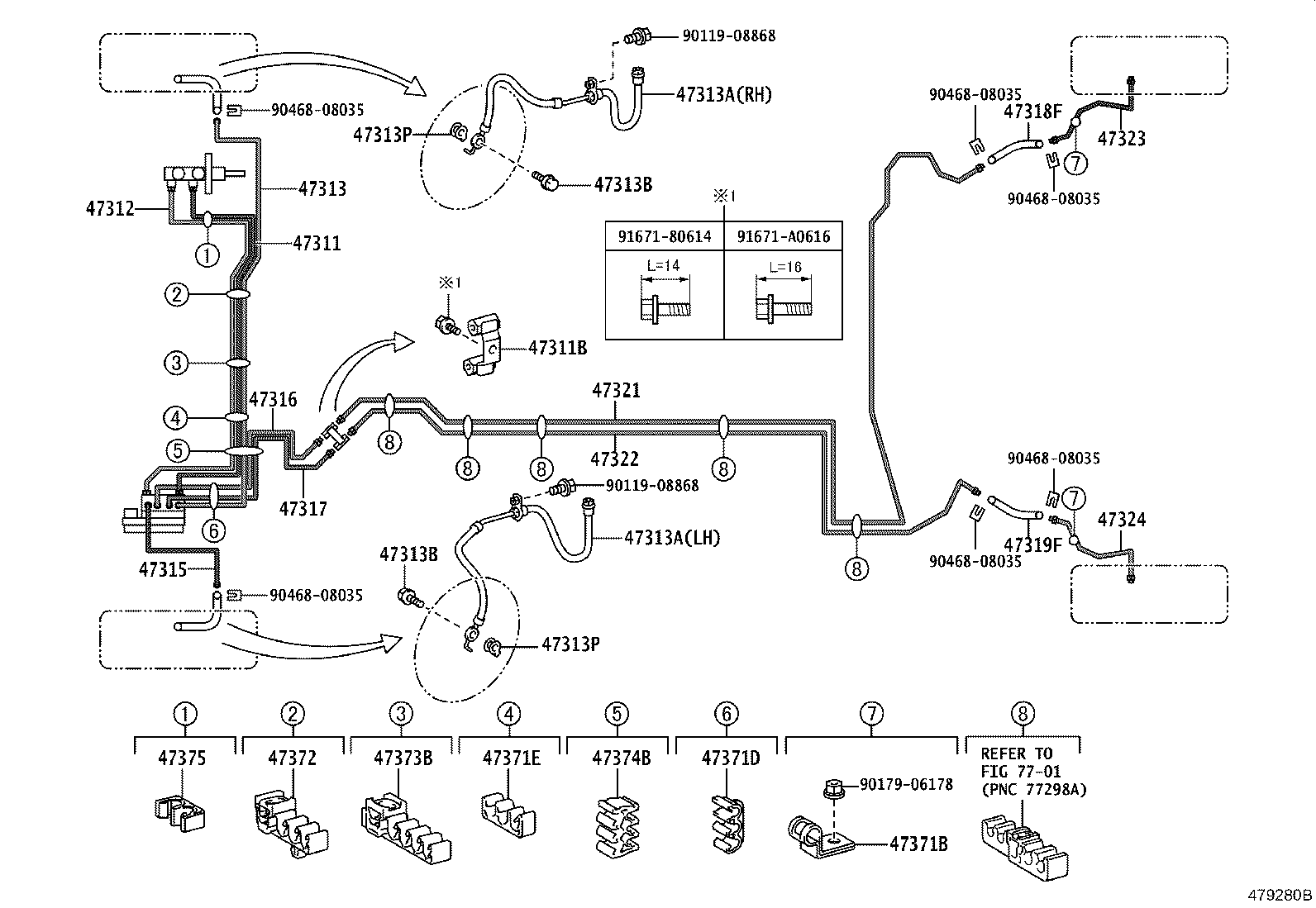

ILLUST NO. 1 OF 2(1405- )NCP125

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371B 47371D 47371E 47372 47373B 47374B 47375 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52470

NCP12#,NSP12#..G,S,X

 1
47311-52610

NCP12#,NSP12#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP12#,NSP12#

 1
90412-10260

NCP12#,NSP12#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52430

NCP12#,NSP12#..G,S,X

 1
47312-52420

NCP12#,NSP12#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52231

NCP12#,NSP12#

 1
47313-52220

NCP12#,NSP12#..G,S,X

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H35

NCP12#,NSP12#

右側

 1
90947-02E08

NCP12#,NSP12#

左側

 1
90947-02E07

NCP12#,NSP12#

右側

 1
90947-02H36

NCP12#,NSP12#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H35

NCP12#,NSP12#

右側

 1
90947-02E08

NCP12#,NSP12#

左側

 1
90947-02E07

NCP12#,NSP12#

右側

 1
90947-02H36

NCP12#,NSP12#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP12#,NSP12#

 2
90401-10058

NCP12#,NSP12#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP12#,NSP12#

 2
90401-10058

NCP12#,NSP12#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP12#,NSP12#

 2
47389-50020

NCP12#,NSP12#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP12#,NSP12#

 2
47389-50020

NCP12#,NSP12#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52220

NCP12#,NSP12#..G,S,X

 1
47315-52231

NCP12#,NSP12#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52150

NCP12#,NSP12#..G,S,X

 1
47316-52191

NCP12#,NSP12#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52150

NCP12#,NSP12#..G,S,X

 1
47317-52191

NCP12#,NSP12#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H29

NCP125

 1
90947-02E12

NCP125

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E13

NCP125

 1
90947-02H30

NCP125

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52331

NCP125

 1
47321-52330

NCP125

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52311

NCP125

 1
47322-52310

NCP125

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52141

NCP125

 1
47323-52140

NCP125

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52131

NCP125

 1
47324-52130

NCP125

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-10781

NCP125

 2
90461-10837

NCP125

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01D92

NCP12#,NSP12#

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01D93

NCP12#,NSP12#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D94

NCP12#,NSP12#

 1
90949-01D02

NCP12#,NSP12#..G,S,X

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D97

NCP12#,NSP12#

 1
90949-01D83

NCP12#,NSP12#..G,S,X

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D98

NCP12#,NSP12#

 1
90949-01969

NCP12#,NSP12#..G,S,X

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00899

NCP12#,NSP12#

 1
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701
