NCP122-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )NCP122,NSP122

Click highlighted areas on diagram

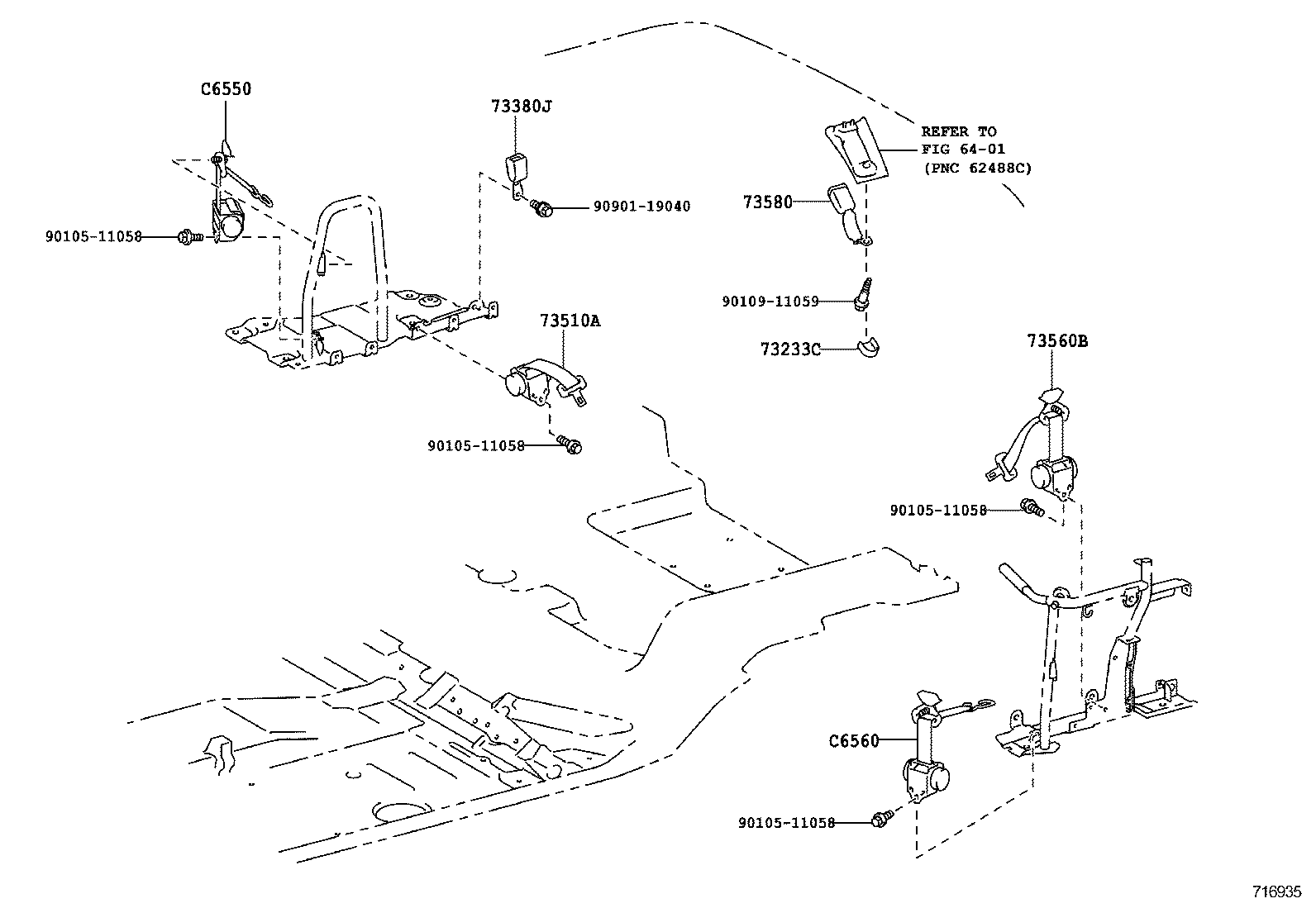

ﾘﾔ ｼｰﾄ(ｸﾙﾏｲｽ ﾖｳ)

diagram 6401 73233C 73380J 73510A 73560B 73580 9010511058 9010511058 9010511058 9010511058 9010911059 9090119040 C6550 C6560
Part # Description Qty Price
73233C - COVER, LAP BELT OUTER ANCHOR, LH
73233-12050C0

NCP122

BLACK,TRIM2#,4#

 1
73380J - BELT ASSY, WHEEL CHAIR NO.1 SEAT, INNER
73380-52160C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE
73510-52010C0

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73560B - BELT ASSY, WHEEL CHAIR REAR NO.2 SEAT, OUTER
73560-52030C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73560-52031C1

NCP122

BLACK,TRIM2#,4#

 1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-52030C0

NCP122,NSP122

BLACK,TRIM2#,4#

 1
C6550 - BELT ASSY, WHEEL CHAIR SET, NO.1
C6550-52030C0

NCP122

BLACK,TRIM2#,4#

 1
C6560 - BELT ASSY, WHEEL CHAIR SET, NO.2
C6560-52020C0

NCP122

BLACK,TRIM2#,4#

 1
Common parts
90105-11058
90109-11059
90901-19040
Linked diagrams
6401

(1011- )NCP122

Click highlighted areas on diagram

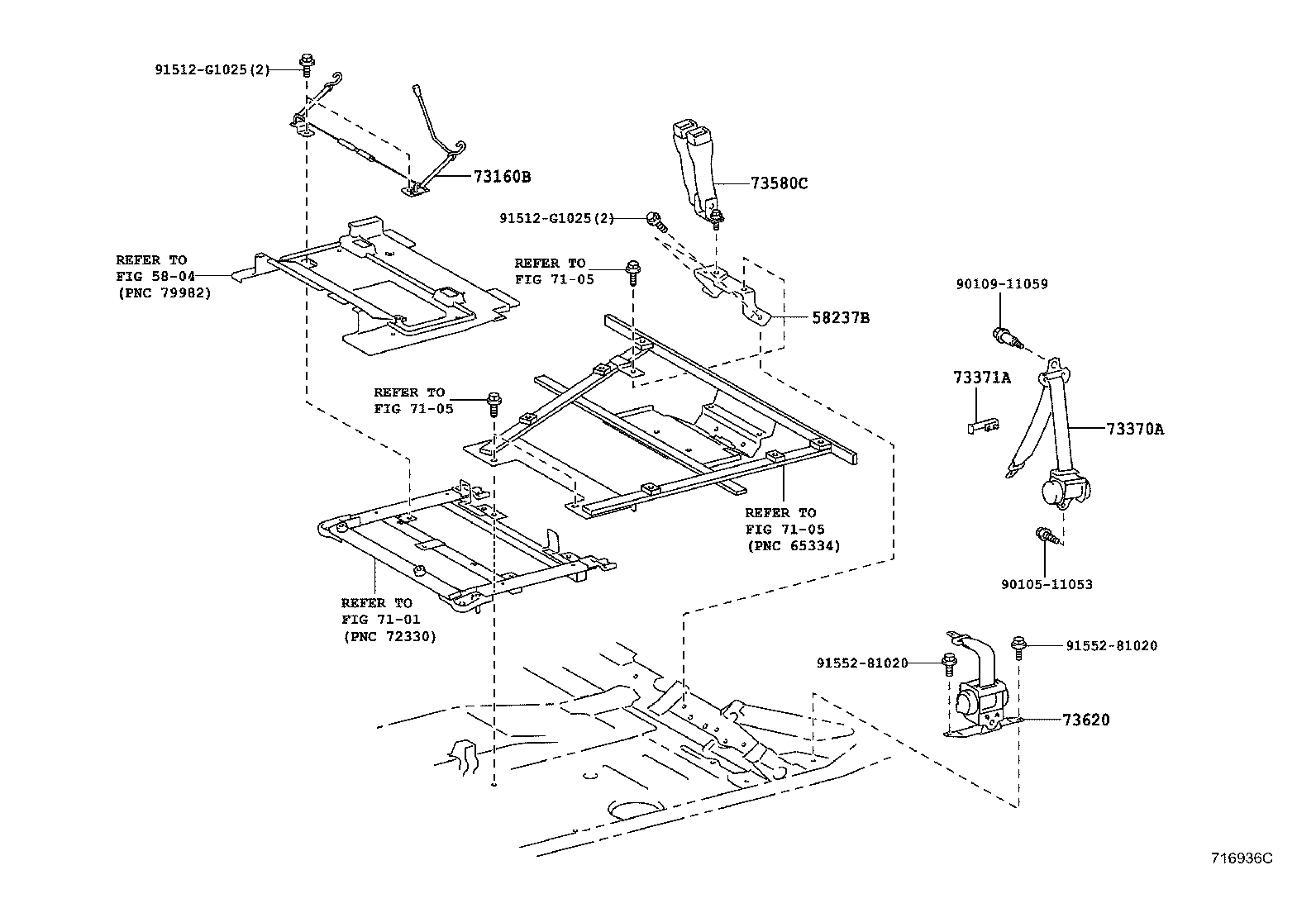

ﾘﾔ ｼｰﾄ(ｸﾙﾏｲｽ ﾖｳ(ｼｮｳﾆﾖｳ ｸﾙﾏｲｽ))

diagram 5804 58237B 7101 7105 7105 7105 73160B 73370A 73371A 73580C 73620 9010511053 9010911059 91512G1025 91512G1025 9155281020 9155281020
Part # Description Qty Price
58237B - BRACKET, FRONT SEAT
58237-52010

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”)

 1
73160B - BELT ASSY, WHEEL CHAIR FRONT CENTER SEAT, RH
73160-52020C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73370A - BELT ASSY, WHEEL CHAIR REAR SEAT, OUTER LH
73370-52340B0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73580C - BELT ASSY, WHEEL CHAIR NO.2 SEAT, INNER
73580-52010C1

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73620 - RETRACTOR ASSY, WHEEL CHAIR NO.2 LAP BELT, LH
73620-52010C1

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
Common parts
90105-11053
90109-11059
91512-G1025
91552-81020
Linked diagrams
5804
7101
7105

(1011- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄ

diagram 73210 7321475010 7321475010 73219 73220 73230 73233 73233 73240 9010511053 9010511053 9010911059 9010911059 9010911059 9010911059 9017911010 9017911010 9155380612 9155380612
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52831C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73210-52830C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

NCP12#,NSP12#

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52740C1

NCP120,122..G;NCP125,NSP12#..G,X

BLACK,TRIM2#,4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52550C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52630C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73230-52830C0

NSP122;NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73230-52680C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
Common parts
73214-75010
90105-11053
90109-11059
90179-11010
91553-80612

(1011-1111)

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ

diagram 73119 73143 73143 73219 73330 73330G 73340B 73360C 73370C 73371A 73371A 73380A 73380A 73470B 73480 73480 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511058 9010911059 9010911059 9017911010 9017911010
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP12#,NSP12#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52011

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”)

 1
73143-52011

NCP12#,NSP12#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52011

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”)

 1
73143-52011

NCP12#,NSP12#

 2
73219 - STOPPER, TONGUE PLATE
73219-33030

NCP12#,NSP12#

ﾍﾞｰｼﾞｭ

 1
73330G - BELT ASSY, RR SEAT LAP TYPE
73330-52100C0

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73330-52100C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73340-52090C0

NCP122

BLACK,TRIM2#,4#

 1
73340-52090C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73340B - BELT ASSY, SEAT LAP TYPE, NO.2
73340-52080C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73330-52120C0

NCP122

BLACK,TRIM2#,4#

 1
73330-52120C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73340-52080C0

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-52300C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-52260C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-52150C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73380-52150C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-52150C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73380-52150C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52390C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73480-52390C1

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52390C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73480-52390C1

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52390C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73480-52390C1

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
Common parts
90105-11053
90105-11058
90109-11059
90179-11010

(1111- )

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ

diagram 73119 73135A 73139A 73143 73143 73219 73310 73330 73330G 73340B 73360C 73370C 73371A 73371A 73380A 73380A 73470B 73480 73480 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511058 9010911059 9010911059 9017911010 9017911010
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP12#,NSP12#

 1
73135A - COVER, SHOULDER BELT ANCHOR, RH
73137-52100B0

NCP122

LT.GRAY,TRIM2#,4#

 1
73139A - COVER, SEAT BELT ANCHOR
73139-52030B0

NCP12#,NSP120..G

LT.GRAY,TRIM2#,4#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52011

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”)

 1
73143-52011

NCP12#,NSP12#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52011

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”)

 1
73143-52011

NCP12#,NSP12#

 2
73219 - STOPPER, TONGUE PLATE
73219-33030

NCP12#,NSP12#

ﾍﾞｰｼﾞｭ

 1
73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH
73310-52060C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73310-52061C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73330G - BELT ASSY, RR SEAT LAP TYPE
73330-52100C0

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73330-52100C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73340-52090C0

NCP122

BLACK,TRIM2#,4#

 1
73340-52090C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73340B - BELT ASSY, SEAT LAP TYPE, NO.2
73340-52080C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73330-52120C0

NCP122

BLACK,TRIM2#,4#

 1
73330-52120C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73340-52080C0

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-52300C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-52260C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-52150C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73380-52150C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-52150C0

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73380-52150C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52390C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73480-52390C1

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52390C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73480-52390C1

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52390C1

NCP122,NSP122

BLACK,TRIM2#,4#

 1
73480-52390C1

NCP122

ｳｪﾙｷｬﾌﾞ(車いす仕様車“ﾀｲﾌﾟU”),BLACK,TRIM2#,4#

 1
Common parts
90105-11053
90105-11058
90109-11059
90179-11010
