NCP120-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1011- )NCP120,125,NSP120

Click highlighted areas on diagram

ﾙｰﾌ ﾊﾟﾈﾙ

diagram 63102A 63102A 63103A 63105A 63105A 63111 63113B 63142B 63143B 63144A 63145D 63146E 63147F 63148A 63148E 9011906802 9011906802
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-52170

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63102-52160

NCP12#,NSP12#

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-52170

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63102-52160

NCP12#,NSP12#

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-52090

NCP120,125,NSP120

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-52140

NCP120,125,NSP120

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-52140

NCP120,125,NSP120

 1
63111 - PANEL, ROOF
63111-52270

NCP120,125,NSP120

 1
63113B - PANEL, ROOF, REAR
63113-52030

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63142B - REINFORCEMENT, ROOF PANEL, REAR
63142-52080

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-52150

NCP120,125,NSP120

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-52050

NCP120,125,NSP120

 1
63145D - BRACKET, ROOF REINFORCEMENT
63145-52040

NCP120,125,NSP120

 1
63146E - BRACKET, ROOF REINFORCEMENT, NO.2
63146-52060

NCP120,125,NSP120

 1
63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH
63147-52080

NCP12#,NSP12#

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-52110

NCP120,125,NSP120

 1
63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH
63147-52080

NCP12#,NSP12#

 1
Common parts
90119-06802

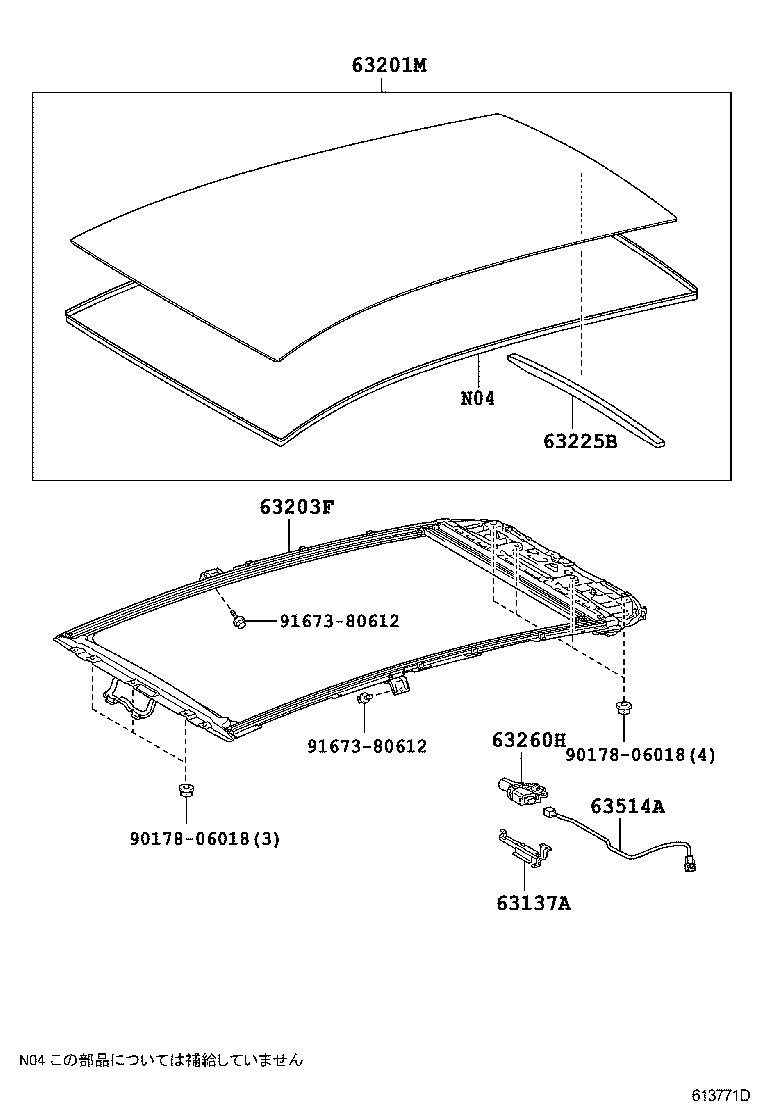

ILLUST NO. 2 OF 2(1011- )NCP120..G

Click highlighted areas on diagram

ｽﾗｲﾃﾞｨﾝｸﾞ ﾙｰﾌ

diagram 63137A 63201M 63203F 63225B 63260H 63514A 9017806018 9017806018 9167380612 9167380612
Part # Description Qty Price
63137A - BRACKET, DOME LAMP, NO.1
63137-52130

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63201M - GLASS SUB-ASSY, ROOF WINDOW, NO.1
63201-52090

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63201-52091

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-52060

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63225B - PROTECTOR, ROOF WINDOW MOULDING, UPPER
63225-52020

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63260H - GEAR ASSY, SLIDING ROOF DRIVE
63260-52120

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
63514A - WIRE, CONNECTOR
63514-20010

NCP120..G

ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ)

 1
Common parts
90178-06018
91673-80612
