NCP120-CHXGK (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )NCP12#

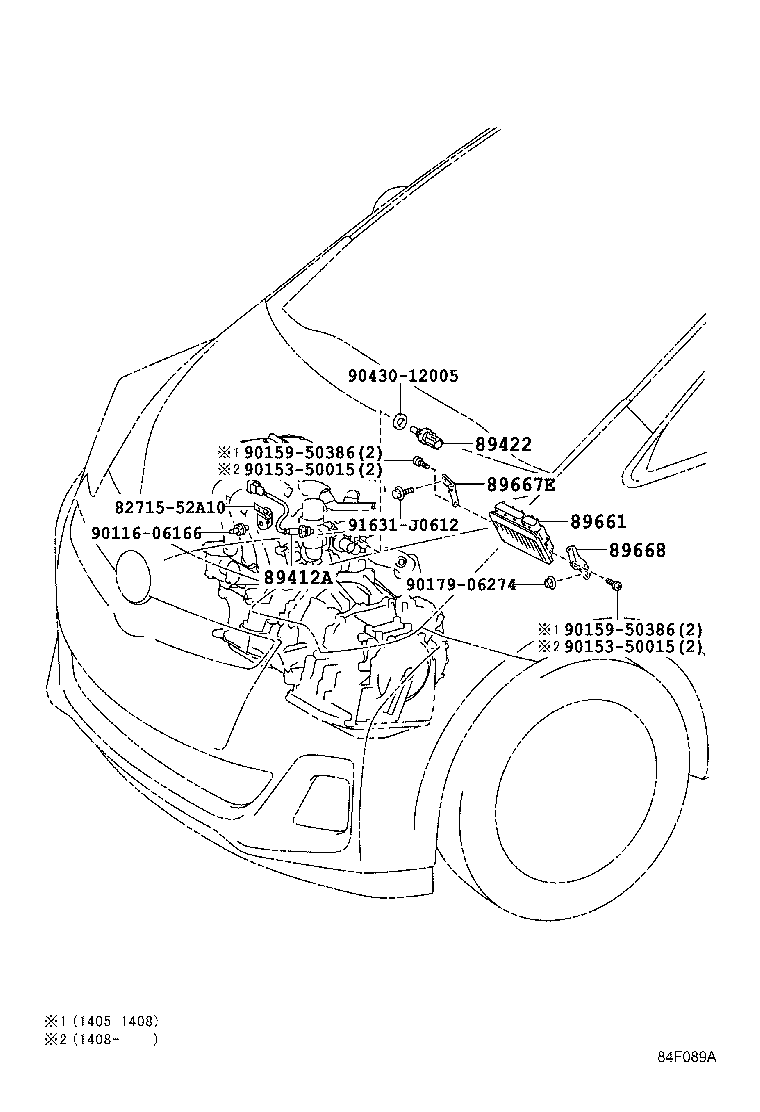

Click highlighted areas on diagram

diagram 8271552A10 89412A 89422 89661 89667E 89668 9011606166 9015350015 9015350015 9015950386 9015950386 9017906274 9043012005 91631J0612
Part # Description Qty Price
89412A - SENSOR, E.G.R GAS TEMPERATURE
89412-35020

NCP120,122

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NCP12#,NSP12#

 1
89422-33030

NCP12#,NSP12#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52P10

NCP120,122

FUJITSU TEN

 1
89661-5C530

NCP120

有り(STOP & STARTｼｽﾃﾑ)

 1
89661-5C540

NCP120,122

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-52340

NCP12#,NSP12#

 1
89667-52340

NCP12#,NSP12#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52350

NCP12#,NSP12#

 1
89668-52350

NCP12#,NSP12#

 1
Common parts
82715-52A10
90116-06166
90153-50015
90159-50386
90179-06274
90430-12005
91631-J0612
