NCP120-CHXGK (2014)
Toyota Ractis
(1405- )

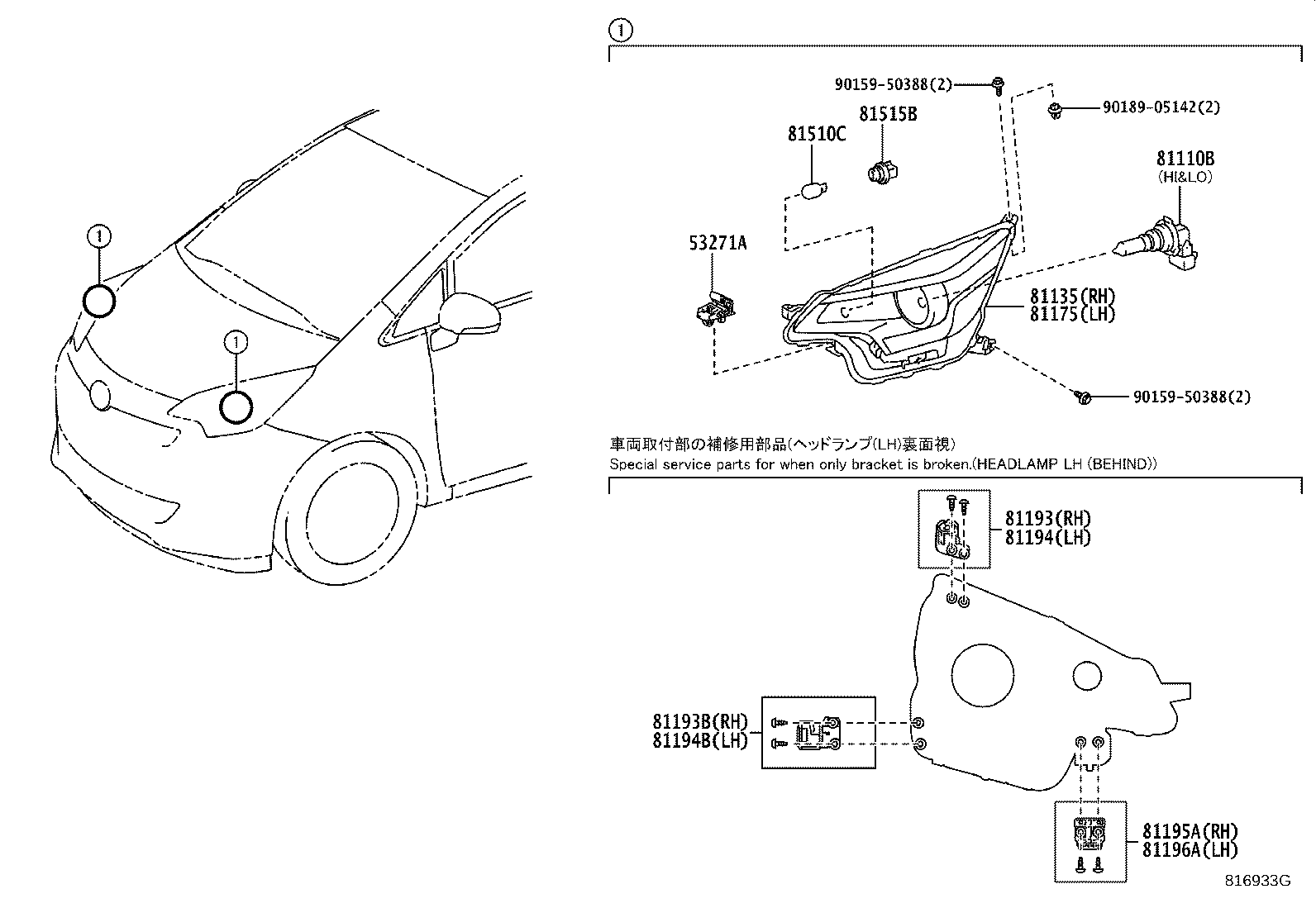

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
NCP12#,NSP12# |
2 | ||
| 53271-44010 |
NCP12#,NSP12# |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP12#,NSP12# 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13089 |
NCP12#,NSP12# 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13082 |
NCP120,125,NSP120 12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52J71 |
NCP12#,NSP12#..G,X |
1 | ||
| 81130-52C60 |
NCP12#,NSP12#..G,LEPIC,X |
1 | ||
| 81145-52C70 |
NCP120,125,NSP120 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81130-52J70 |
NCP12#,NSP12#..G,X |
1 | ||
| 81130-52J90 |
NCP120,125,NSP120 ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52C60 |
NCP12#,NSP12#..G,LEPIC,X |
1 | ||
| 81170-52J70 |
NCP12#,NSP12#..G,X |
1 | ||
| 81170-52J71 |
NCP12#,NSP12#..G,X |
1 | ||
| 81185-52C70 |
NCP120,125,NSP120 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81170-52J90 |
NCP120,125,NSP120 ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52170 |
NCP12#,NSP12# |
1 | ||
| 81193-52170 |
NCP12#,NSP12# |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-52160 |
NCP12#,NSP12# |
1 | ||
| 81193-52160 |
NCP12#,NSP12# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52170 |
NCP12#,NSP12# |
1 | ||
| 81194-52170 |
NCP12#,NSP12# |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-52160 |
NCP12#,NSP12# |
1 | ||
| 81194-52160 |
NCP12#,NSP12# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52140 |
NCP12#,NSP12# |
1 | ||
| 81195-52140 |
NCP12#,NSP12# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81195-52140 |
NCP12#,NSP12# |
1 | ||
| 81195-52140 |
NCP12#,NSP12# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
NCP12#,NSP12# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
NCP12#,NSP12# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81515-42050 |
NCP12#,NSP12# |
2 | ||
| 81515-42050 |
NCP12#,NSP12# |
2 | ||
| Common parts | ||||
| 90159-50388 | ||||
| 90189-05142 | ||||
(1405- )NCP120,125,NSP120

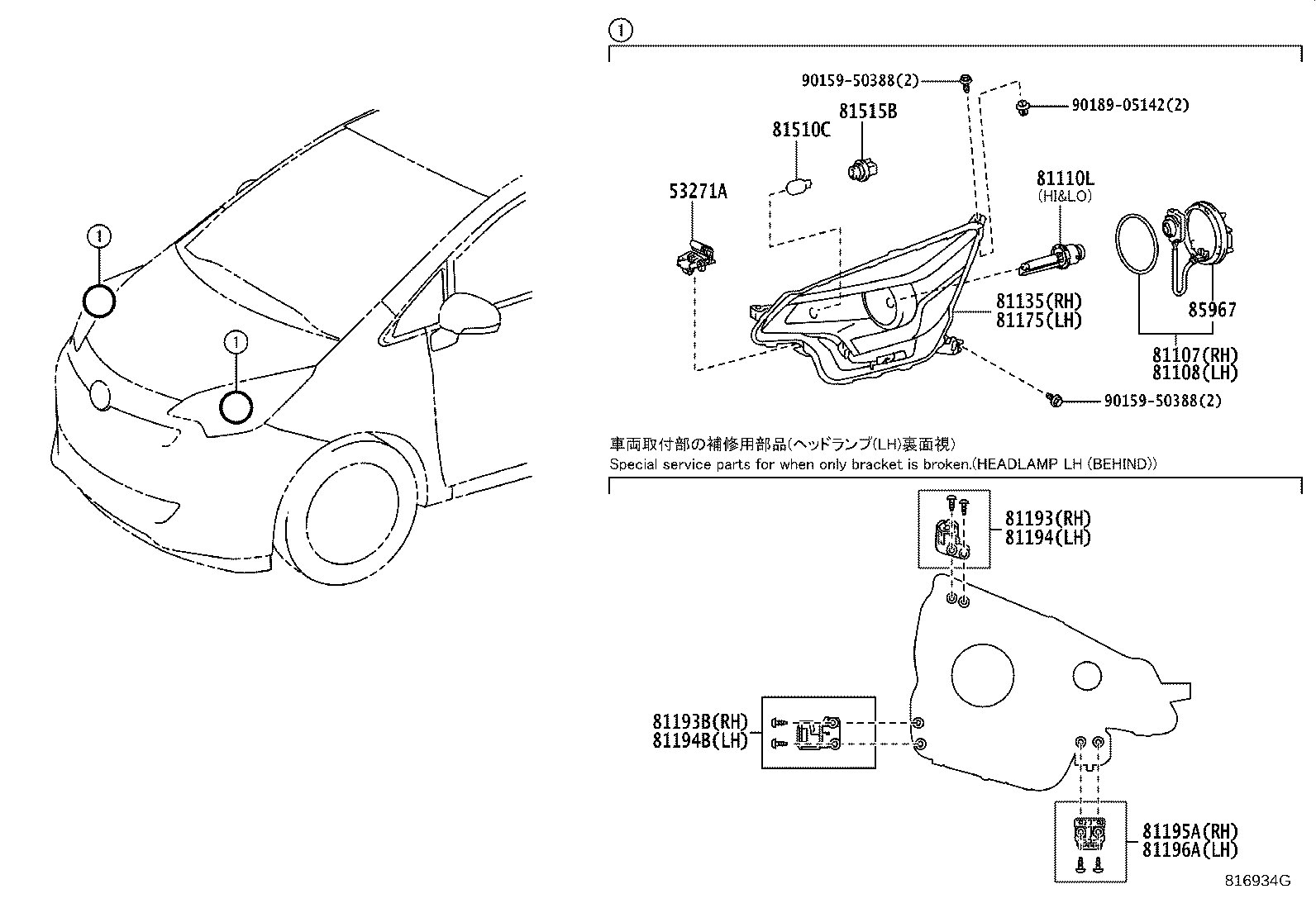

ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
NCP12#,NSP12# |
2 | ||
| 53271-44010 |
NCP12#,NSP12# |
2 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-12G20 |
NCP120,125,NSP120 ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ) |
1 | ||
| 81107-52C70 |
NCP120,125,NSP120 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-52C70 |
NCP120,125,NSP120 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81107-12G20 |
NCP120,125,NSP120 ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ) |
1 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20030 |
NCP120,125,NSP120 45V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90981-20028 |
NCP120,125,NSP120 45V 35W,ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52J71 |
NCP12#,NSP12#..G,X |
1 | ||
| 81130-52C60 |
NCP12#,NSP12#..G,LEPIC,X |
1 | ||
| 81145-52C70 |
NCP120,125,NSP120 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81130-52J70 |
NCP12#,NSP12#..G,X |
1 | ||
| 81130-52J90 |
NCP120,125,NSP120 ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52C60 |
NCP12#,NSP12#..G,LEPIC,X |
1 | ||
| 81170-52J70 |
NCP12#,NSP12#..G,X |
1 | ||
| 81170-52J71 |
NCP12#,NSP12#..G,X |
1 | ||
| 81185-52C70 |
NCP120,125,NSP120 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81170-52J90 |
NCP120,125,NSP120 ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52170 |
NCP12#,NSP12# |
1 | ||
| 81193-52170 |
NCP12#,NSP12# |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-52160 |
NCP12#,NSP12# |
1 | ||
| 81193-52160 |
NCP12#,NSP12# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52170 |
NCP12#,NSP12# |
1 | ||
| 81194-52170 |
NCP12#,NSP12# |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-52160 |
NCP12#,NSP12# |
1 | ||
| 81194-52160 |
NCP12#,NSP12# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52140 |
NCP12#,NSP12# |
1 | ||
| 81195-52140 |
NCP12#,NSP12# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81195-52140 |
NCP12#,NSP12# |
1 | ||
| 81195-52140 |
NCP12#,NSP12# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
NCP12#,NSP12# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
NCP12#,NSP12# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81515-42050 |
NCP12#,NSP12# |
2 | ||
| 81515-42050 |
NCP12#,NSP12# |
2 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-45010 |
NCP120,125,NSP120 ﾍｯﾄﾞ ﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ 有り(ｽﾓｰｸ) |
4 | ||
| Common parts | ||||
| 90159-50388 | ||||
| 90189-05142 | ||||
