NCP120-CHXGK (2014)
Toyota Ractis

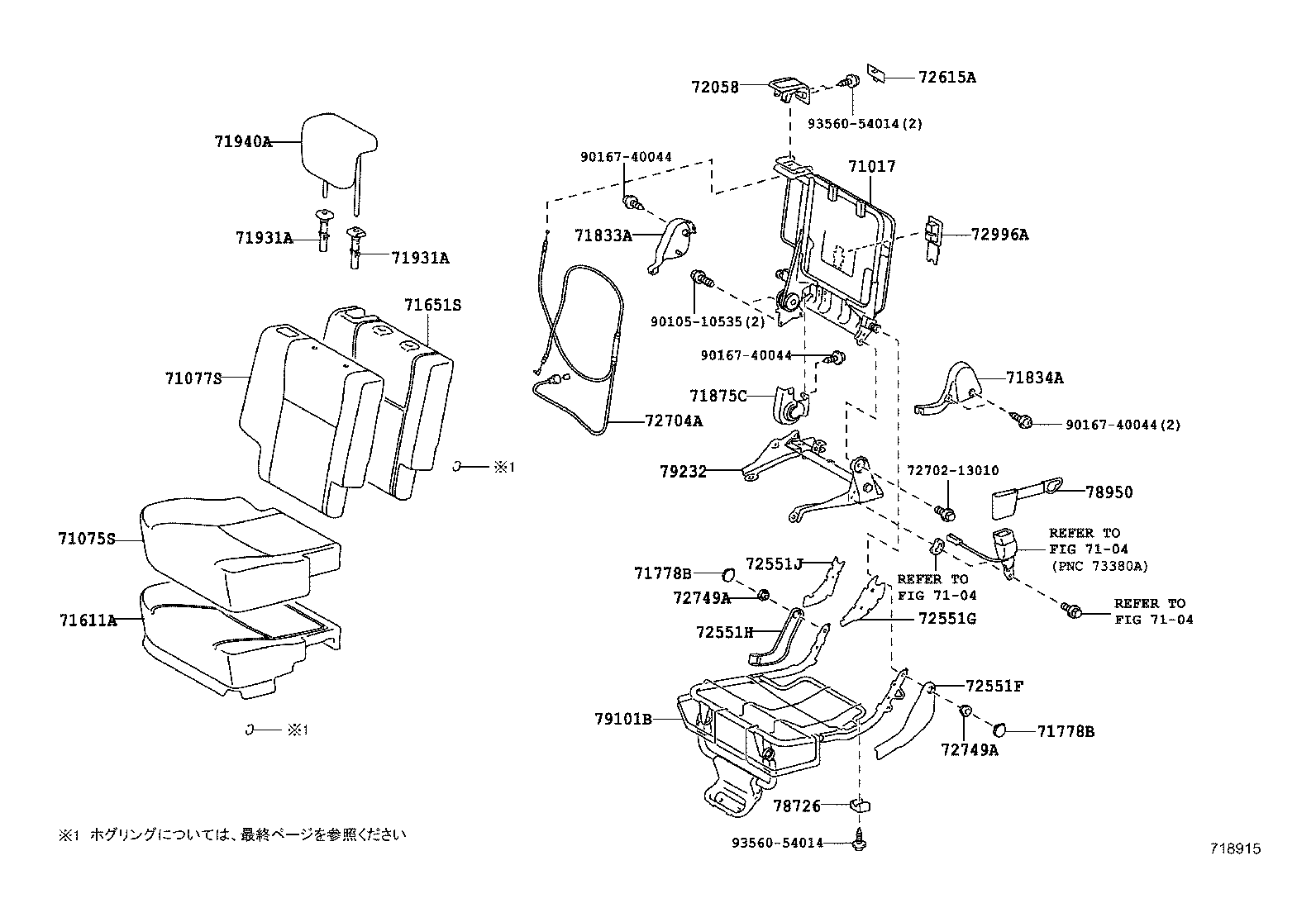

ILLUST NO. 1 OF 3(1405- )NCP120..G
RH:ﾎﾝｶﾞﾜ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52600 |
NCP120,NSP120 |
1 | ||
| 71017-52600 |
NCP120,NSP120 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-52M10C0 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA),BLACK,TRIM2# |
1 | ||
| 71075-52M10C0 |
NCP120..G “PRIME STYLE”,BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-52P00C0 |
NCP120..G “PRIME STYLE”,BLACK,TRIM2# |
1 | ||
| 71077-52P00C0 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA),BLACK,TRIM2# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-52220 |
NCP120..G “PRIME STYLE” |
1 | ||
| 71611-52220 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-52590 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71651-52590 |
NCP120..G “PRIME STYLE” |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52020C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
4 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52020C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
4 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52120C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71833-52120C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71833-52120C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71833-52120C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71879-52160C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71879-52160C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71879-52160C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 71879-52160C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52121C0 |
NCP120,125,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 71875-52121C0 |
NCP120..LEPIC,X;NCP125,NSP120..LEPIC BLACK,TRIM2#,8# |
1 | ||
| 71875-52121C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71875-52121C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
NCP122;NCP120..S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP122;NCP120..S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
NCP122;NCP120..S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP122;NCP120..S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52A41B2 |
NCP120,NSP120..G DK.GRAY,TRIM2#,4# |
2 | ||
| 71940-52A60B1 |
NCP120,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71940-52A60E2 |
NCP120,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71940-52A40C1 |
NCP120,NSP120..X BLACK,TRIM2# |
2 | ||
| 71940-52A41B2 |
NCP120,NSP120..X DK.GRAY,TRIM2# |
2 | ||
| 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-52040A0 |
NCP120,NSP120..G SHELL,TRIM40 |
2 | ||
| 72057-52040C0 |
NCP120,NSP120..G BLACK,TRIM2#,40,44 |
2 | ||
| 72057-52040C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
2 | ||
| 72057-52040C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
2 | ||
| 72057-52040C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
2 | ||
| 72551F - COVER, RECLINING LINK, RH NO.1 | ||||
| 72551-52050C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72551-52050C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72551-52050C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72551-52050C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72551G - COVER, RECLINING LINK, RH NO.2 | ||||
| 72551-52060C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72551-52060C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72551-52060C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72551-52060C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72551H - COVER, RECLINING LINK, RH NO.3 | ||||
| 72551-52070C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72551-52070C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72551-52070C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72551-52070C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72551J - COVER, RECLINING LINK, RH NO.4 | ||||
| 72551-52080C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72551-52080C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72551-52080C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72551-52080C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52100C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72615-52100C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72615-52100C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72615-52100C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52200 |
NCP120,NSP120 |
1 | ||
| 72704-52200 |
NCP120,NSP120 |
1 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP120,NSP120 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP120,NSP120 |
4 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
2 | ||
| 72996-12320C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
2 | ||
| 72996-12320C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
2 | ||
| 72996-12320C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
NCP120,NSP120 |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-52040C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 78950-52040C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 78950-52040C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 78950-52040C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-52030 |
NCP120,NSP120 |
1 | ||
| 79101-52030 |
NCP120,NSP120 |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 71308-52060 |
NCP120,NSP120 |
1 | ||
| 71308-52060 |
NCP120,NSP120 |
1 | ||
| Common parts | ||||
| 72702-13010 | ||||
| 90105-10535 | ||||
| 90167-40044 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 7104 | ||||

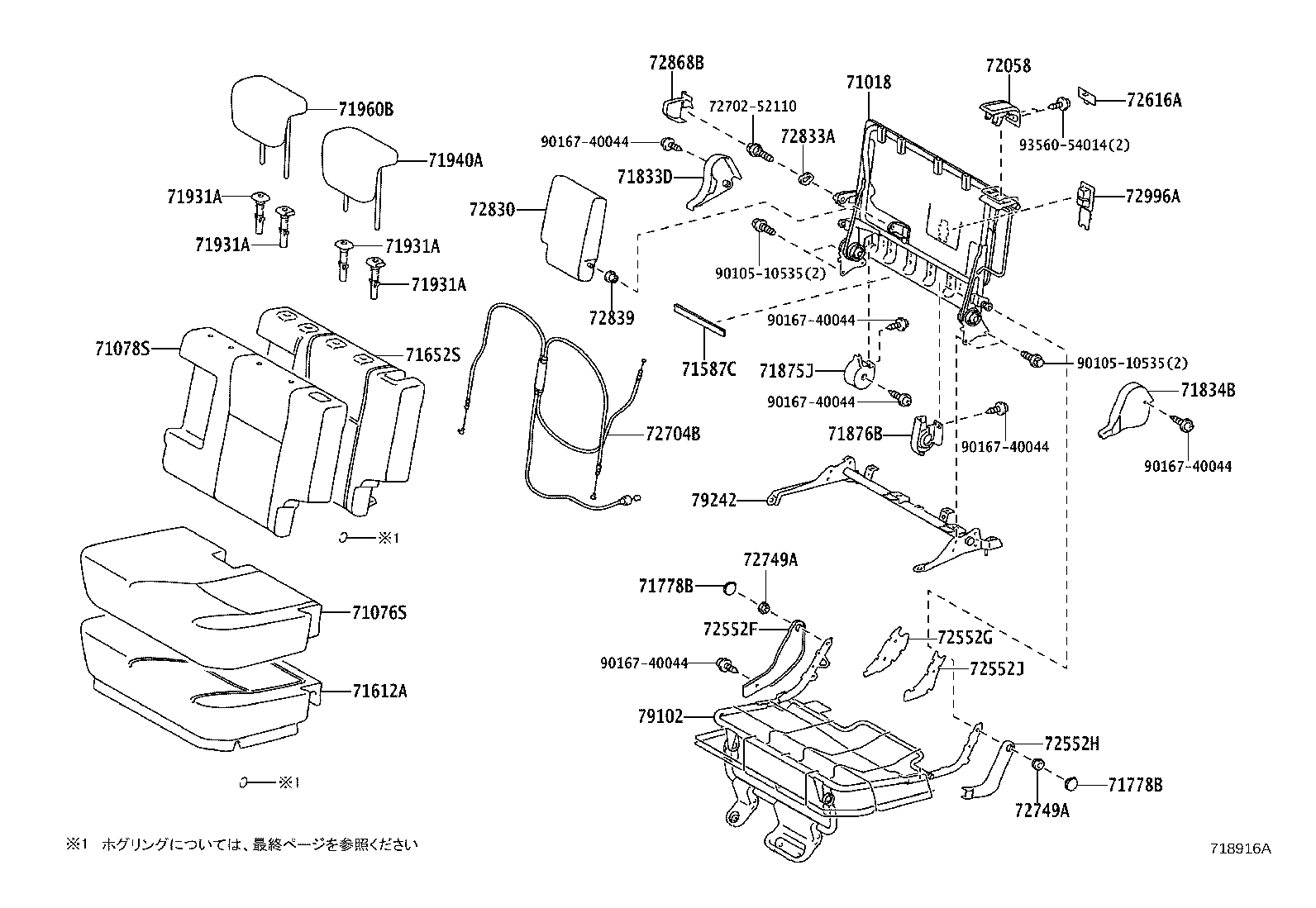

ILLUST NO. 2 OF 3(1405- )NCP120..G
LH:ﾎﾝｶﾞﾜ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52480 |
NCP120..G “PRIME STYLE” |
1 | ||
| 71018-52470 |
NCP120,NSP120 |
1 | ||
| 71018-52480 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71018-52460 |
NCP120,NSP120 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-52300C0 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA),BLACK,TRIM2# |
1 | ||
| 71076-52300C0 |
NCP120..G “PRIME STYLE”,BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-52L40C0 |
NCP120..G “PRIME STYLE”,BLACK,TRIM2# |
1 | ||
| 71078-52L40C0 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA),BLACK,TRIM2# |
1 | ||
| 71587C - PROTECTOR, REAR SEAT BACK EDGE NO.2 | ||||
| 71587-52020 |
NCP120,125,NSP120 |
1 | ||
| 71587-52020 |
NCP120,125,NSP120 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-52160 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71612-52160 |
NCP120..G “PRIME STYLE” |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-52500 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71652-52500 |
NCP120..G “PRIME STYLE” |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52020C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
4 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52020C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
4 | ||
| 71778-52020C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
4 | ||
| 71833D - COVER REAR SEAT RECLINING, RH | ||||
| 71833-52130C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71833-52130C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 71833-52130C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71833-52130C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-52120C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71834-52120C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71834-52120C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 71834-52120C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52110C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71875-52110C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71875-52110C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 71875-52150C0 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-52150C0 |
NCP120..G “PRIME STYLE”,BLACK,TRIM2# |
1 | ||
| 71875-52110C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52121C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71876-52121C0 |
NCP120..LEPIC,X;NCP125,NSP120..LEPIC BLACK,TRIM2#,8# |
1 | ||
| 71876-52121C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71876-52121C0 |
NCP120,125,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
NCP122;NCP120..S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP122;NCP120..S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
NCP122;NCP120..S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP122;NCP120..S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
NCP122;NCP120..S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP122;NCP120..S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
NCP122;NCP120..S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP122;NCP120..S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020C0 |
NCP120,125,NSP12#..S,X ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52A60B1 |
NCP120,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71940-52A60E2 |
NCP120,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71940-52A40C1 |
NCP120,NSP120..X BLACK,TRIM2# |
2 | ||
| 71940-52A41B2 |
NCP120,NSP120..G DK.GRAY,TRIM2#,4# |
2 | ||
| 71940-52A41B2 |
NCP120,NSP120..X DK.GRAY,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52531B2 |
NCP120,NSP120..G DK.GRAY,TRIM2#,4# |
1 | ||
| 71960-52531B2 |
NCP120,NSP120..X DK.GRAY,TRIM2# |
1 | ||
| 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-52040A0 |
NCP120,NSP120..G SHELL,TRIM40 |
2 | ||
| 72057-52040C0 |
NCP120,NSP120..G BLACK,TRIM2#,40,44 |
2 | ||
| 72057-52040C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
2 | ||
| 72057-52040C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
2 | ||
| 72057-52040C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
2 | ||
| 72552F - COVER, RECLINING LINK, LH NO.1 | ||||
| 72552-52050C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72552-52050C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72552-52050C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72552-52050C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72552G - COVER, RECLINING LINK, LH NO.2 | ||||
| 72552-52060C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72552-52060C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72552-52060C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72552-52060C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72552H - COVER, RECLINING LINK, LH NO.3 | ||||
| 72552-52070C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72552-52070C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72552-52070C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72552-52070C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72552J - COVER, RECLINING LINK, LH NO.4 | ||||
| 72552-52080C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72552-52080C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72552-52080C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72552-52080C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52100C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72615-52100C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72615-52100C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 72615-52100C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52210 |
NCP120,NSP120 |
1 | ||
| 72704-52210 |
NCP120,NSP120 |
1 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP120,NSP120 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP120,NSP120 |
4 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-52200C0 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA),BLACK,TRIM2# |
1 | ||
| 72830-52200C0 |
NCP120..G “PRIME STYLE”,BLACK,TRIM2# |
1 | ||
| 72833A - PLATE, SEAT CENTER ARMREST, INNER | ||||
| 72831-52010 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA) |
1 | ||
| 72831-52010 |
NCP120..G “PRIME STYLE” |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-22010 |
NCP120..G “PRIME STYLE” |
1 | ||
| 72839-22010 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA) |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-52050C0 |
NCP120..G “PRIME STYLE”,BLACK,TRIM2# |
1 | ||
| 72868-52050C0 |
NCP120..G “PRIME STYLE”&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS &ｻｲﾄﾞ & *CUSA),BLACK,TRIM2# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320C0 |
NCP120,NSP120..S,X BLACK,TRIM2# |
2 | ||
| 72996-12320C0 |
NSP120..LEPIC;NCP120..LEPIC,X BLACK,TRIM2#,8# |
2 | ||
| 72996-12320C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
2 | ||
| 72996-12320C0 |
NCP120,NSP120..G BLACK,TRIM2#,4# |
2 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-52030 |
NCP120,NSP120 |
1 | ||
| 79102-52030 |
NCP120,NSP120 |
1 | ||
| 79242 - LEG, REAR NO.2 SEAT, LH | ||||
| 71309-52060 |
NCP120,NSP120 |
1 | ||
| 71309-52060 |
NCP120,NSP120 |
1 | ||
| Common parts | ||||
| 72702-52110 | ||||
| 90105-10535 | ||||
| 90167-40044 | ||||
| 93560-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
