NCP105-CHPNK (2005)

Toyota Ractis

Production Sep 2005 - Dec 2007
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )

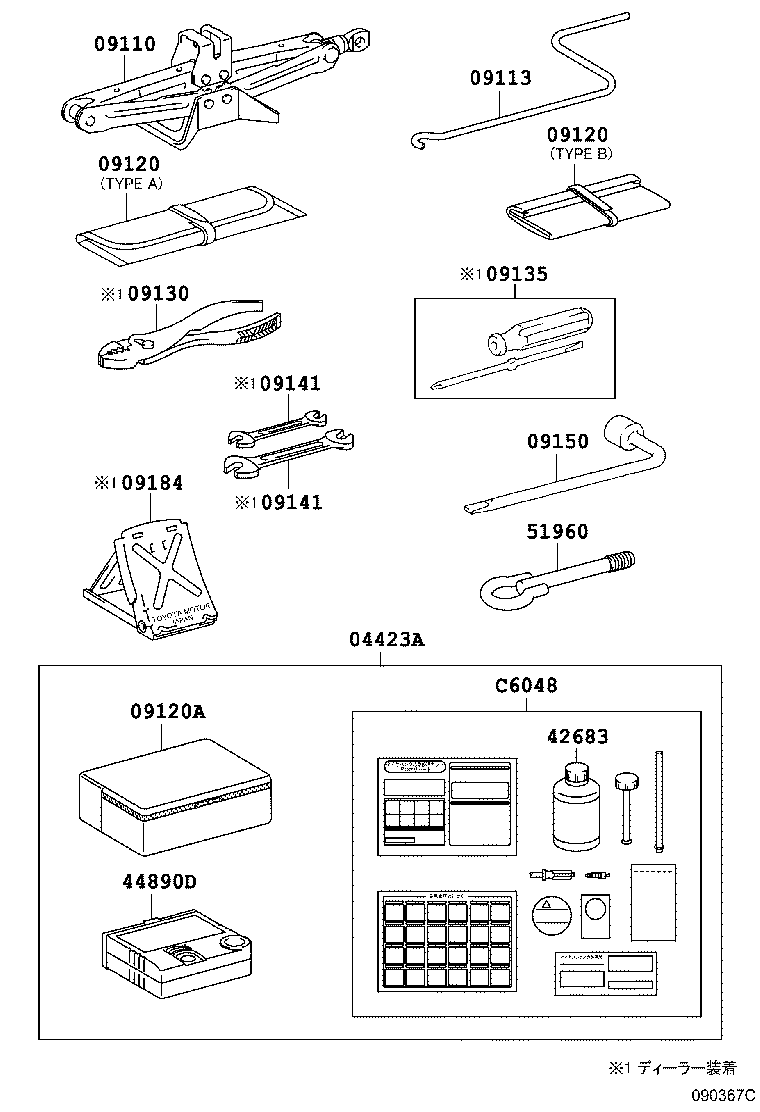

Click highlighted areas on diagram

diagram 04423A 09110 09113 09120 09120 09120A 09130 09135 09141 09141 09150 09184 42683 44890D 51960 C6048
Part # Description Qty Price
09110 - JACK ASSY
09111-47010

NCP10#,SCP100

 1
09113 - HANDLE, JACK
09113-52010

NCP10#,SCP100

 1
09113-52040

NCP10#,SCP100

 1
09120 - BAG, TOOL
09120-16030

NCP10#,SCP100

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り,TYPE A:ｲﾗｽﾄ参照

 1
09120 - BAG, TOOL
09120-16030

NCP10#,SCP100

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り,TYPE A:ｲﾗｽﾄ参照

 1
09130 - PLIERS
99913-11500

NCP10#,SCP100

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り

 1
09135 - DRIVER, SCREW
99915-10700

NCP10#,SCP100

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り

 1
09141 - SPANNER
99914-10810

NCP10#,SCP100

8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り

 1
99914-11214

NCP10#,SCP100

12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り

 1
09141 - SPANNER
99914-10810

NCP10#,SCP100

8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り

 1
99914-11214

NCP10#,SCP100

12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

NCP10#,SCP100

 1
09184 - STOPPER, WHEEL
09184-00010

NCP10#,SCP100

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−有り

 1
51960 - HOOK ASSY, FRONT
51960-47020

NCP10#,SCP100

 1
