Toyota Ractis NCP105 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
JP
RACTIS
NCP105-CHPGK (2007)
6402 - ROOF HEADLINING & SILENCER PAD

NCP105-CHPGK (2007)

Toyota Ractis

Production Dec 2007 - Aug 2010

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

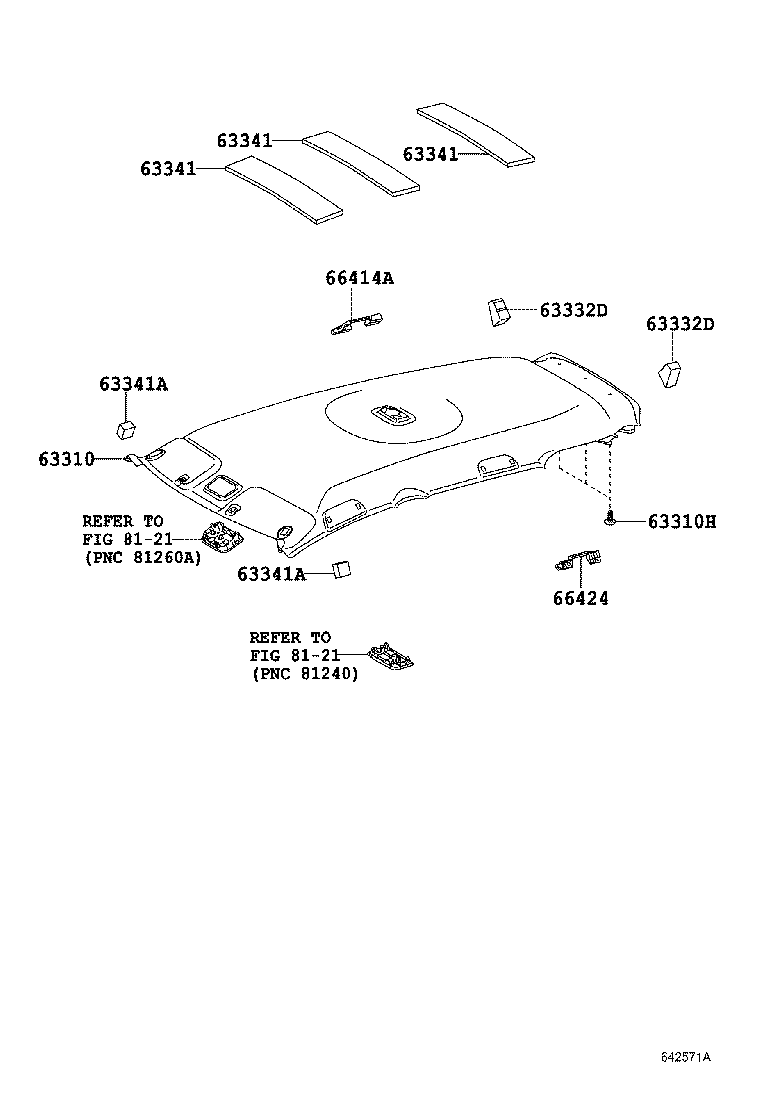

(0509-1001)

Click highlighted areas on diagram

ｱﾘ(ﾑｰﾝﾙｰﾌ)

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-52560B0	NCP10#,SCP100 LT.GRAY,TRIM1#	12/2007 - 01/2010	1
63310-52560B0	NCP10#,SCP100 LT.GRAY,TRIM10,11,4#	09/2005 - 12/2007	1
63313-52050B0	NCP10#,SCP100 LT.GRAY,TRIM1#	01/2010 - 08/2010	1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B6	NCP10#..G GRAY,TRIM10,11	09/2005 - 12/2007	3
90467-05164B6	NCP10#,SCP100 GRAY,TRIM1#	12/2007 - 08/2010	3
63332D - PAD, SUN ROOF HEADLINING
63332-52010	NCP10#,SCP100	12/2007 - 01/2010	2
63332-52010	NCP10#,SCP100	09/2005 - 12/2007	2
63332D - PAD, SUN ROOF HEADLINING
63332-52010	NCP10#,SCP100	12/2007 - 01/2010	2
63332-52010	NCP10#,SCP100	09/2005 - 12/2007	2
63341A - SILENCER, ROOF, NO.1
69759-52010	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	2
69759-52010	NCP10#,SCP100	12/2007 - 01/2010	2
63341A - SILENCER, ROOF, NO.1
69759-52010	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	2
69759-52010	NCP10#,SCP100	12/2007 - 01/2010	2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52210	NCP10#,SCP100	09/2005 - 12/2007	1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52240	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	1
66414-52230	NCP10#,SCP100	09/2005 - 12/2007	1
66414-52240	NCP10#,SCP100	12/2007 - 01/2010	1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52240	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	1
66414-52230	NCP10#,SCP100	09/2005 - 12/2007	1
66414-52240	NCP10#,SCP100	12/2007 - 01/2010	1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52210	NCP10#,SCP100	09/2005 - 12/2007	1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52240	NCP10#,SCP100	12/2007 - 01/2010	1
66424-52230	NCP10#,SCP100	09/2005 - 12/2007	1
66424-52240	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52240	NCP10#,SCP100	12/2007 - 01/2010	1
66424-52230	NCP10#,SCP100	09/2005 - 12/2007	1
66424-52240	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	1
Linked diagrams
8121

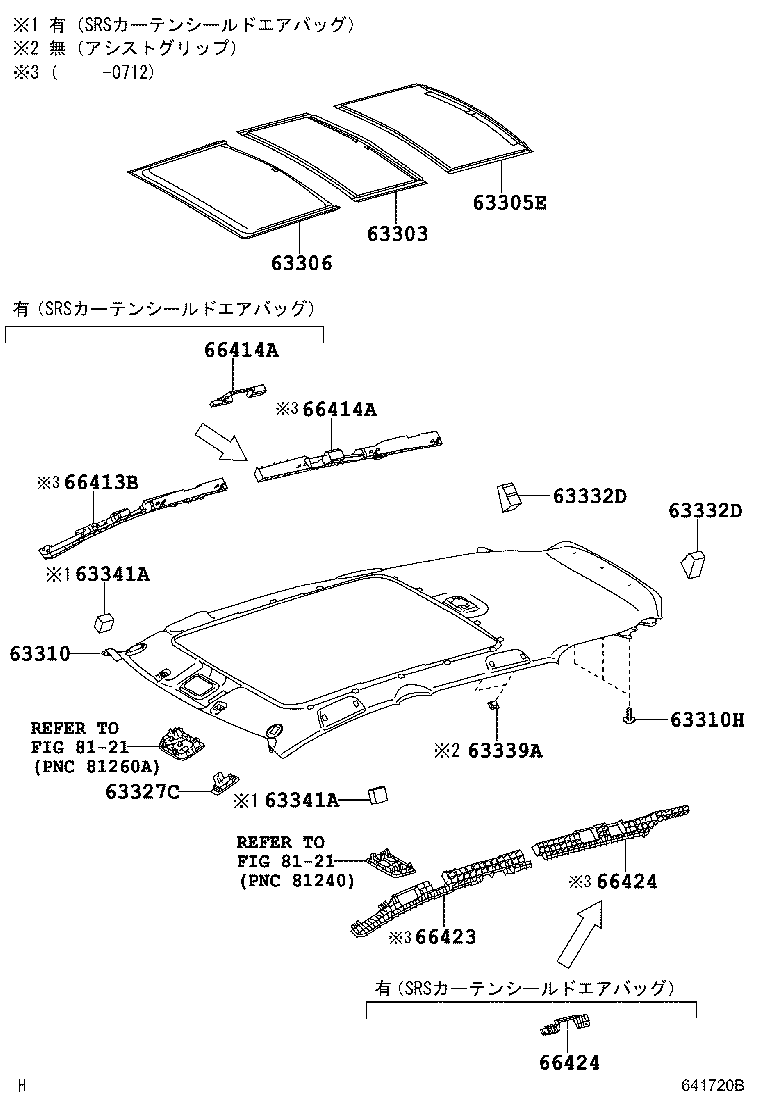

(0509-1001)

Click highlighted areas on diagram

ｱﾘ(ｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸﾞ)

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-52560B0	NCP10#,SCP100 LT.GRAY,TRIM1#	12/2007 - 01/2010	1
63310-52560B0	NCP10#,SCP100 LT.GRAY,TRIM10,11,4#	09/2005 - 12/2007	1
63313-52050B0	NCP10#,SCP100 LT.GRAY,TRIM1#	01/2010 - 08/2010	1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B6	NCP10#..G GRAY,TRIM10,11	09/2005 - 12/2007	3
90467-05164B6	NCP10#,SCP100 GRAY,TRIM1#	12/2007 - 08/2010	3
63332D - PAD, SUN ROOF HEADLINING
63332-52010	NCP10#,SCP100	12/2007 - 01/2010	2
63332-52010	NCP10#,SCP100	09/2005 - 12/2007	2
63332D - PAD, SUN ROOF HEADLINING
63332-52010	NCP10#,SCP100	12/2007 - 01/2010	2
63332-52010	NCP10#,SCP100	09/2005 - 12/2007	2
63341 - PAD, ROOF SILENCER, NO.1
63341-52150	NCP10#,SCP100	09/2005 - 12/2007	3
63341-52150	NCP10#,SCP100	12/2007 - 01/2010	3
63341 - PAD, ROOF SILENCER, NO.1
63341-52150	NCP10#,SCP100	09/2005 - 12/2007	3
63341-52150	NCP10#,SCP100	12/2007 - 01/2010	3
63341 - PAD, ROOF SILENCER, NO.1
63341-52150	NCP10#,SCP100	09/2005 - 12/2007	3
63341-52150	NCP10#,SCP100	12/2007 - 01/2010	3
63341A - SILENCER, ROOF, NO.1
69759-52010	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	2
69759-52010	NCP10#,SCP100	12/2007 - 01/2010	2
63341A - SILENCER, ROOF, NO.1
69759-52010	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	2
69759-52010	NCP10#,SCP100	12/2007 - 01/2010	2
66414A - SPACER, SIDE RAIL, REAR RH
66414-52240	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	1
66414-52230	NCP10#,SCP100	09/2005 - 12/2007	1
66414-52240	NCP10#,SCP100	12/2007 - 01/2010	1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52240	NCP10#,SCP100	12/2007 - 01/2010	1
66424-52230	NCP10#,SCP100	09/2005 - 12/2007	1
66424-52240	NCP10#,SCP100 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)	09/2005 - 12/2007	1
Linked diagrams
8121

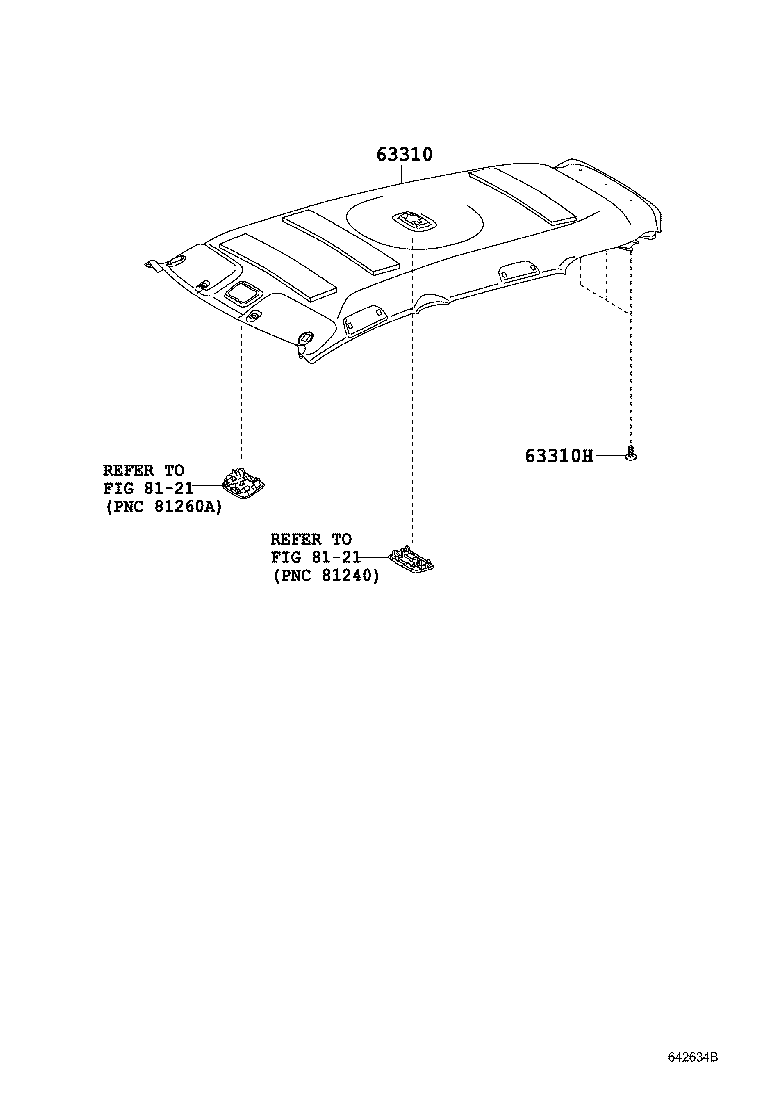

(1001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-52560B0	NCP10#,SCP100 LT.GRAY,TRIM1#	12/2007 - 01/2010	1
63310-52560B0	NCP10#,SCP100 LT.GRAY,TRIM10,11,4#	09/2005 - 12/2007	1
63313-52050B0	NCP10#,SCP100 LT.GRAY,TRIM1#	01/2010 - 08/2010	1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B6	NCP10#..G GRAY,TRIM10,11	09/2005 - 12/2007	3
90467-05164B6	NCP10#,SCP100 GRAY,TRIM1#	12/2007 - 08/2010	3
Linked diagrams
8121

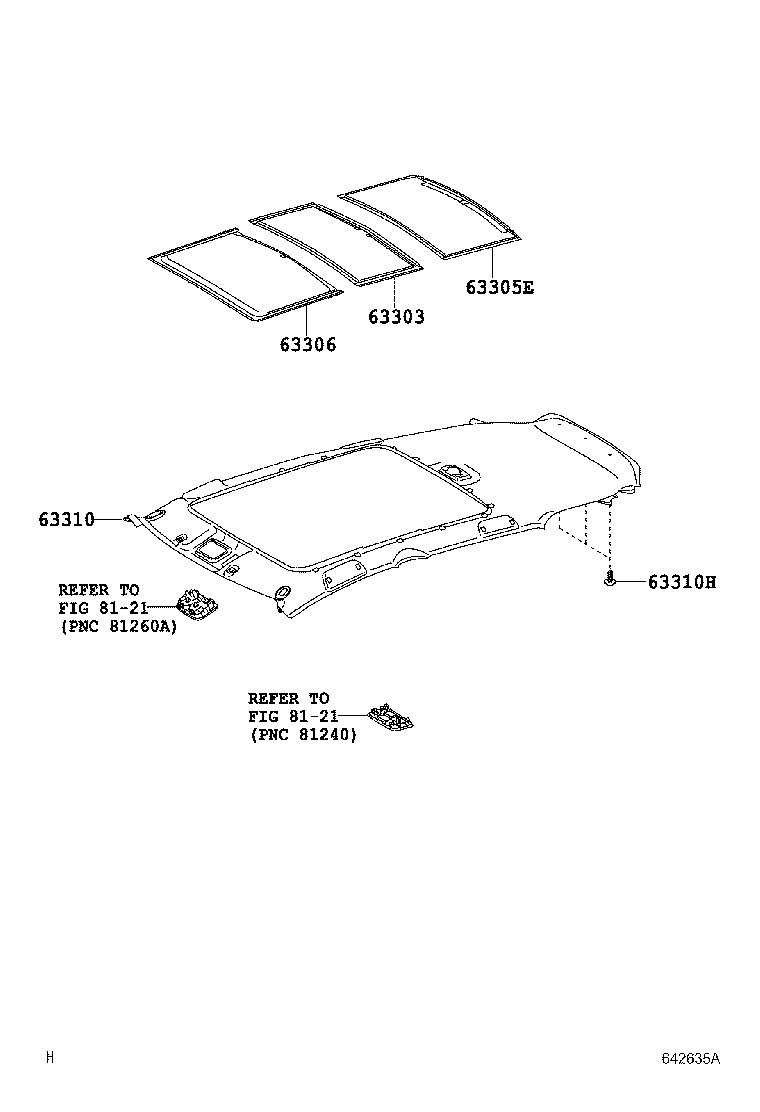

(1001- )

Click highlighted areas on diagram

ｱﾘ(ﾑｰﾝﾙｰﾌ)

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-52560B0	NCP10#,SCP100 LT.GRAY,TRIM1#	12/2007 - 01/2010	1
63310-52560B0	NCP10#,SCP100 LT.GRAY,TRIM10,11,4#	09/2005 - 12/2007	1
63313-52050B0	NCP10#,SCP100 LT.GRAY,TRIM1#	01/2010 - 08/2010	1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B6	NCP10#..G GRAY,TRIM10,11	09/2005 - 12/2007	3
90467-05164B6	NCP10#,SCP100 GRAY,TRIM1#	12/2007 - 08/2010	3
Linked diagrams
8121
