NCP105-CHPGK (2005)
Toyota Ractis
Production
Sep 2005
-
Dec 2007
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

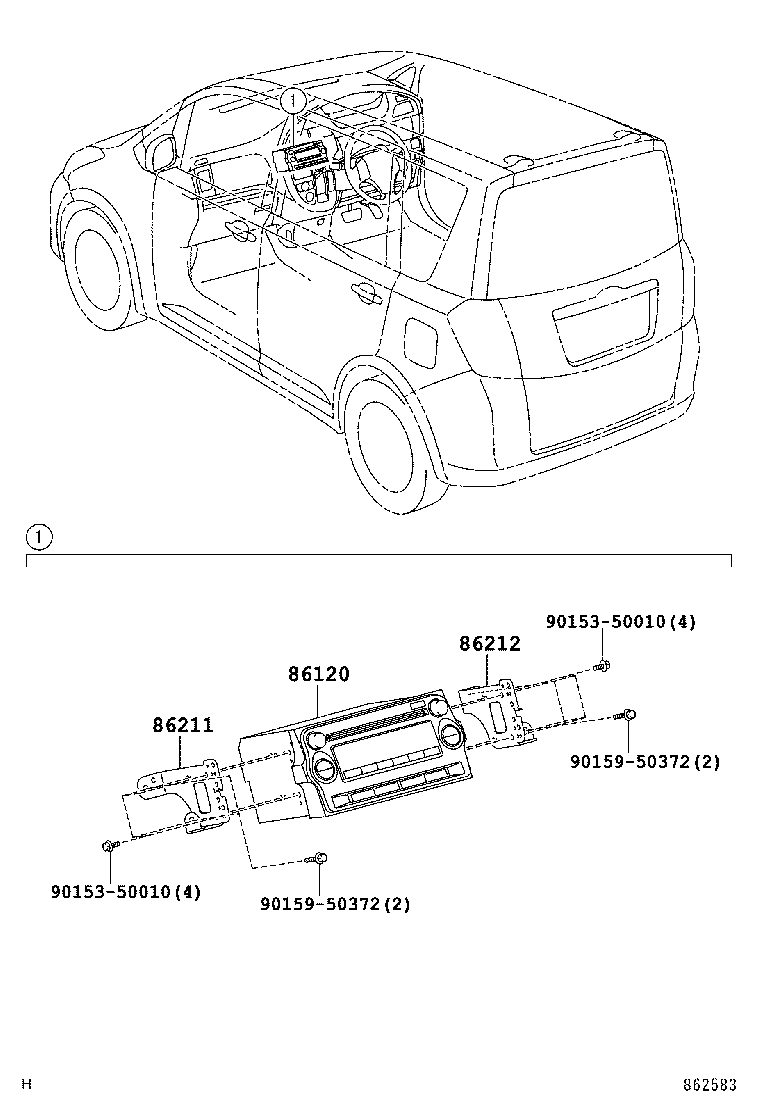

ILLUST NO. 1 OF 2(0509- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-52610 |
NCP10#,SCP100 FUJITSU TEN,ｵｰﾃﾞｨｵ−CD/AM/FM 2DIN 6ｽﾋﾟｰｶ |
1 | ||
| 86120-52610 |
NCP10#,SCP100 FUJITSU TEN |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-52201 |
NCP10#,SCP100 |
1 | ||
| 86211-52200 |
NCP10#,SCP100 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-52210 |
NCP10#,SCP100 |
1 | ||
| 86212-52211 |
NCP10#,SCP100 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50372 | ||||

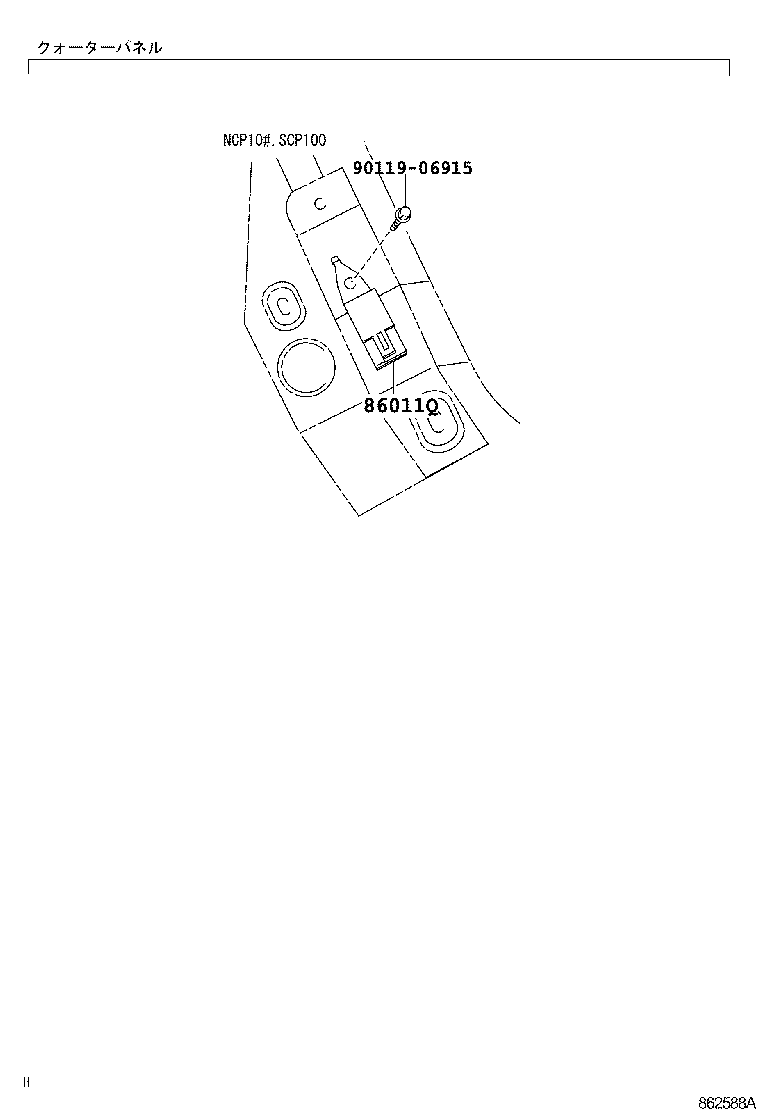

ILLUST NO. 2 OF 2(0509- )
Click highlighted areas on diagram
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04148 |
NCP10#,SCP100 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
