NCP105-CHPGK (2005)

Toyota Ractis

Production Sep 2005 - Dec 2007
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )

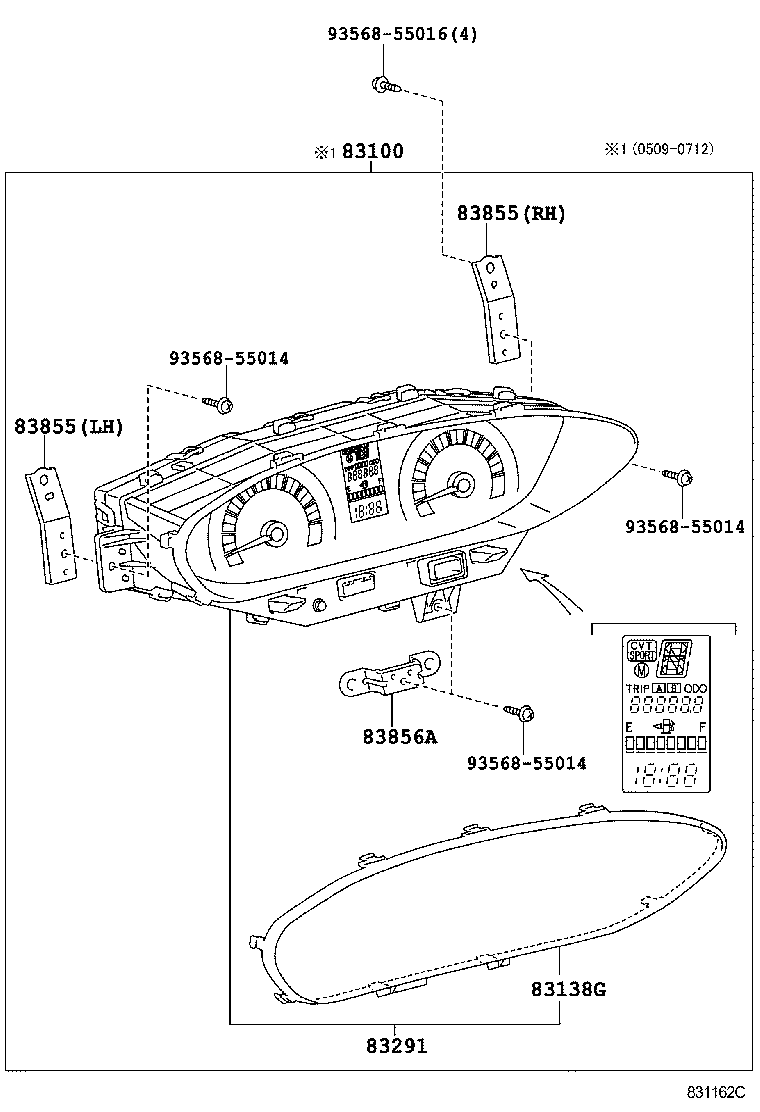

Click highlighted areas on diagram

diagram 83100 83138G 83291 83855 83855 83856A 9356855014 9356855014 9356855014 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-52D90

NCP10#..G

DENSO,Sﾊﾟｯｹｰｼﾞ

 1
83800-52D80

NCP10#,SCP100

DENSO

 1
83138G - GLASS, COMBINATION METER
83852-52D80

NCP10#,SCP100

 1
83291 - COMPUTER, COMBINATION METER
83801-52D80

NCP10#,SCP100

DENSO

 1
83801-52D90

NCP10#..G

DENSO,Sﾊﾟｯｹｰｼﾞ

 1
83855 - BRACKET, COMBINATION METER, NO.1
83855-52E00

NCP10#,SCP100

左側

 1
83855-52D90

NCP10#,SCP100

右側

 1
83855 - BRACKET, COMBINATION METER, NO.1
83855-52E00

NCP10#,SCP100

左側

 1
83855-52D90

NCP10#,SCP100

右側

 1
83856A - BRACKET, COMBINATION METER, NO.2
83855-52D80

NCP10#,SCP100

 1
Common parts
93568-55014
93568-55016
