NCP105-CHPGK (2005)
Toyota Ractis
Production
Sep 2005
-
Dec 2007
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )

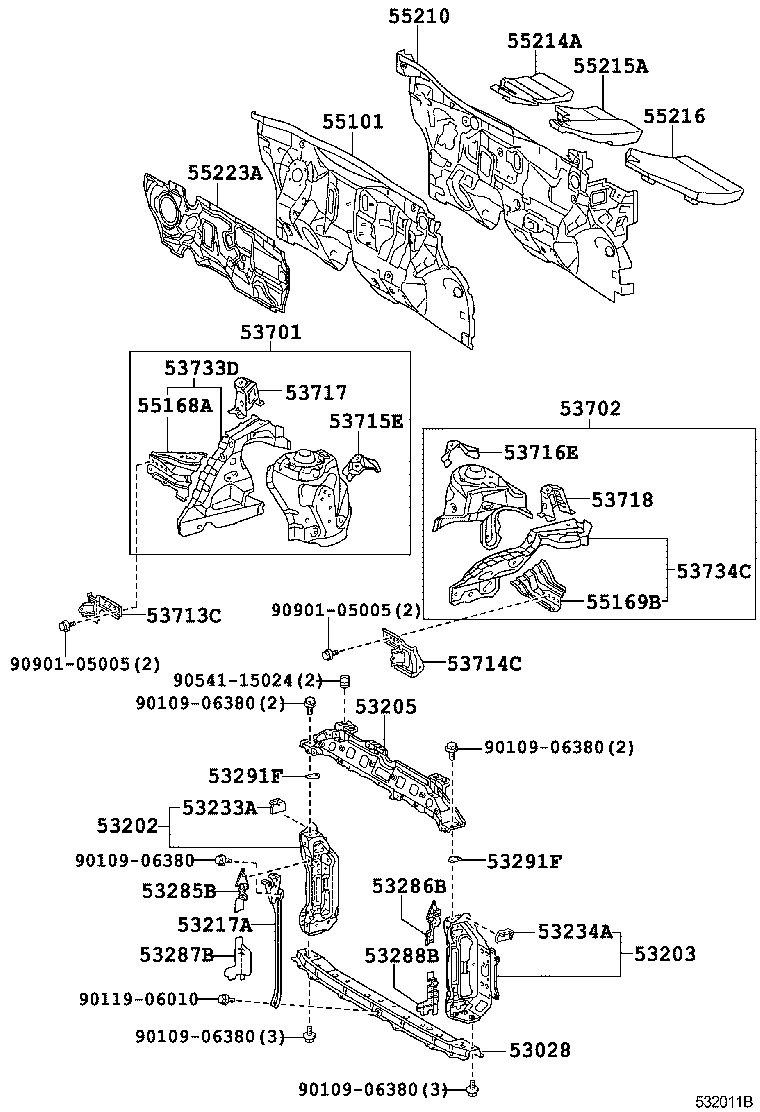

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-52070 |
NCP10#,SCP100 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-52901 |
NCP10#,SCP100 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-52901 |
NCP10#,SCP100 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-52090 |
NCP10#,SCP100 |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 52085-52010 |
NCP10#,SCP100 |
1 | ||
| 53233A - BRACKET, HEADLAMP, NO.1 RH | ||||
| 53233-52010 |
NCP10#,SCP100 |
1 | ||
| 53234A - BRACKET, HEADLAMP, NO.1 LH | ||||
| 53234-52020 |
NCP10#,SCP100 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-52220 |
NCP10#,SCP100 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-52160 |
NCP10#,SCP100 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-52040 |
NCP10#,SCP100 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-52040 |
NCP10#,SCP100 |
1 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-52070 |
NCP10#,SCP100 |
2 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-52070 |
NCP10#,SCP100 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-52170 |
NCP10#,SCP100 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-52170 |
NCP10#,SCP100 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53705-52020 |
NCP10#,SCP100 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53706-52020 |
NCP10#,SCP100 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-52030 |
NCP10#,SCP100 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-52030 |
NCP10#,SCP100 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53703-52020 |
NCP10#,SCP100 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53704-52060 |
NCP10#,SCP100 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53707-52030 |
NCP10#,SCP100 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53708-52030 |
NCP10#,SCP100 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-52570 |
NCP10#,SCP100 |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-52130 |
NCP10#,SCP100 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-52130 |
NCP10#,SCP100 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-52190 |
NCP10#,SCP100 |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-52150 |
NCP10#,SCP100 |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-52120 |
NCP10#,SCP100 |
1 | ||
| 55216 - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-52050 |
NCP10#,SCP100 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-52080 |
NCP10#,SCP100 |
1 | ||
| Common parts | ||||
| 90109-06380 | ||||
| 90119-06010 | ||||
| 90541-15024 | ||||
| 90901-05005 | ||||
