NCP105-CHPGK (2005)
Toyota Ractis
Production
Sep 2005
-
Dec 2007
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )

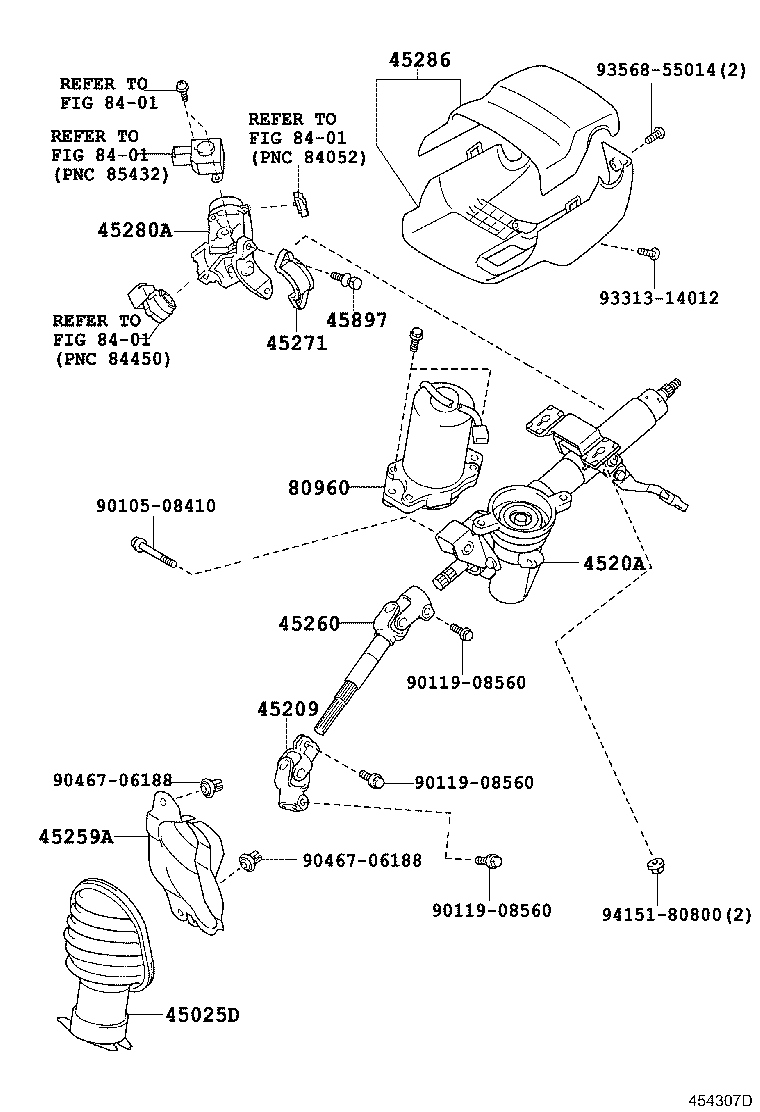

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52160 |
NCP105 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52070 |
NCP10#,SCP100 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-52040 |
NCP10#..G Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 4520A-52030 |
NCP10#..G |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52010 |
NCP10#,SCP100 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52221 |
NCP10#,SCP100 |
1 | ||
| 45260-52220 |
NCP10#,SCP100 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52030 |
NCP10#,SCP100 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-22510 |
NCP10#,SCP100 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-52931B0 |
NCP10#..G DK.GRAY,TRIM10,11 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NCP10#,SCP100 |
2 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-52040 |
NCP10#,SCP100 |
1 | ||
| Common parts | ||||
| 90105-08410 | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0509- )

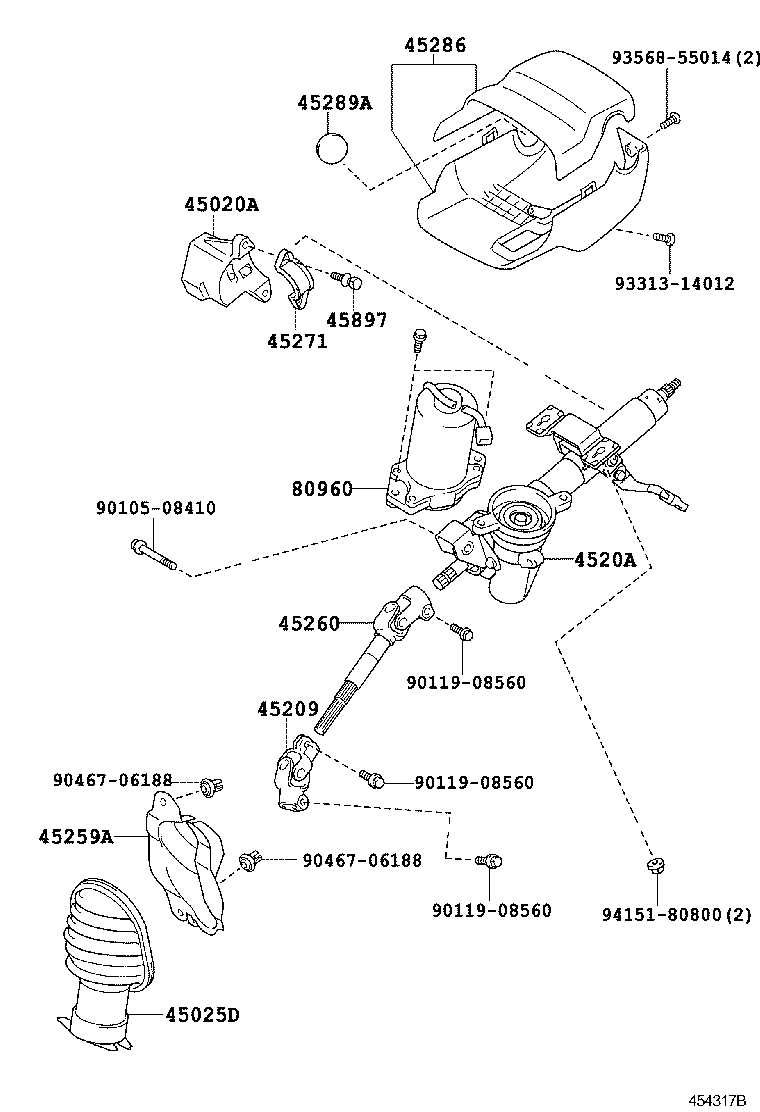

Click highlighted areas on diagram
ｱﾘ(ｽﾏｰﾄｷｰ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-52140 |
NCP10#,SCP100 Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52160 |
NCP105 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52070 |
NCP10#,SCP100 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-52040 |
NCP10#..G Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 4520A-52030 |
NCP10#..G |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52010 |
NCP10#,SCP100 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52221 |
NCP10#,SCP100 |
1 | ||
| 45260-52220 |
NCP10#,SCP100 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52030 |
NCP10#,SCP100 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-52931B0 |
NCP10#..G DK.GRAY,TRIM10,11 |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-52010B0 |
NCP10#,SCP100 Lﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM10,11 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NCP10#,SCP100 |
2 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-52040 |
NCP10#,SCP100 |
1 | ||
| Common parts | ||||
| 90105-08410 | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
