NCP105-CHPGK (2005)
Toyota Ractis
Production
Sep 2005
-
Dec 2007
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )1NZFE..NCP105

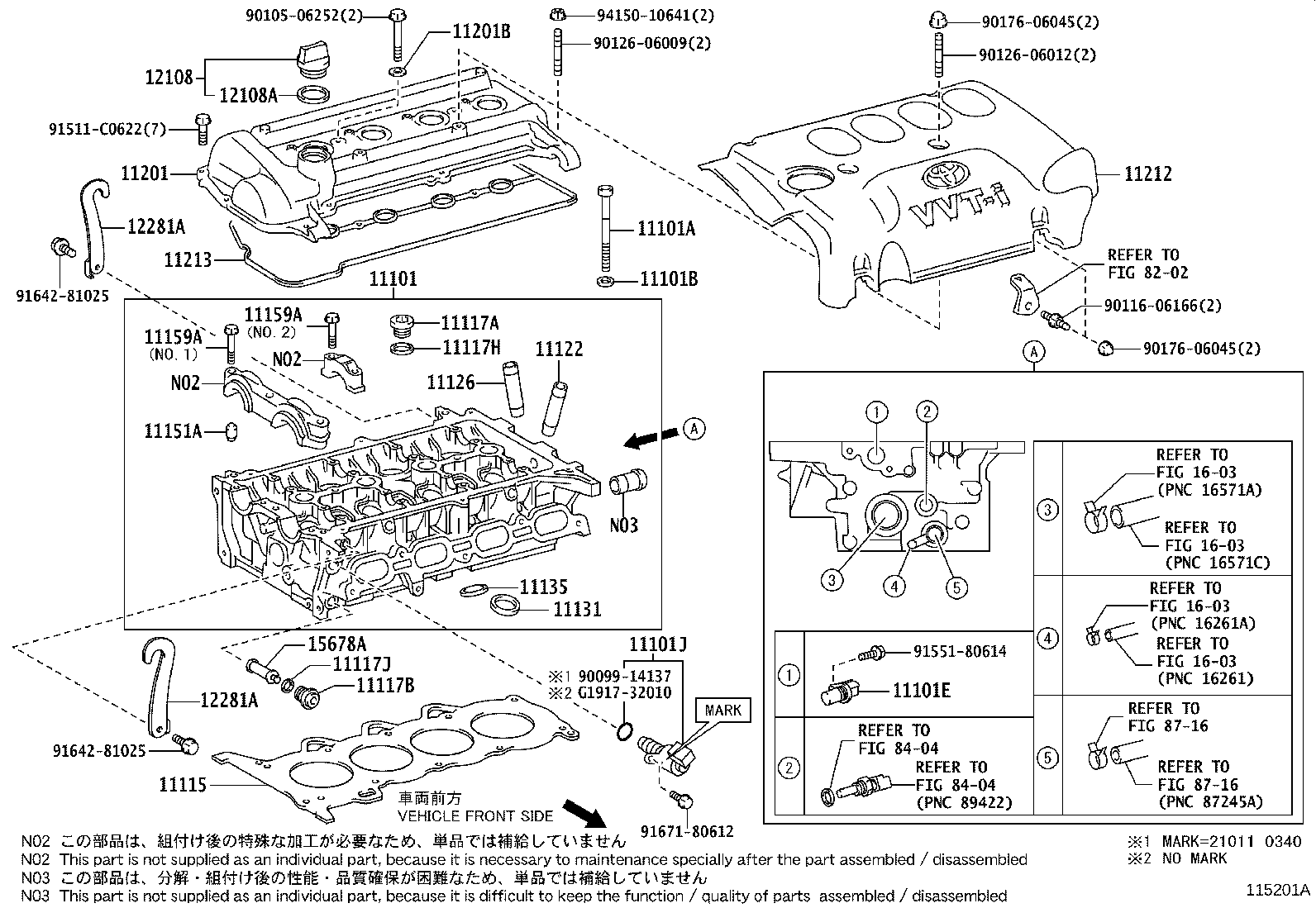

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-21033 |
1NZFE..NCP105 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02126 |
1NZFE..NCP10# |
10 | ||
| 90910-02170 |
1NZFE..NCP10# |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-09024 |
1NZFE..NCP10# |
10 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05024 |
1NZFE..NCP10# |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-21011 |
1NZFE..NCP10# |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-21050 |
1NZFE..NCP10# |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-20002 |
1NZFE..NCP105 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-14013 |
1NZFE..NCP10# |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
1NZFE..NCP105 |
1 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-14009 |
1NZFE..NCP10# |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-21010 |
1NZFE..NCP105 STD |
8 | ||
| 11123-21010 |
1NZFE..NCP105 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-21010 |
1NZFE..NCP105 O/S 0.05 |
8 | ||
| 11122-21010 |
1NZFE..NCP105 STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-21020 |
1NZFE..NCP10# STD |
8 | ||
| 11132-21020 |
1NZFE..NCP10# O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-21040 |
1NZFE..NCP105 STD |
8 | ||
| 11136-21040 |
1NZFE..NCP105 O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90250-06001 |
1NZFE..NCP10# 長さ=14,外径=6 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1NZFE..NCP10# NO.2 |
16 | ||
| 90119-08A29 |
1NZFE..NCP10# NO.1 |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1NZFE..NCP10# NO.2 |
16 | ||
| 90119-08A29 |
1NZFE..NCP10# NO.1 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-21050 |
1NZFE..NCP105 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06013 |
1NZFE..NCP105 |
2 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-21031 |
1NZFE..NCP105 |
1 | ||
| 11212-21032 |
1NZFE..NCP105 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-21011 |
1NZFE..NCP105 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
1NZFE..NCP10# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1NZFE..NCP10# |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-21010 |
1NZFE..NCP10# |
2 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-21010 |
1NZFE..NCP10# |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
1NZFE..NCP10# |
1 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90105-06252 | ||||
| 90116-06166 | ||||
| 90126-06009 | ||||
| 90126-06012 | ||||
| 90176-06045 | ||||
| 91511-C0622 | ||||
| 91551-80614 | ||||
| 91642-81025 | ||||
| 91671-80612 | ||||
| 94150-10641 | ||||
| G1917-32010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8202 | ||||
| 8404 | ||||
| 8716 | ||||
