NCP100-CHXGK (2005)
Toyota Ractis
Production
Sep 2005
-
Dec 2007
Engine
1NZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )

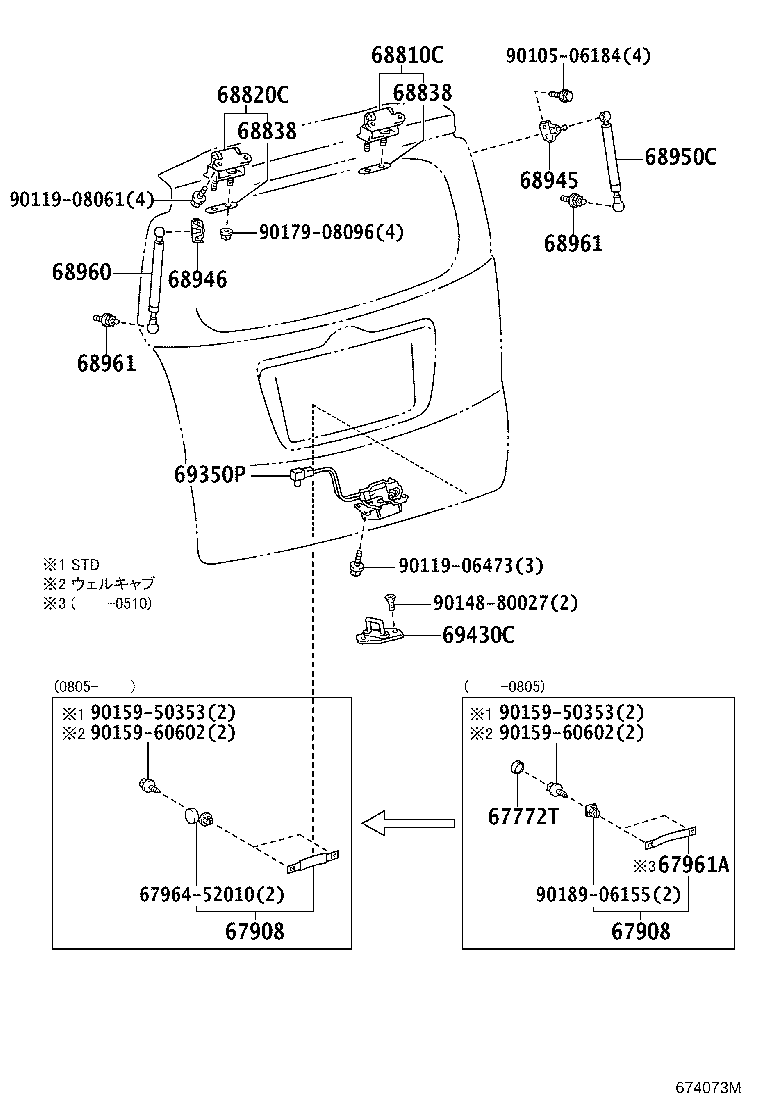

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67772T - CAP, DOOR TRIM RETAINER | ||||
| 67772-52010 |
NCP10#,SCP100 |
2 | ||
| 67908 - STRAP SUB-ASSY, BACK DOOR PULL | ||||
| 67908-52011 |
NCP10#,SCP100 |
1 | ||
| 67908-52010 |
NCP10#,SCP100 |
1 | ||
| 67908 - STRAP SUB-ASSY, BACK DOOR PULL | ||||
| 67908-52011 |
NCP10#,SCP100 |
1 | ||
| 67908-52010 |
NCP10#,SCP100 |
1 | ||
| 67961A - STRAP, BACK DOOR PULL | ||||
| 67961-52010 |
NCP10#,SCP100 |
1 | ||
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-52080 |
NCP10#,SCP100 |
1 | ||
| 68810-21050 |
NCP10#,SCP100 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-21050 |
NCP10#,SCP100 |
1 | ||
| 68810-52080 |
NCP10#,SCP100 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-44020 |
NCP10#,SCP100 厚さ=1.0 |
2 | ||
| 68838-52020 |
NCP10#,SCP100 厚さ=1.6 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-44020 |
NCP10#,SCP100 厚さ=1.0 |
2 | ||
| 68838-52020 |
NCP10#,SCP100 厚さ=1.6 |
2 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-52060 |
NCP10#,SCP100 |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68945-52060 |
NCP10#,SCP100 |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-0W411 |
NCP10#,SCP100 *LULP |
1 | ||
| 68950-0W401 |
NCP10#,SCP100 |
1 | ||
| 68950-0W410 |
NCP10#,SCP100 *LULP |
1 | ||
| 68950-0W400 |
NCP10#,SCP100 |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-0W400 |
NCP10#,SCP100 |
1 | ||
| 68960-0W411 |
NCP10#,SCP100 *LULP |
1 | ||
| 68960-0W410 |
NCP10#,SCP100 *LULP |
1 | ||
| 68960-0W401 |
NCP10#,SCP100 |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-10030 |
NCP10#,SCP100 |
2 | ||
| 68961-20140 |
NCP10#,SCP100 |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-10030 |
NCP10#,SCP100 |
2 | ||
| 68961-20140 |
NCP10#,SCP100 |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-52320 |
NCP10#,SCP100 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-20160 |
NCP100,SCP100 ｳｪﾙｷｬﾌﾞ(ｽﾛｰﾌﾟ=障害者向け) |
1 | ||
| 69430-20160 |
NCP10#,SCP100 |
1 | ||
| 69430-20160 |
NCP100,SCP100 ｳｪﾙｷｬﾌﾞ(ｽﾛｰﾌﾟ=一般向け) |
1 | ||
| Common parts | ||||
| 67964-52010 | ||||
| 90105-06184 | ||||
| 90119-06473 | ||||
| 90119-08061 | ||||
| 90148-80027 | ||||
| 90159-50353 | ||||
| 90159-60602 | ||||
| 90179-08096 | ||||
| 90189-06155 | ||||
