NCP100-CHXGK (2005)
Toyota Ractis
(0509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

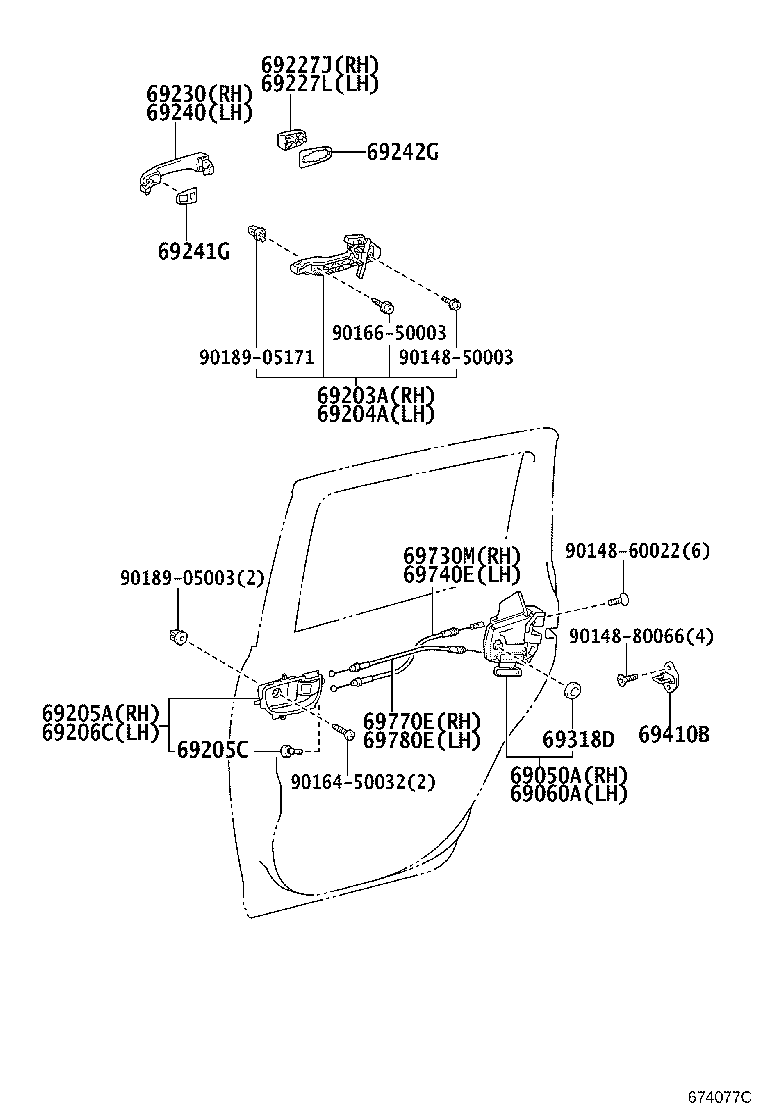

| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69050-52190 |
NCP10#,SCP100 |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69060-52200 |
NCP10#,SCP100 |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-13040 |
NCP10#,SCP100 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-13040 |
NCP10#,SCP100 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-52150B0 |
NCP10#..G Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 69205-52140B0 |
NCP10#,SCP100 DK.GRAY,TRIM10,11,4# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
NCP10#,SCP100 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-52150B0 |
NCP10#..G Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 69206-52140B0 |
NCP10#,SCP100 DK.GRAY,TRIM10,11,4# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-42070A1 |
NCP10#,SCP100 WHITE PEARL CS.,064 |
1 | ||
| 69227-42070P0 |
NCP10#,SCP100 SILVER M.M.,1E7 |
1 | ||
| 69227-42070C2 |
NCP10#,SCP100 BLACK MC.,209 |
1 | ||
| 69227-42070G8 |
NCP10#,SCP100 LT.GREEN ME.,6U5 |
1 | ||
| 69227-42070R4 |
NCP10#..G HIDｾﾚｸｼｮﾝ *(D),*(G),*(M),*(N),LT.BLUE M.M.,8S9 |
1 | ||
| 69227-42070P4 |
NCP10#,SCP100 GRAY ME.,1G2 |
1 | ||
| 69227-42070A8 |
NCP10#,SCP100 WHITE,068 |
1 | ||
| 69227-42070R7 |
NCP10#,SCP100 BLUE ME.,8T4 |
1 | ||
| 69227-42070X0 |
NCP10#,SCP100 SUPER RED 5,3P0 |
1 | ||
| 69227-42070H6 |
NCP10#,SCP100 ｱｸｱｾﾚｸｼｮﾝ*(A)*(E)*(F)*(I)*(J)*(K)*(X)*(Y,AQUA M.M.,774 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-42070P4 |
NCP10#,SCP100 GRAY ME.,1G2 |
1 | ||
| 69227-42070R4 |
NCP10#..G HIDｾﾚｸｼｮﾝ *(D),*(G),*(M),*(N),LT.BLUE M.M.,8S9 |
1 | ||
| 69227-42070C2 |
NCP10#,SCP100 BLACK MC.,209 |
1 | ||
| 69227-42070X0 |
NCP10#,SCP100 SUPER RED 5,3P0 |
1 | ||
| 69227-42070A8 |
NCP10#,SCP100 WHITE,068 |
1 | ||
| 69227-42070H6 |
NCP10#,SCP100 ｱｸｱｾﾚｸｼｮﾝ*(A)*(E)*(F)*(I)*(J)*(K)*(X)*(Y,AQUA M.M.,774 |
1 | ||
| 69227-42070R7 |
NCP10#,SCP100 BLUE ME.,8T4 |
1 | ||
| 69227-42070A1 |
NCP10#,SCP100 WHITE PEARL CS.,064 |
1 | ||
| 69227-42070G8 |
NCP10#,SCP100 LT.GREEN ME.,6U5 |
1 | ||
| 69227-42070P0 |
NCP10#,SCP100 SILVER M.M.,1E7 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69211-12220P4 |
NCP10#,SCP100 GRAY ME.,1G2 |
1 | ||
| 69211-12220A7 |
NCP10#,SCP100 WHITE PEARL CS.,064 |
1 | ||
| 69211-12220A8 |
NCP10#,SCP100 WHITE,068 |
1 | ||
| 69211-52090J0 |
NCP10#,SCP100 BLUE ME.,8T4 |
1 | ||
| 69211-12220C2 |
NCP10#,SCP100 BLACK MC.,209 |
1 | ||
| 69211-12220X0 |
NCP10#,SCP100 SUPER RED 5,3P0 |
1 | ||
| 69211-52090J4 |
NCP10#..G HIDｾﾚｸｼｮﾝ *(D),*(G),*(M),*(N),LT.BLUE M.M.,8S9 |
1 | ||
| 69211-52090A0 |
NCP10#,SCP100 WHITE PEARL CS.,064 |
1 | ||
| 69211-52090H0 |
NCP10#,SCP100 ｱｸｱｾﾚｸｼｮﾝ*(A)*(E)*(F)*(I)*(J)*(K)*(X)*(Y,AQUA M.M.,774 |
1 | ||
| 69211-52090B1 |
NCP10#,SCP100 GRAY ME.,1G2 |
1 | ||
| 69211-12220P0 |
NCP10#,SCP100 SILVER M.M.,1E7 |
1 | ||
| 69211-52090A1 |
NCP10#,SCP100 WHITE,068 |
1 | ||
| 69211-52090G0 |
NCP10#,SCP100 LT.GREEN ME.,6U5 |
1 | ||
| 69211-52090B0 |
NCP10#,SCP100 SILVER M.M.,1E7 |
1 | ||
| 69211-12220G8 |
NCP10#,SCP100 LT.GREEN ME.,6U5 |
1 | ||
| 69211-52090D0 |
NCP10#,SCP100 SUPER RED 5,3P0 |
1 | ||
| 69211-52090C0 |
NCP10#,SCP100 BLACK MC.,209 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69211-12220A8 |
NCP10#,SCP100 WHITE,068 |
1 | ||
| 69211-12220C2 |
NCP10#,SCP100 BLACK MC.,209 |
1 | ||
| 69211-52090A1 |
NCP10#,SCP100 WHITE,068 |
1 | ||
| 69211-12220P0 |
NCP10#,SCP100 SILVER M.M.,1E7 |
1 | ||
| 69211-52090D0 |
NCP10#,SCP100 SUPER RED 5,3P0 |
1 | ||
| 69211-52090H0 |
NCP10#,SCP100 ｱｸｱｾﾚｸｼｮﾝ*(A)*(E)*(F)*(I)*(J)*(K)*(X)*(Y,AQUA M.M.,774 |
1 | ||
| 69211-52090J0 |
NCP10#,SCP100 BLUE ME.,8T4 |
1 | ||
| 69211-12220A7 |
NCP10#,SCP100 WHITE PEARL CS.,064 |
1 | ||
| 69211-12220G8 |
NCP10#,SCP100 LT.GREEN ME.,6U5 |
1 | ||
| 69211-52090G0 |
NCP10#,SCP100 LT.GREEN ME.,6U5 |
1 | ||
| 69211-52090J4 |
NCP10#..G HIDｾﾚｸｼｮﾝ *(D),*(G),*(M),*(N),LT.BLUE M.M.,8S9 |
1 | ||
| 69211-12220X0 |
NCP10#,SCP100 SUPER RED 5,3P0 |
1 | ||
| 69211-52090B0 |
NCP10#,SCP100 SILVER M.M.,1E7 |
1 | ||
| 69211-52090C0 |
NCP10#,SCP100 BLACK MC.,209 |
1 | ||
| 69211-52090A0 |
NCP10#,SCP100 WHITE PEARL CS.,064 |
1 | ||
| 69211-52090B1 |
NCP10#,SCP100 GRAY ME.,1G2 |
1 | ||
| 69211-12220P4 |
NCP10#,SCP100 GRAY ME.,1G2 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
NCP10#,SCP100 |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-42010 |
NCP10#,SCP100 |
2 | ||
| 69242-52020 |
NCP10#,SCP100 |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-47010 |
NCP10#,SCP100 |
2 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-47010 |
NCP10#,SCP100 |
2 | ||
| 69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER | ||||
| 69730-52120 |
NCP10#,SCP100 |
1 | ||
| 69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER | ||||
| 69730-52120 |
NCP10#,SCP100 |
1 | ||
| 69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K | ||||
| 69770-52040 |
NCP10#,SCP100 |
1 | ||
| 69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K | ||||
| 69770-52040 |
NCP10#,SCP100 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90164-50032 | ||||
| 90166-50003 | ||||
| 90189-05003 | ||||
| 90189-05171 | ||||
