LY151-QLQDS (1995)
Toyota Quick Delivery
Production
May 1995
-
May 1999
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(9505- )LY15#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33281C - PIN, LEVER LOCK | ||||
| 33281-16020 |
LY15# |
1 | ||
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10013 |
LY15# 長さ=17.08,外径=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
LY15# |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
LY15# |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12106 |
LY15# 長さ=52.3,NO.1 |
1 | ||
| 90501-16094 |
LY15# 長さ=38.4,NO.2 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12106 |
LY15# 長さ=52.3,NO.1 |
1 | ||
| 90501-16094 |
LY15# 長さ=38.4,NO.2 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
LY15# 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
LY15# 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 36311 - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36301-25010 |
LY15# |
1 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18071 |
LY15# |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13001 |
LY15# |
1 | ||
| 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-28010 |
LY15# |
1 | ||
| 36312G - PIN, SLOTTED SPRING | ||||
| 90254-05001 |
LY15# |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-28010 |
LY15# |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-28020 |
LY15# |
1 | ||
| 36361 - LEVER, TRANSFER SHIFT, INNER | ||||
| 36361-28010 |
LY15# |
1 | ||
| 36362A - LEVER, TRANSFER SHIFT, OUTER | ||||
| 36362-28011 |
LY15# |
1 | ||
| 36367 - SHAFT, TRANSFER SHIFT INNER LEVER | ||||
| 36367-28010 |
LY15# |
1 | ||
| 36367A - SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT) | ||||
| 90311-18006 |
LY15# |
1 | ||
| Common parts | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| 94612-11400 | ||||
| 94612-11800 | ||||
| 96160-00800 | ||||

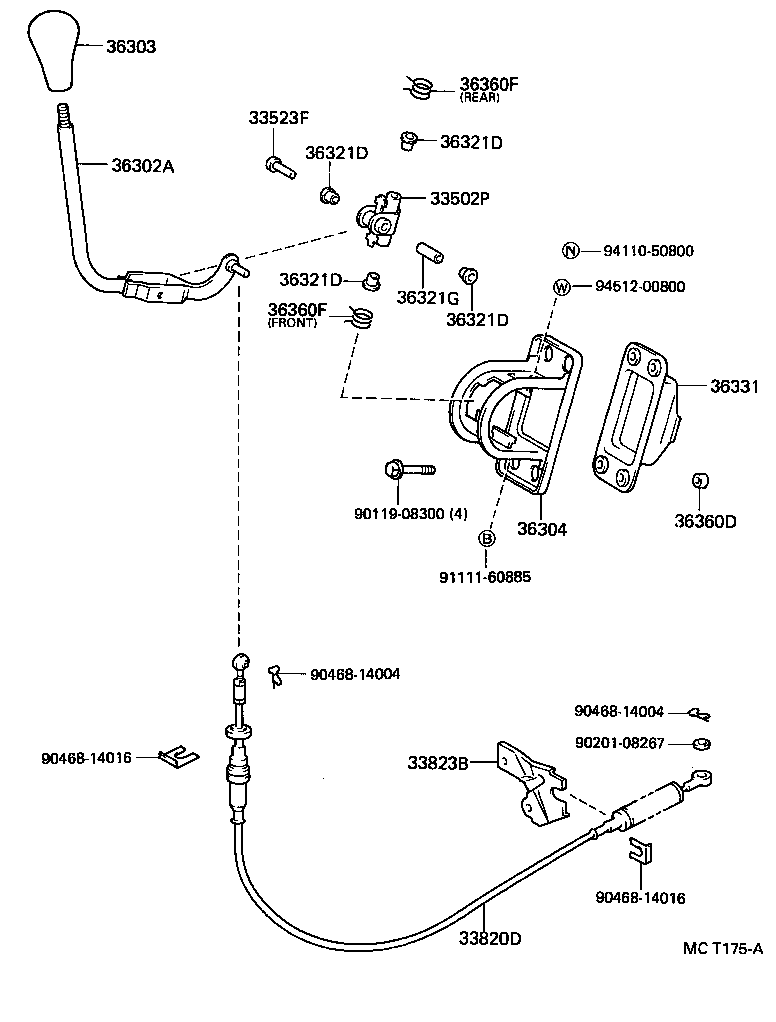

ILLUST NO. 1 OF 2(9505- )LY15#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502P - PLATE SUB-ASSY, SHIFT LEVER (FOR TRANSFER) | ||||
| 33502-26030 |
LY15# |
1 | ||
| 33523F - PIN, SHIFT LEVER (FOR TRANSFER) | ||||
| 33523-26030 |
LY15# |
1 | ||
| 33820D - CABLE ASSY, TRANSFER CONTROL | ||||
| 33820-26030 |
LY15# |
1 | ||
| 33823B - BRACKET, TRANSFER CONTROL CABLE | ||||
| 33823-26020 |
LY15# |
1 | ||
| 36302A - LEVER SUB-ASSY, TRANSFER SHIFT, NO.1 | ||||
| 36302-26040 |
LY15# |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-26030 |
LY15# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-26010 |
LY15# |
1 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
LY15# |
4 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
LY15# |
4 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
LY15# |
4 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
LY15# |
4 | ||
| 36321G - COLLER (FOR TRANSFER SHIFT LEVER) | ||||
| 90387-08080 |
LY15# |
1 | ||
| 36331 - BOOT, TRANSFER SHIFT LEVER | ||||
| 36331-26010 |
LY15# |
1 | ||
| 36360D - COLLAR (FOR TRANSFER SHIFT LEVER) | ||||
| 90387-09011 |
LY15# |
4 | ||
| 36360F - SPRING, TORSION (FOR TRANSFER SHIFT LEVER RETAINER) | ||||
| 90508-35028 |
LY15# REAR |
1 | ||
| 90508-35019 |
LY15# FRONT |
1 | ||
| 36360F - SPRING, TORSION (FOR TRANSFER SHIFT LEVER RETAINER) | ||||
| 90508-35028 |
LY15# REAR |
1 | ||
| 90508-35019 |
LY15# FRONT |
1 | ||
| Common parts | ||||
| 90119-08300 | ||||
| 90201-08267 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91111-60885 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
