LY151-QLQDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9905)3L ; (9905- )5L

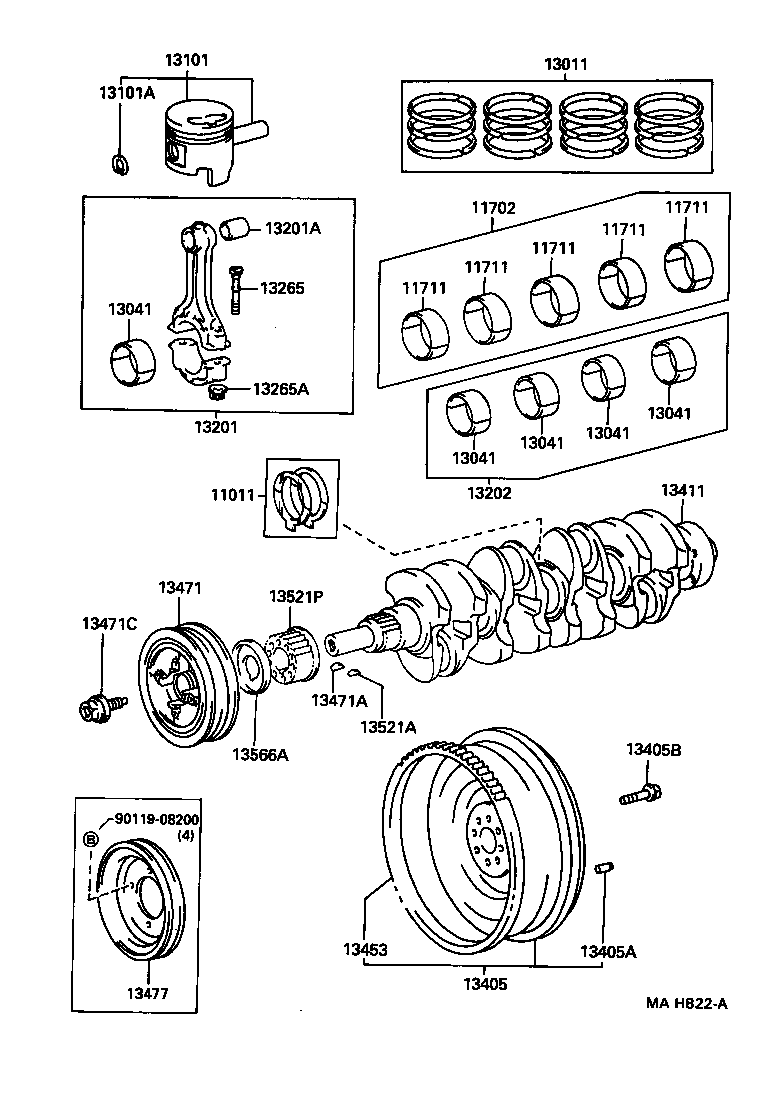

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13477 13521A 13521P 13566A 9011908200
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-54020

3L,5L..LH8#,LY15#

STD

 1
11012-54020

3L,5L..LH8#,LY15#

O/S 0.125

 1
11013-54020

3L,5L..LH8#,LY15#

O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11705-54061

3L,5L..LH8#,LY15#

U/S 0.50

 1
11704-54061

3L,5L..LH8#,LY15#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-5406101

3L,5L..LH8#,LY15#

MARK 1

 5
11701-5406103

3L,5L..LH8#,LY15#

MARK 3

 5
11701-5406102

3L,5L..LH8#,LY15#

MARK 2

 5
11711 - BEARING, CRANKSHAFT
11701-5406101

3L,5L..LH8#,LY15#

MARK 1

 5
11701-5406103

3L,5L..LH8#,LY15#

MARK 3

 5
11701-5406102

3L,5L..LH8#,LY15#

MARK 2

 5
11711 - BEARING, CRANKSHAFT
11701-5406101

3L,5L..LH8#,LY15#

MARK 1

 5
11701-5406103

3L,5L..LH8#,LY15#

MARK 3

 5
11701-5406102

3L,5L..LH8#,LY15#

MARK 2

 5
11711 - BEARING, CRANKSHAFT
11701-5406101

3L,5L..LH8#,LY15#

MARK 1

 5
11701-5406103

3L,5L..LH8#,LY15#

MARK 3

 5
11701-5406102

3L,5L..LH8#,LY15#

MARK 2

 5
11711 - BEARING, CRANKSHAFT
11701-5406101

3L,5L..LH8#,LY15#

MARK 1

 5
11701-5406103

3L,5L..LH8#,LY15#

MARK 3

 5
11701-5406102

3L,5L..LH8#,LY15#

MARK 2

 5
13011 - RING SET, PISTON
13011-54120

3L..LH81,LY151

STD

 1
13013-54120

3L..LH81,LY151

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-5404101

3L,5L..LH8#,LY15#

MARK 1

 4
13041-5404102

3L,5L..LH8#,LY15#

MARK 2

 4
13041-5404103

3L,5L..LH8#,LY15#

MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-5404101

3L,5L..LH8#,LY15#

MARK 1

 4
13041-5404102

3L,5L..LH8#,LY15#

MARK 2

 4
13041-5404103

3L,5L..LH8#,LY15#

MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-5404101

3L,5L..LH8#,LY15#

MARK 1

 4
13041-5404102

3L,5L..LH8#,LY15#

MARK 2

 4
13041-5404103

3L,5L..LH8#,LY15#

MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-5404101

3L,5L..LH8#,LY15#

MARK 1

 4
13041-5404102

3L,5L..LH8#,LY15#

MARK 2

 4
13041-5404103

3L,5L..LH8#,LY15#

MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-5404101

3L,5L..LH8#,LY15#

MARK 1

 4
13041-5404102

3L,5L..LH8#,LY15#

MARK 2

 4
13041-5404103

3L,5L..LH8#,LY15#

MARK 3

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-5410103

3L..LH81,LY151

STD,MARK 3

 4
13101-5410101

3L..LH81,LY151

STD,MARK 1

 4
13103-54101

3L..LH81,LY151

O/S 0.50

 4
13101-5410102

3L..LH81,LY151

STD,MARK 2

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-31001

3L,5L..LH8#,LY15#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-59105

3L..LH81,LY151

 4
13201-59106

3L,5L..LH8#,LY15#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73115

3L,5L..LH8#,LY15#

 4
13202 - BEARING SET, CONNECTING ROD
13205-54041

3L..LH81,LY151

U/S 0.50

 1
13204-54041

3L,5L..LH8#,LY15#

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-54020

3L..LH81,LY151

 8
13265-54021

3L,5L..LH8#,LY15#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-10123

3L,5L..LH8#,LY15#

 8
13405 - FLYWHEEL SUB-ASSY
13405-54080

3L,5L..LH8#,LY15#..MTM

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

3L,5L..LH8#,LY15#..MTM

長さ=23,外径=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-12109

3L,5L..LH8#,LY15#..MTM

 8
13411 - CRANKSHAFT
13401-54060

3L..LH81,LY151

 1
13401-54061

3L,5L..LH8#,LY15#

 1
13453 - GEAR, FLYWHEEL RING
13453-54010

3L,5L..LH8#,LY15#..MTM

 1
13471 - PULLEY, CRANKSHAFT
13408-54080

3L..LH81,LY151

 1
13408-54090

3L,5L..LH8#,LY15#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-30622

3L,5L..LH8#,LY15#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90901-19028

3L,5L..LH8#,LY15#

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-35030

3L,5L..LH8#,LY15#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-30622

3L,5L..LH8#,LY15#

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-54030

3L,5L..LH8#,LY15#

 1
13566A - GUIDE, TIMING BELT
13566-54040

3L,5L..LH8#,LY15#

 1
Common parts
90119-08200
