LH81VH-QLSDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )D

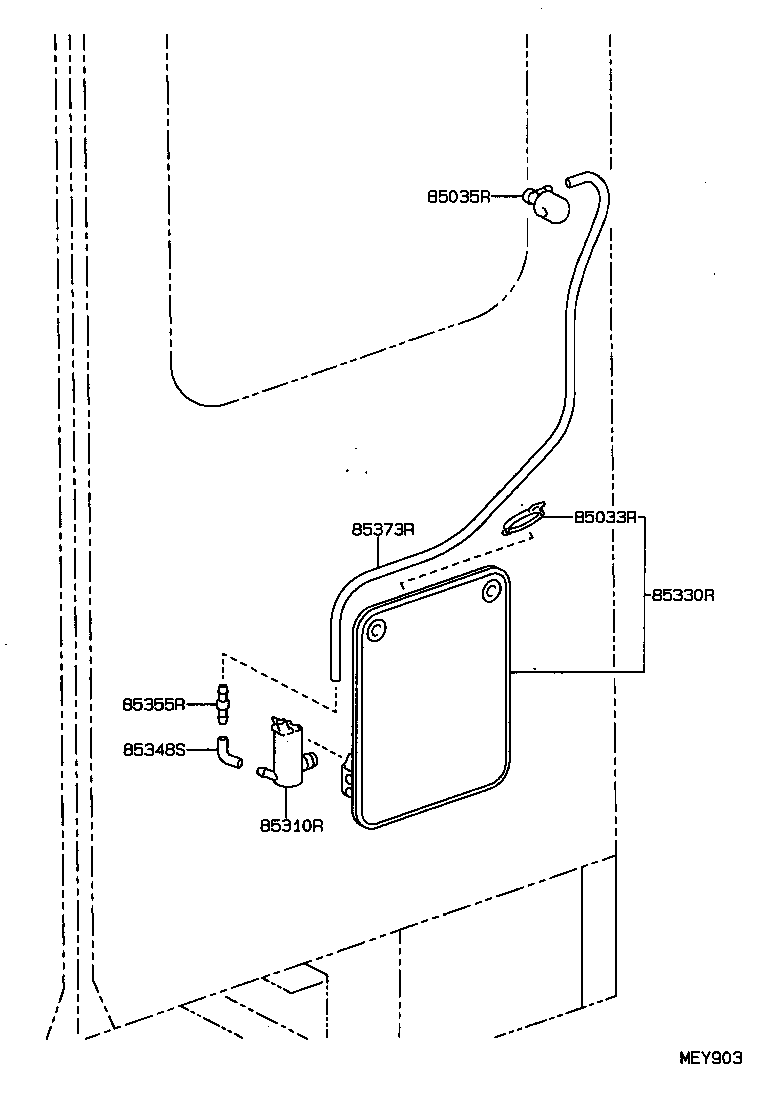

Click highlighted areas on diagram

diagram 85033R 85035R 85310R 85330R 85348S 85355R 85373R
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-22010

BU68,LH8#,LY15#..D

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85035-90D00

BU68,LH8#,LY15#..D

 1
85310R - MOTOR ASSY, REAR WASHER
85310-22080

LH8#,LY15#

 1
85330R - JAR ASSY, REAR WASHER
85331-90D00

LH8#,LY15#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

BU68,LH8#,LY15#..D

 1
85355R - VALVE, REAR WASHER HOSE
85031-30010

LH8#,LY15#

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06013

BU68,LH8#,LY15#..D

*H,L=800

 1
