LH81VH-QLSDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

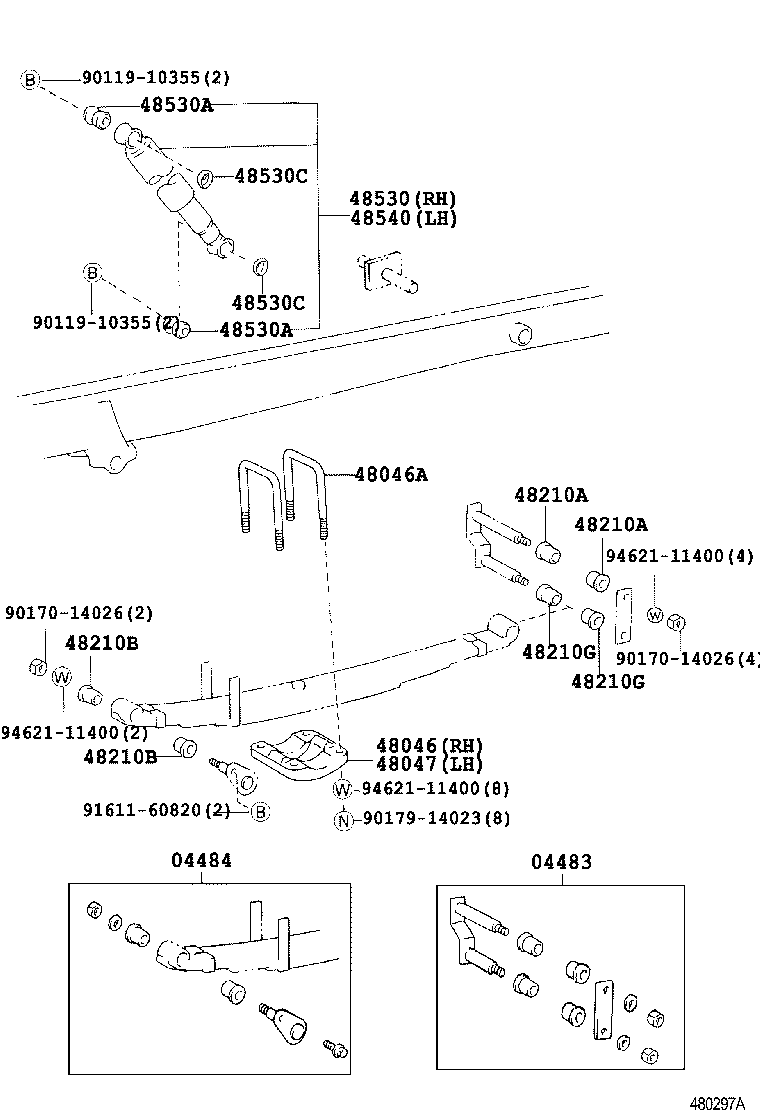

ILLUST NO. 1 OF 3(9505- )LH8#,LY15#

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48530 48530A 48530A 48530C 48530C 48540 9011910355 9011910355 9017014026 9017014026 9017914023 9161160820 9462111400 9462111400 9462111400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-26090

LH8#,LY15#

 2
04484 - PIN KIT, REAR SPRING
04484-26030

LH8#,LY15#

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-26080

LH8#,LY15#

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14031

LH8#

長さ=185

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-26080

LH8#,LY15#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18011

LH8#,LY15#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18011

LH8#,LY15#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

LH8#,LY15#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

LH8#,LY15#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LH8#,LY15#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LH8#,LY15#

 4
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80165

LH81

 1
48531-80496

LH8#

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16010

LH8#,LY15#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16010

LH8#,LY15#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LH8#,LY15#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LH8#,LY15#

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80165

LH81

 1
48531-80496

LH8#

 1
Common parts
90119-10355
90170-14026
90179-14023
91611-60820
94621-11400

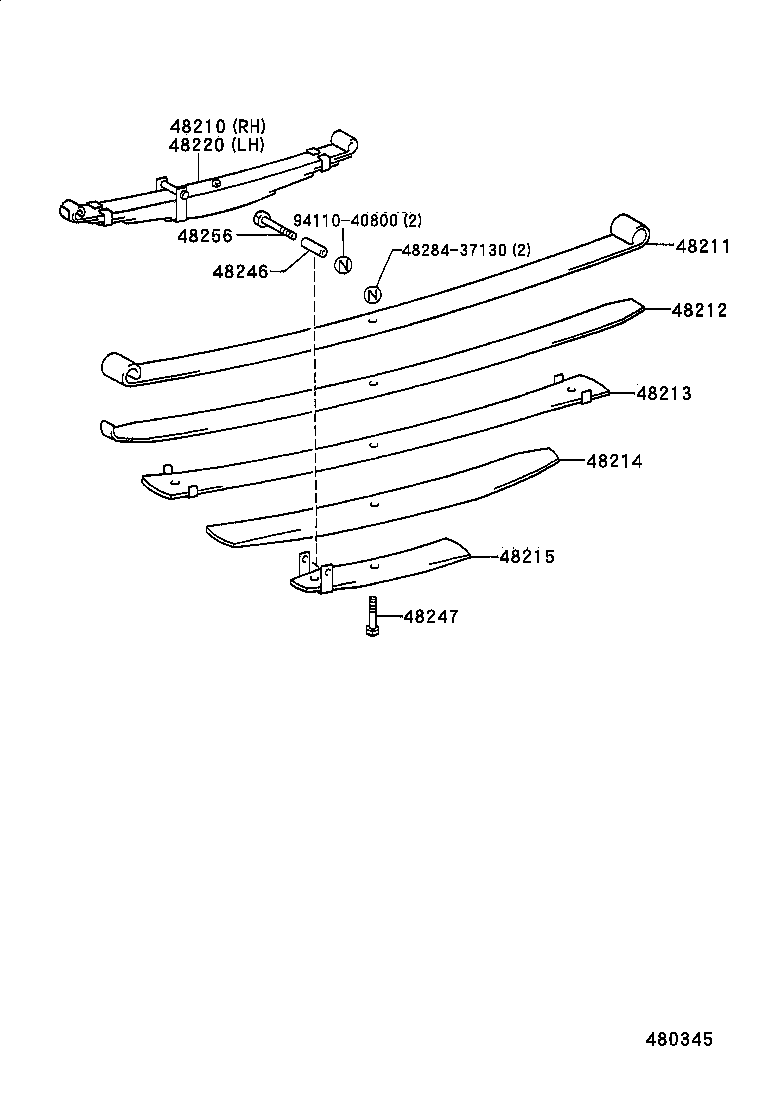

ILLUST NO. 2 OF 3(9505- )LH8#

Click highlighted areas on diagram

diagram 48210 48211 48212 48213 48214 48215 48220 48246 48247 48256 4828437130 9411040800
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-26440

LH8#

5枚ﾘｰﾌ

 1
48211 - LEAF, REAR SPRING, NO.1
48211-26440

LH8#

 2
48212 - LEAF, REAR SPRING, NO.2
48212-26440

LH8#

 2
48213 - LEAF, REAR SPRING, NO.3
48202-26440

LH8#

 2
48214 - LEAF, REAR SPRING, NO.4
48214-26440

LH8#

 2
48215 - LEAF, REAR SPRING, NO.5
48204-26440

LH8#

助手席側

 1
48203-26440

LH8#

運転席側

 1
48220 - SPRING ASSY, REAR LH
48220-26300

LH8#

5枚ﾘｰﾌ

 1
48246 - CASE, REAR SPRING CLIP BOLT
48246-26060

LH8#,LY15#

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36052

LH8#

 2
48247-36530

LH81

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-26010

LH8#,LY15#

 2
Common parts
48284-37130
94110-40800

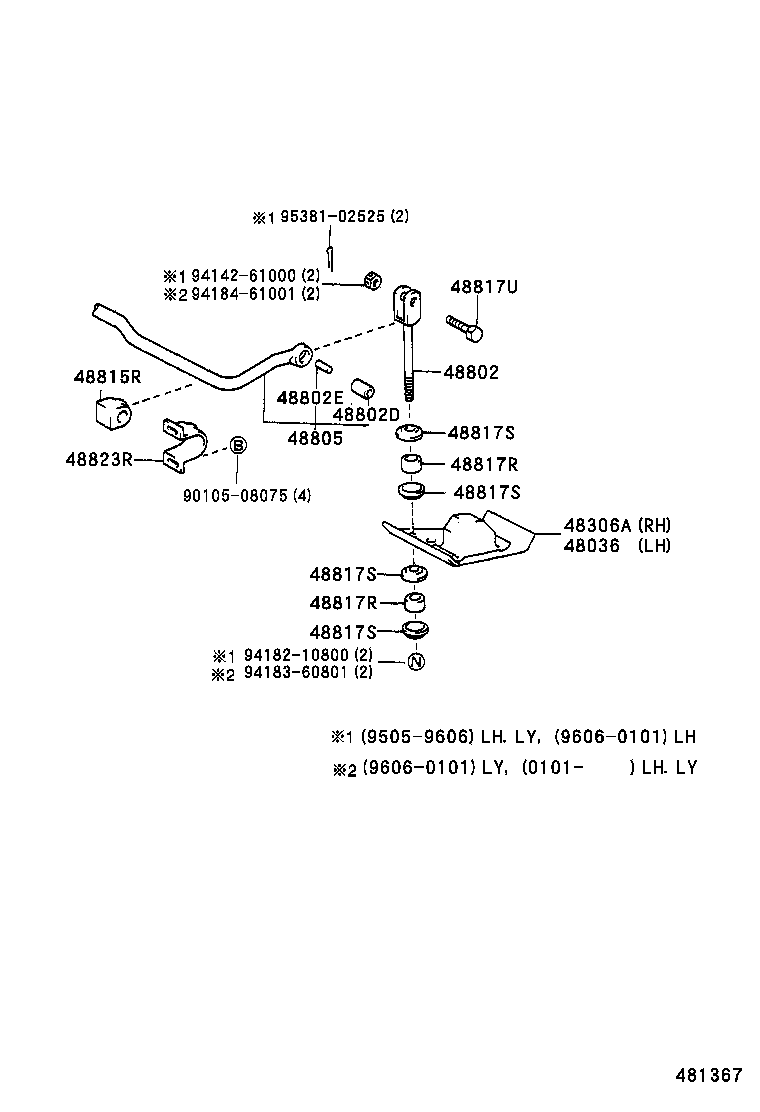

ILLUST NO. 3 OF 3(9505- )LH8#,LY15#

Click highlighted areas on diagram

diagram 48036 48306A 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48817S 48817U 48823R 9010508075 9414261000 9418210800 9418360801 9418461001 9538102525
Part # Description Qty Price
48036 - BUMPER SUB-ASSY, REAR SPRING, LH
48036-26010

LH8#,LY15#

 1
48306A - BUMPER SUB-ASSY, REAR SPRING, RH
48306-26080

LH8#,LY15#

 1
48802 - LINK SUB-ASSY, STABILIZER
48802-26040

LH8#,LY15#

 2
48802D - BUSH, STABILIZER LINK
90385-11021

LH8#,LY15#

 2
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10275

LH8#,LY15#

 2
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-26040

LH8#

 1
48815R - BUSH, STABILIZER(FOR REAR)
48818-36010

LH8#,LY15#

 2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-36010

BU68,LH8#,LY15#,RZU68

 4
48817R - CUSHION, STABILIZER(FOR REAR)
48817-36010

BU68,LH8#,LY15#,RZU68

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02015

BU68,LH8#,LY15#,RZU68

厚さ=1.2

 4
90948-02032

LH8#,LY15#

厚さ=1.6

 4
90948-02032

BU68,LH81,LY151

厚さ=1.6

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02015

BU68,LH8#,LY15#,RZU68

厚さ=1.2

 4
90948-02032

LH8#,LY15#

厚さ=1.6

 4
90948-02032

BU68,LH81,LY151

厚さ=1.6

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02015

BU68,LH8#,LY15#,RZU68

厚さ=1.2

 4
90948-02032

LH8#,LY15#

厚さ=1.6

 4
90948-02032

BU68,LH81,LY151

厚さ=1.6

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02015

BU68,LH8#,LY15#,RZU68

厚さ=1.2

 4
90948-02032

LH8#,LY15#

厚さ=1.6

 4
90948-02032

BU68,LH81,LY151

厚さ=1.6

 4
48817U - BOLT(FOR REAR STABILIZER)
90102-10013

LH81,LY151

 2
48823R - COVER, STABILIZER LINK(FOR REAR)
48823-36022

LH8#,LY15#

 2
Common parts
90105-08075
94142-61000
94182-10800
94183-60801
94184-61001
95381-02525
