LH81VH-QLSDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L..LH8#

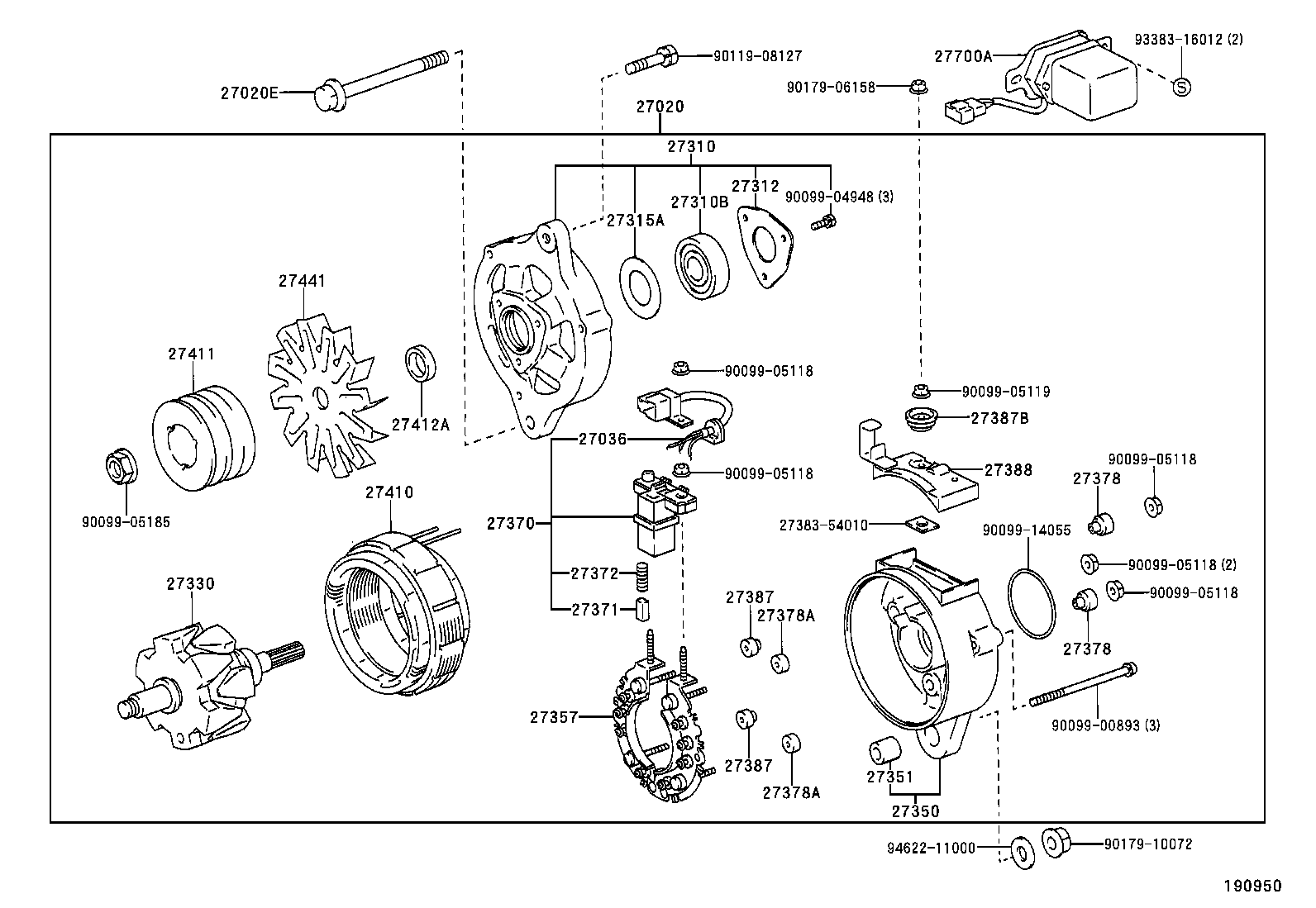

Click highlighted areas on diagram

12V 50A

diagram 27020 27020E 27036 27310 27310B 27312 27315A 27330 27350 27351 27357 27370 27371 27372 27378 27378 27378A 27378A 2738354010 27387 27387 27387B 27388 27410 27411 27412A 27441 27700A 9009900893 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9011908127 9017906158 9017910072 9338316012 9462211000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-54403

3L,5L..LH8#

12V 50A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10239

3L,5L..LH8#,LY15#

 1
90101-10231

3L..LH81,LY151

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54131

3L,5L..LH8#,LY15#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

3L,5L..LH8#,LY15#

 1
27312 - PLATE, RETAINER
27312-57060

3L,5L..LH8#,LY15#

 1
27315A - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

3L,5L..LH8#,LY15#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-54292

3L,5L..LH8#

 1
27350 - FRAME ASSY, RECTIFIER END
27350-54130

3L,5L..LH8#,LY15#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

3L,5L..LH8#,LY15#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-64070

3L,5L..LH8#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54250

3L,5L..LH8#

 1
27371 - BRUSH, ALTERNATOR
27371-54412

3L,5L..LH8#,LY15#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

3L,5L..LH8#,LY15#

 2
27378 - INSULATOR, ALTERNATOR, NO.1
27378-45020

3L,5L..LH8#,LY15#

 2
27378 - INSULATOR, ALTERNATOR, NO.1
27378-45020

3L,5L..LH8#,LY15#

 2
27378A - INSULATOR, ALTERNATOR, NO.2
27378-54010

3L,5L..LH8#,LY15#

 2
27378A - INSULATOR, ALTERNATOR, NO.2
27378-54010

3L,5L..LH8#,LY15#

 2
27387 - INSULATOR, TERMINAL
27387-54010

3L,5L..LH8#,LY15#

 2
27387 - INSULATOR, TERMINAL
27387-54010

3L,5L..LH8#,LY15#

 2
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-54310

3L,5L..LH8#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-54341

3L,5L..LH8#

 1
27410 - STATOR ASSY, ALTERNATOR
27410-41080

3L,5L..LH8#

 1
27411 - PULLEY, ALTERNATOR
27411-54351

3L,5L..LH8#,LY15#

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

3L,5L..LH8#,LY15#

 1
27441 - FAN, ALTERNATOR
27441-56090

3L,5L..LH8#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-35030

3L,5L..LH8#

 1
Common parts
27383-54010
90099-00893
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90119-08127
90179-06158
90179-10072
93383-16012
94622-11000
