LH81VH-QLQDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

Click highlighted areas on diagram

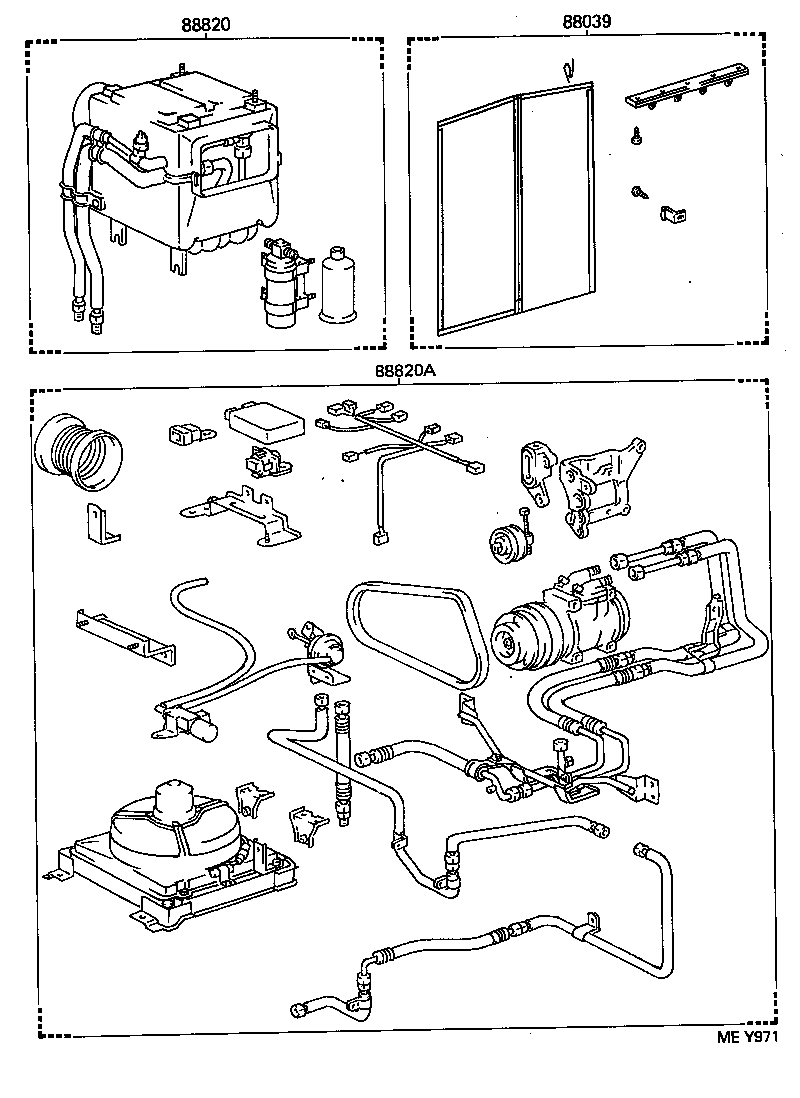

diagram 88039 88820 88820A
Part # Description Qty Price
88039 - ADDITIONAL KIT,AIRCONDITIONER
88039-90D00

LH8#,LY15#

 1
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-26060

LH8#,LY15#

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-26290

LH8#

 1
