LH81VH-QLQDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

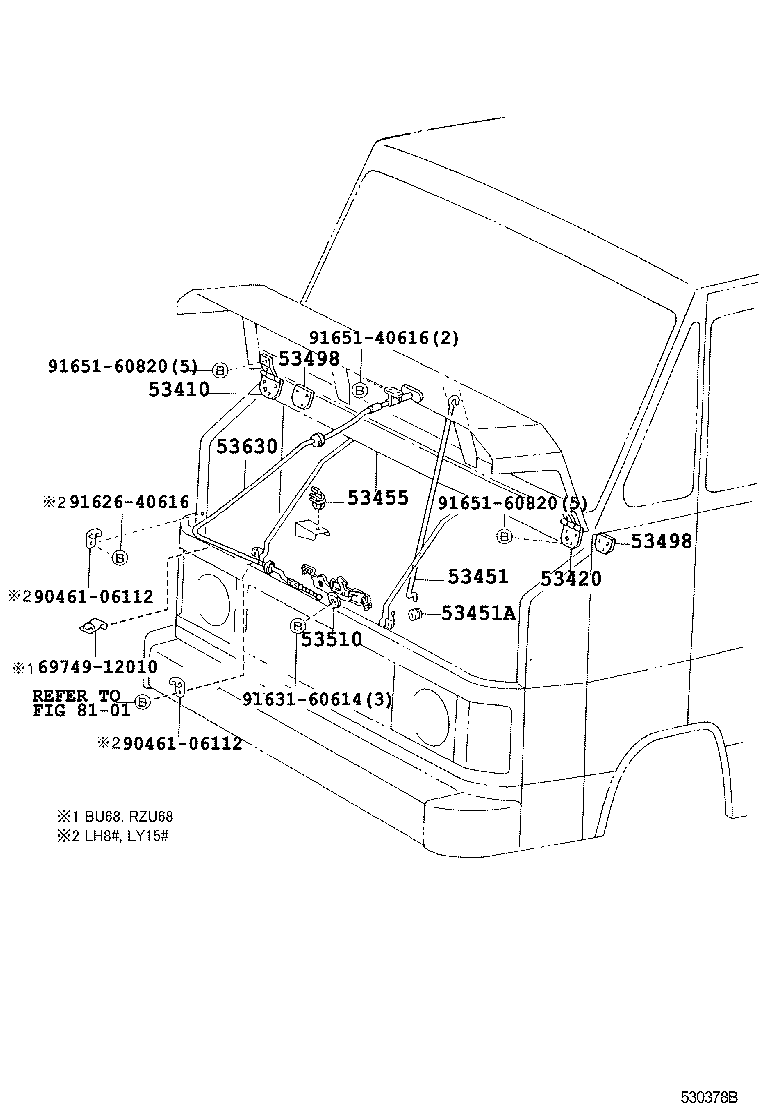

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53498 53498 53510 53630 6974912010 8101 9046106112 9046106112 9162640616 9163160614 9165140616 9165160820 9165160820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-90D00

LH8#,LY15#

 1
53420 - HINGE ASSY, HOOD, LH
53401-90D00

LH8#,LY15#

 1
53451 - ROD, HOOD SUPPORT
53451-90D01

LH8#,LY15#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15296

BU68,LH8#,LY15#,RZU68

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-14020

BU68,LH8#,LY15#,RZU68

 1
53498 - PAD, HOOD HINGE, NO.2
53498-90D00

LH8#,LY15#

 2
53498 - PAD, HOOD HINGE, NO.2
53498-90D00

LH8#,LY15#

 2
53510 - LOCK ASSY, HOOD
53510-90D01

LH8#,LY15#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-90D00

LH8#,LY15#

 1
Common parts
69749-12010
90461-06112
91626-40616
91631-60614
91651-40616
91651-60820
Linked diagrams
8101
