LH81VH-QLQDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

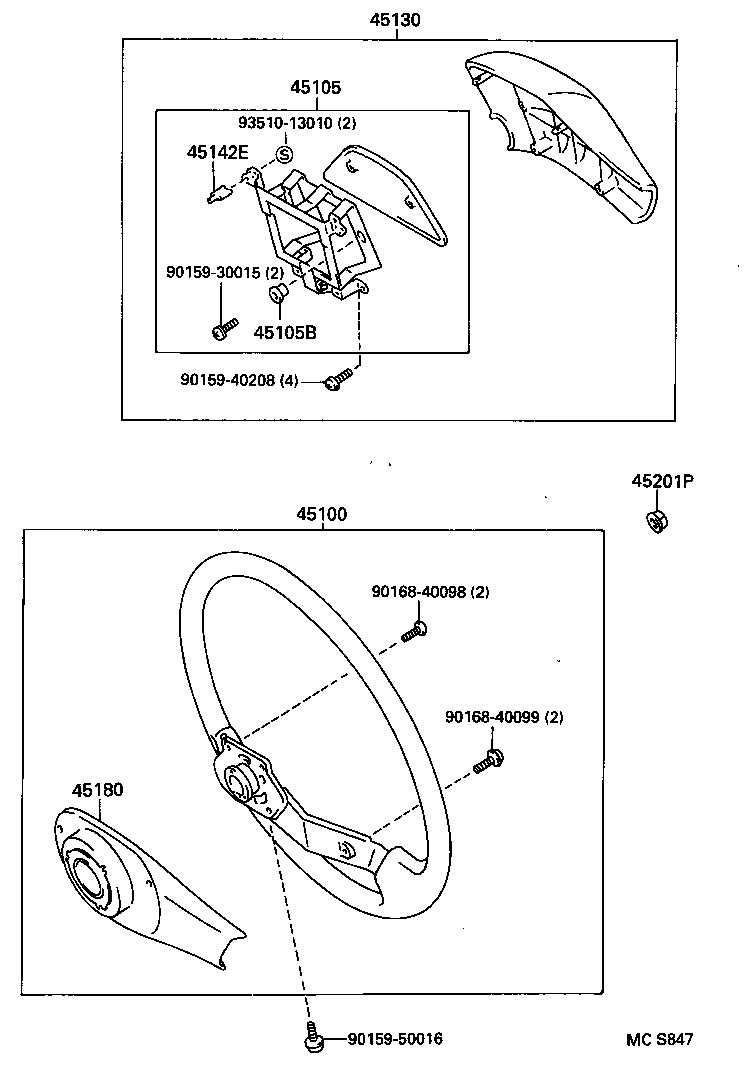

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45105 45105B 45130 45142E 45180 45201P 9015930015 9015940208 9015950016 9016840098 9016840099 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-28100B0

BU68,LH8#,LY15#,RZU68

2本ｽﾎﾟｰｸ,GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-28070

BU68,LH8#,LY15#,RZU68

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

BU68,LH8#,LY15#,RZU68

 2
45130 - BUTTON ASSY, HORN
45130-28220B0

BU68,LH8#,LY15#,RZU68

GRAY,TRIM1#

 1
45142E - PIECE, HORN CONTACT
45142-12090

BU68,LH8#,LY15#,RZU68

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-28050B0

BU68,LH8#,LY15#,RZU68

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

BU68,LH8#,LY15#,RZU68

 1
Common parts
90159-30015
90159-40208
90159-50016
90168-40098
90168-40099
93510-13010
