LH81VH-QLQDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LH8#..MTM

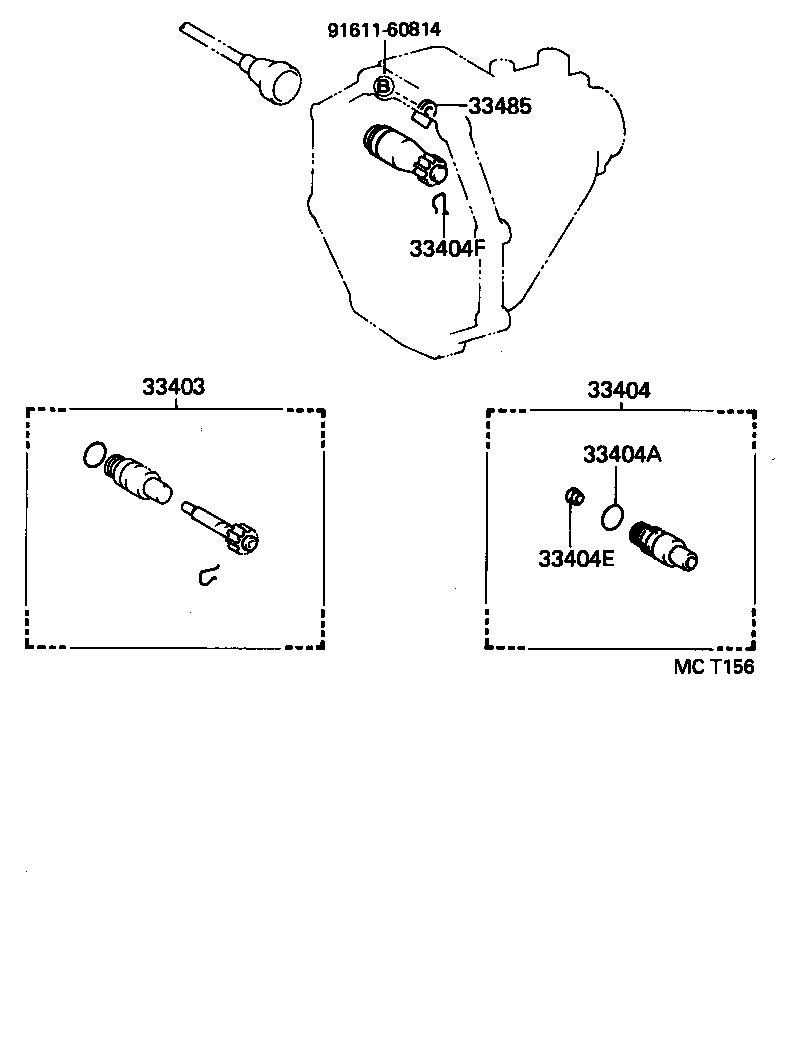

Click highlighted areas on diagram

G54

diagram 33403 33404 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39085

LH8#..MTM

歯数=18,ﾏｰｸ 18:5

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-35010

LH8#,LY15#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

BU68,LH8#,LY15#,RZU68..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

BU68,LH8#,LY15#,RZU68..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

BU68,LH8#,LY15#,RZU68..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

BU68,LH8#,LY15#,RZU68..MTM

 1
Common parts
91611-60814
