LH81VH-QLQDS (1995)

Toyota Quick Delivery

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9905)3L ; (9905- )5L

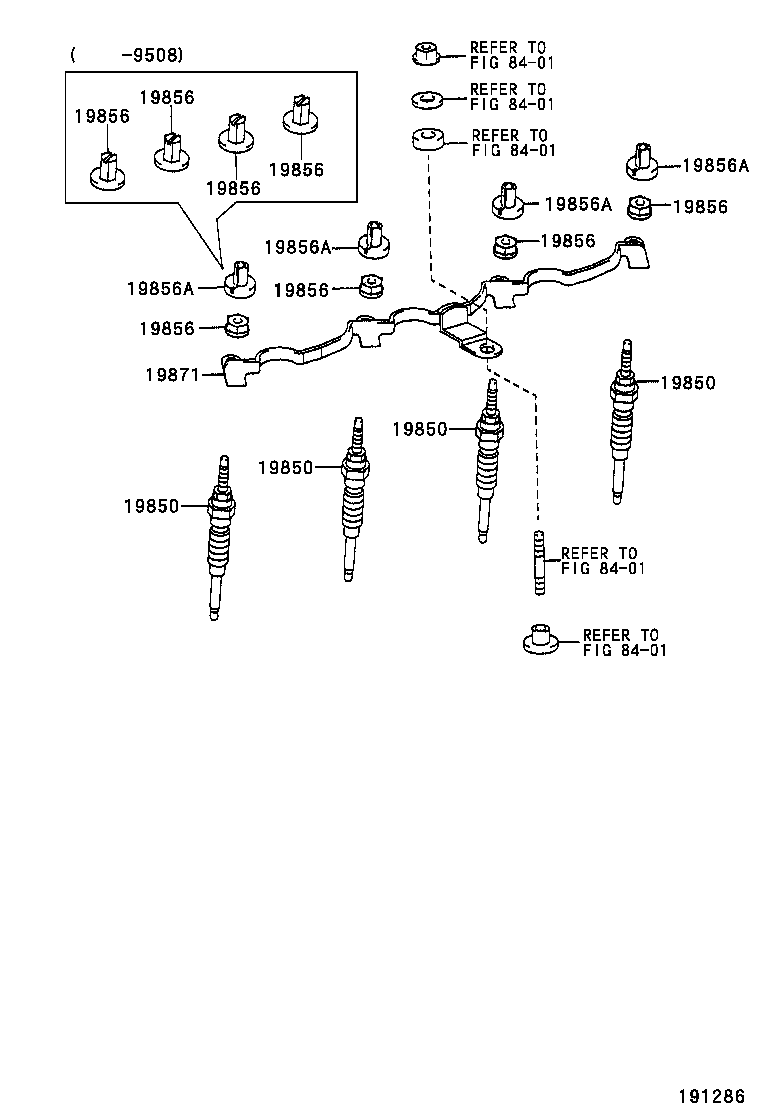

Click highlighted areas on diagram

diagram 19850 19850 19850 19850 19856 19856 19856 19856 19856 19856 19856 19856 19856A 19856A 19856A 19856A 19871 8401 8401 8401 8401 8401
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-54090

3L..LH81,LY151

*BV−GV=12V−11V

 4
19850-54120

3L,5L..LH8#,LY15#

*BV−GV=12V−11V,(J)

 4
19850-05010

3L,5L..LH8#,LY15#

*BV−GV=12V−11V,(L)

 4
19850-54120

3L..LH81,LY151

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

3L..LH81,LY151

*BV−GV=12V−11V

 4
19850-54120

3L,5L..LH8#,LY15#

*BV−GV=12V−11V,(J)

 4
19850-05010

3L,5L..LH8#,LY15#

*BV−GV=12V−11V,(L)

 4
19850-54120

3L..LH81,LY151

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

3L..LH81,LY151

*BV−GV=12V−11V

 4
19850-54120

3L,5L..LH8#,LY15#

*BV−GV=12V−11V,(J)

 4
19850-05010

3L,5L..LH8#,LY15#

*BV−GV=12V−11V,(L)

 4
19850-54120

3L..LH81,LY151

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

3L..LH81,LY151

*BV−GV=12V−11V

 4
19850-54120

3L,5L..LH8#,LY15#

*BV−GV=12V−11V,(J)

 4
19850-05010

3L,5L..LH8#,LY15#

*BV−GV=12V−11V,(L)

 4
19850-54120

3L..LH81,LY151

*BV−GV=12V−11V

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

3L..LH81,LY151

 4
90179-04030

3L,5L..LH8#,LY15#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

3L..LH81,LY151

 4
90179-04030

3L,5L..LH8#,LY15#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

3L..LH81,LY151

 4
90179-04030

3L,5L..LH8#,LY15#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

3L..LH81,LY151

 4
90179-04030

3L,5L..LH8#,LY15#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

3L..LH81,LY151

 4
90179-04030

3L,5L..LH8#,LY15#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

3L..LH81,LY151

 4
90179-04030

3L,5L..LH8#,LY15#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

3L..LH81,LY151

 4
90179-04030

3L,5L..LH8#,LY15#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

3L..LH81,LY151

 4
90179-04030

3L,5L..LH8#,LY15#

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

3L,5L..LH8#,LY15#

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

3L,5L..LH8#,LY15#

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

3L,5L..LH8#,LY15#

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

3L,5L..LH8#,LY15#

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-54020

3L,5L..LH8#,LY15#

 1
Linked diagrams
8401
