XZU281K-QLQNY (2004)
Toyota Quick Deli/Urban Sup

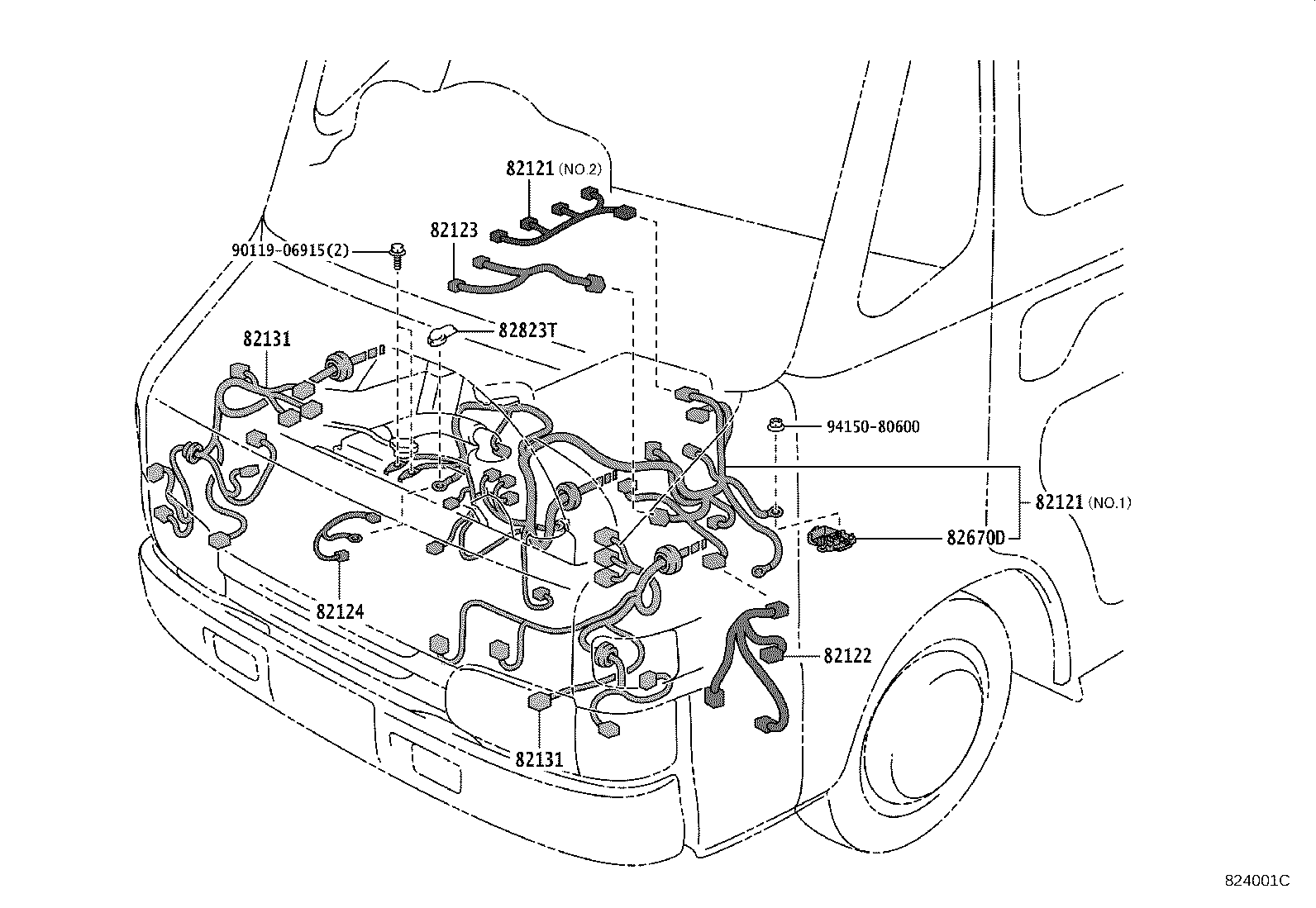

ILLUST NO. 1 OF 5(0406-0610)DCR
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-37A00 |
XZU28#..DCR NO.1 |
1 | ||
| 82121-37B30 |
XZU28#..DCR NO.2 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37A00 |
XZU28#..DCR NO.1 |
1 | ||
| 82121-37B30 |
XZU28#..DCR NO.2 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82121-37B61 |
XZU28#..DCR |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82121-37B41 |
XZU28#..DCR |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82121-37A11 |
XZU28#..DCR |
1 | ||
| 82121-37A13 |
XZU28#..DCR |
1 | ||
| 82121-37A12 |
XZU28#..DCR |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-37P70 |
XZU281..DCR |
1 | ||
| 82131-37P72 |
XZU28#..DCR ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 82131-37P71 |
XZU28#..DCR ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-37P70 |
XZU281..DCR |
1 | ||
| 82131-37P72 |
XZU28#..DCR ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 82131-37P71 |
XZU28#..DCR ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-26020 |
XZU28#..DCR |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
RZU280..N;BU28#,LY228,270,XZU28# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94150-80600 | ||||

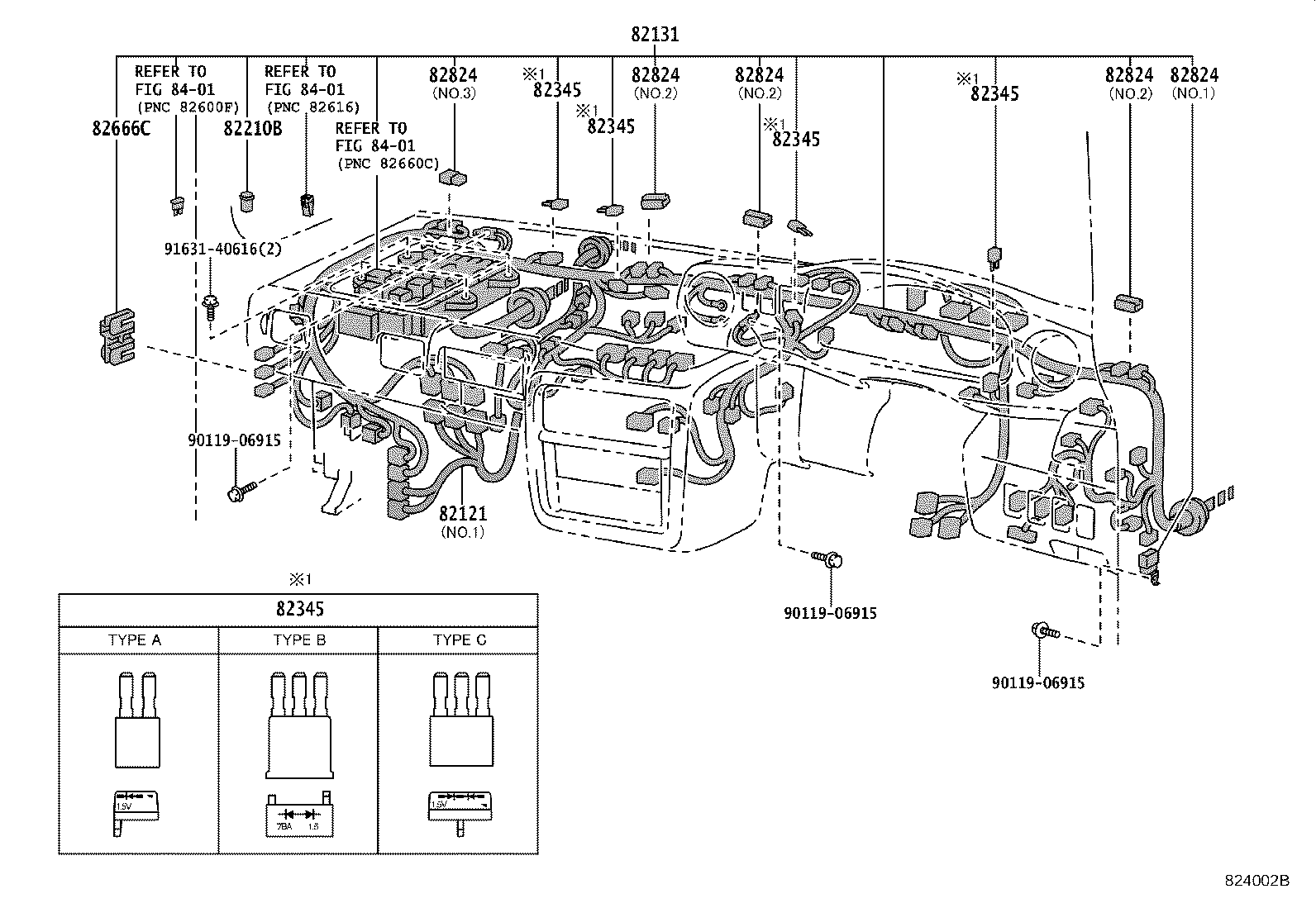

ILLUST NO. 2 OF 5(0406-0610)XZU28#
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-37A00 |
XZU28#..DCR NO.1 |
1 | ||
| 82121-37B30 |
XZU28#..DCR NO.2 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-37P70 |
XZU281..DCR |
1 | ||
| 82131-37P72 |
XZU28#..DCR ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 82131-37P71 |
XZU28#..DCR ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08282 |
BU28#,RZU280,XZU28# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
BU28#,RZU280,XZU28# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08280 |
BU28#,RZU280,XZU28# 30A,ﾒｽ端子,桃 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
BU280..LPG;BU280..N..DSL;BU281,RZU280,XZU28# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82345-32020 |
BU28#,XZU28#..N..(DCR,DSL) TYPE C:ｲﾗｽﾄ参照 |
3 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
BU280..LPG;BU280..N..DSL;BU281,RZU280,XZU28# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82345-32020 |
BU28#,XZU28#..N..(DCR,DSL) TYPE C:ｲﾗｽﾄ参照 |
3 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
BU280..LPG;BU280..N..DSL;BU281,RZU280,XZU28# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82345-32020 |
BU28#,XZU28#..N..(DCR,DSL) TYPE C:ｲﾗｽﾄ参照 |
3 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
BU280..LPG;BU280..N..DSL;BU281,RZU280,XZU28# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82345-32020 |
BU28#,XZU28#..N..(DCR,DSL) TYPE C:ｲﾗｽﾄ参照 |
3 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
BU280..LPG;BU280..N..DSL;BU281,RZU280,XZU28# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82345-32020 |
BU28#,XZU28#..N..(DCR,DSL) TYPE C:ｲﾗｽﾄ参照 |
3 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-22070 |
BU28#,RZU280,XZU28# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

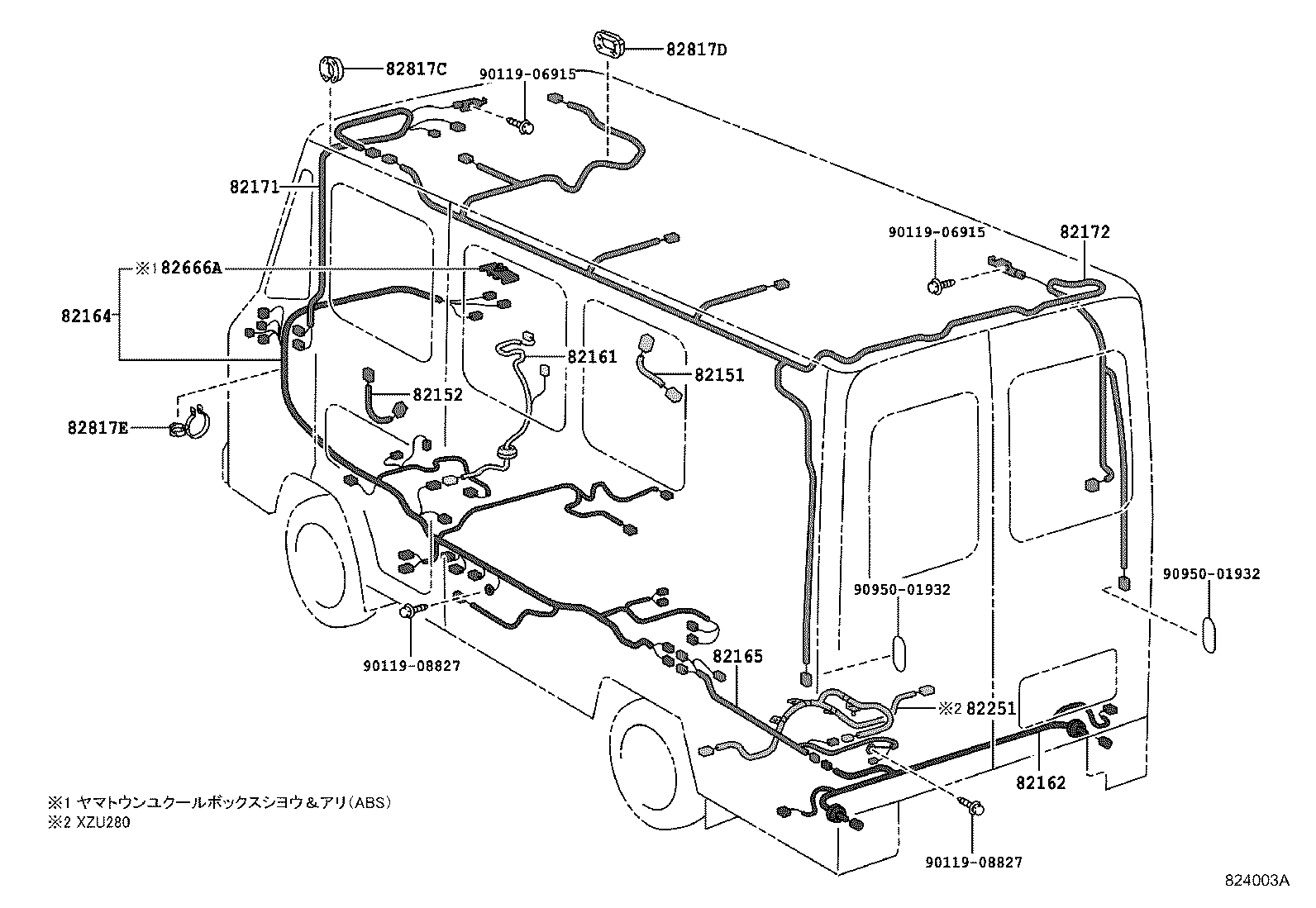

ILLUST NO. 3 OF 5(0406-0610)DCR
ﾙ-ﾌ,ﾄﾞｱ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37201 |
RZU280,XZU28#..N |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-37201 |
RZU280,XZU28#..N |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37240 |
RZU280,XZU28#..N |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-37F20 |
XZU281..DCR |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37210 |
RZU280,XZU28#..N |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37490 |
XZU28#..DCR |
1 | ||
| 82171-37740 |
XZU28#..DCR |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-24110 |
RZU280,XZU28#..N |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-37170 |
RZU280,XZU28#..N |
15 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-37190 |
RZU280,XZU28#..N |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08827 | ||||
| 90950-01932 | ||||

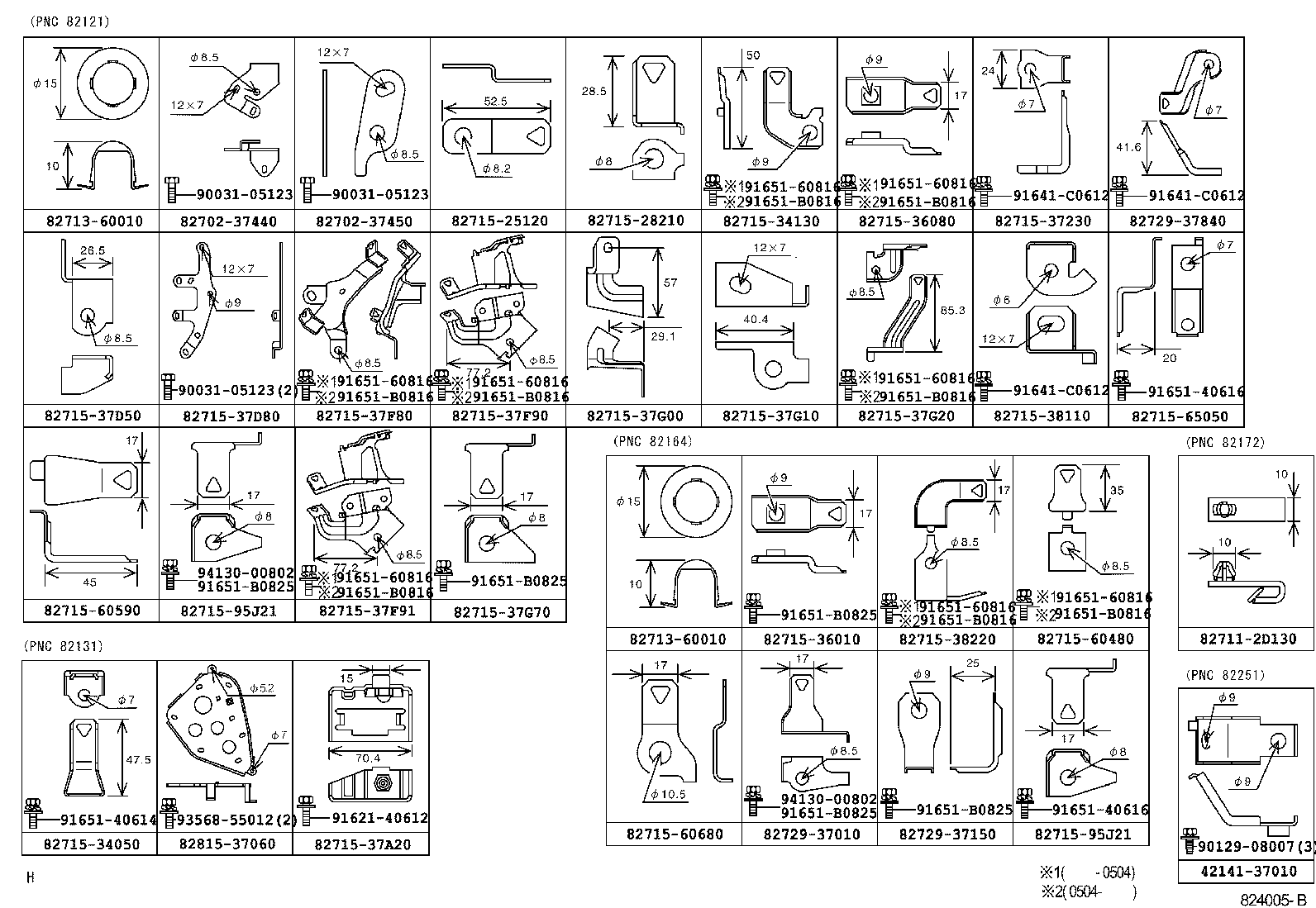

ILLUST NO. 4 OF 5(0406-0610)XZU28#
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 42141-37010 | ||||
| 82702-37440 | ||||
| 82702-37450 | ||||
| 82711-2D130 | ||||
| 82713-60010 | ||||
| 82715-25120 | ||||
| 82715-28210 | ||||
| 82715-34050 | ||||
| 82715-34130 | ||||
| 82715-36010 | ||||
| 82715-36080 | ||||
| 82715-37230 | ||||
| 82715-37A20 | ||||
| 82715-37D50 | ||||
| 82715-37D80 | ||||
| 82715-37F80 | ||||
| 82715-37F90 | ||||
| 82715-37F91 | ||||
| 82715-37G00 | ||||
| 82715-37G10 | ||||
| 82715-37G20 | ||||
| 82715-37G70 | ||||
| 82715-38110 | ||||
| 82715-38220 | ||||
| 82715-60480 | ||||
| 82715-60590 | ||||
| 82715-60680 | ||||
| 82715-65050 | ||||
| 82715-95J21 | ||||
| 82729-37010 | ||||
| 82729-37150 | ||||
| 82729-37840 | ||||
| 82815-37060 | ||||
| 90031-05123 | ||||
| 90129-08007 | ||||
| 91621-40612 | ||||
| 91641-C0612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 91651-B0816 | ||||
| 91651-B0825 | ||||
| 93568-55012 | ||||
| 94130-00802 | ||||
