XZU281K-QLQNC (2004)
Toyota Quick Deli/Urban Sup
Production
Jun 2004
-
Oct 2006
Engine
3RZFPE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

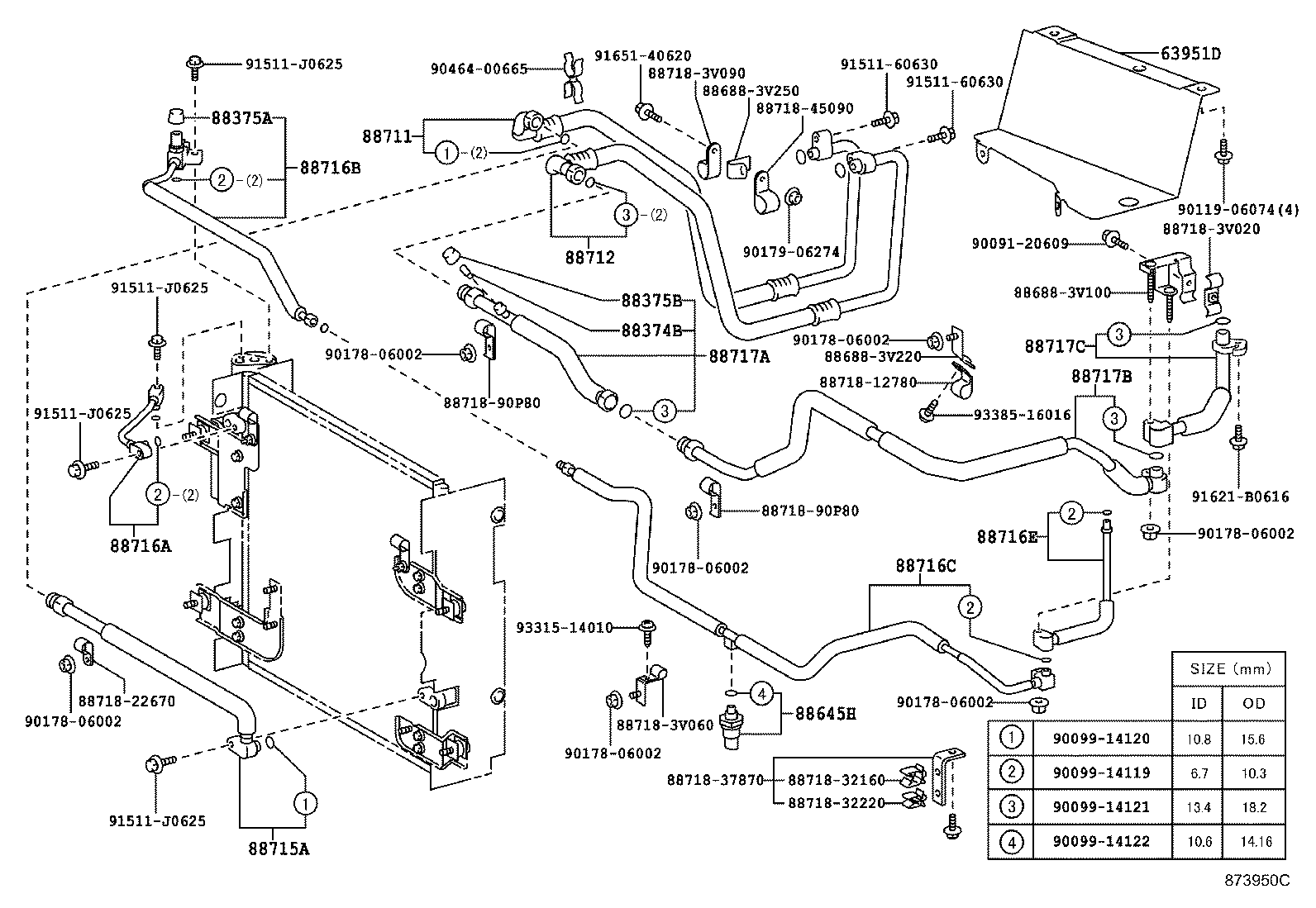

ILLUST NO. 2 OF 2(9908-0610)LPG
Click highlighted areas on diagram
ﾎ-ｽ & ﾊﾟｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63951D - COVER, COOLER PIPE | ||||
| 63951-37010 |
RZU280,XZU28#..N |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
RZU280,XZU28#..N |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
BU28#,RZU280,XZU28# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-37730 |
RZU280,XZU28#..N |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-37720 |
RZU280,XZU28#..N |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-37810 |
RZU280,XZU28#..N |
1 | ||
| Common parts | ||||
| 88688-3V100 | ||||
| 88688-3V220 | ||||
| 88688-3V250 | ||||
| 88718-12780 | ||||
| 88718-22670 | ||||
| 88718-32160 | ||||
| 88718-32220 | ||||
| 88718-37870 | ||||
| 88718-3V020 | ||||
| 88718-3V060 | ||||
| 88718-3V090 | ||||
| 88718-45090 | ||||
| 88718-90P80 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06074 | ||||
| 90178-06002 | ||||
| 90179-06274 | ||||
| 90464-00665 | ||||
| 91511-60630 | ||||
| 91511-J0625 | ||||
| 91621-B0616 | ||||
| 91651-40620 | ||||
| 93315-14010 | ||||
| 93385-16016 | ||||

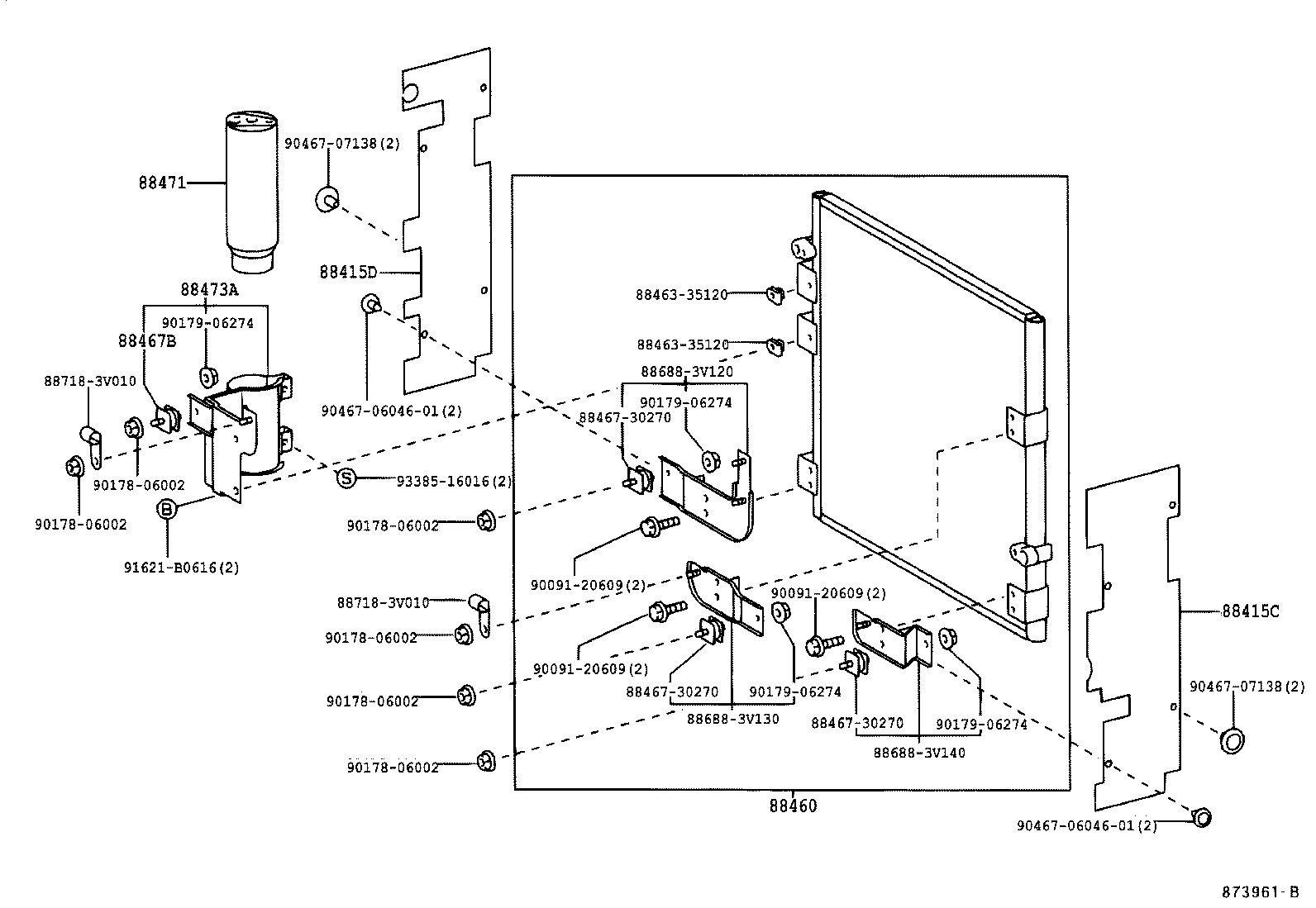

ILLUST NO. 1 OF 2(9908-0610)BU28#,RZU280 ; (0406-0610)XZU281..LPG
Click highlighted areas on diagram
ｺﾝﾃﾞﾝｻ & ﾚｼ-ﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88415C - COVER, DUST, NO.1 | ||||
| 88415-37030 |
RZU280,XZU28#..N |
1 | ||
| 88415D - COVER, DUST, NO.2 | ||||
| 88415-37040 |
RZU280,XZU28#..N |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37430 |
RZU280,XZU281..N..LPG |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-30270 |
RZU280,XZU281..N..LPG |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZU280,XZU28#..N |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-37020 |
RZU280,XZU28#..N |
1 | ||
| Common parts | ||||
| 88463-35120 | ||||
| 88467-30270 | ||||
| 88688-3V120 | ||||
| 88688-3V130 | ||||
| 88688-3V140 | ||||
| 88718-3V010 | ||||
| 90091-20609 | ||||
| 90178-06002 | ||||
| 90179-06274 | ||||
| 90467-0604601 | ||||
| 90467-07138 | ||||
| 91621-B0616 | ||||
| 93385-16016 | ||||
