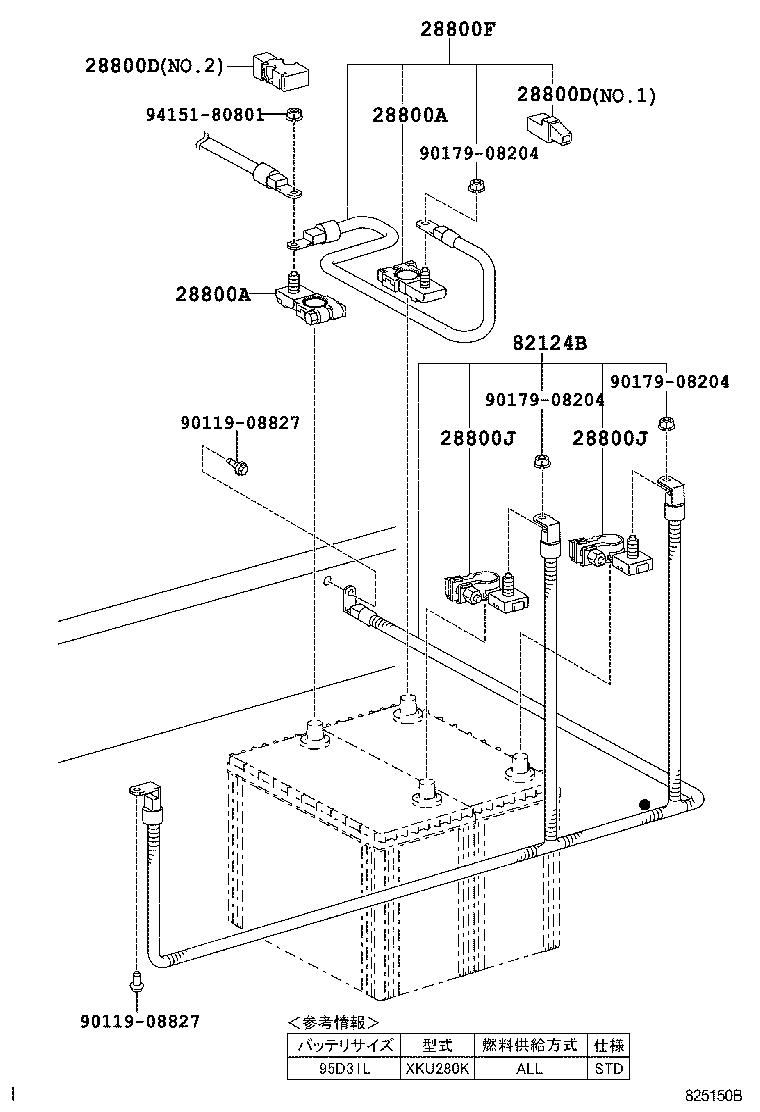

Toyota Quick deli/urban sup XKU280 BATTERY & BATTERY CABLE

Part #	Description	Period	Qty
28800A - TERMINAL, BATTERY POSITIVE
90982-05054	N04C..XKU280	10/2006 - 12/2999	2
28800A - TERMINAL, BATTERY POSITIVE
90982-05054	N04C..XKU280	10/2006 - 12/2999	2
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12150	N04C..XKU280 NO.1	10/2006 - 12/2999	1
82821-37071	N04C..XKU280 NO.2	10/2006 - 12/2999	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12150	N04C..XKU280 NO.1	10/2006 - 12/2999	1
82821-37071	N04C..XKU280 NO.2	10/2006 - 12/2999	1
28800F - CABLE, BATTERY TO BATTERY
82123-37200	N04C..XKU280	10/2006 - 12/2999	1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056	N04C..XKU280	10/2006 - 12/2999	2
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056	N04C..XKU280	10/2006 - 12/2999	2
82124B - WIRE, ENGINE, NO.4
82124-37280	XKU280	10/2006 - 12/2999	1
Common parts
90119-08827
90179-08204
94151-80801

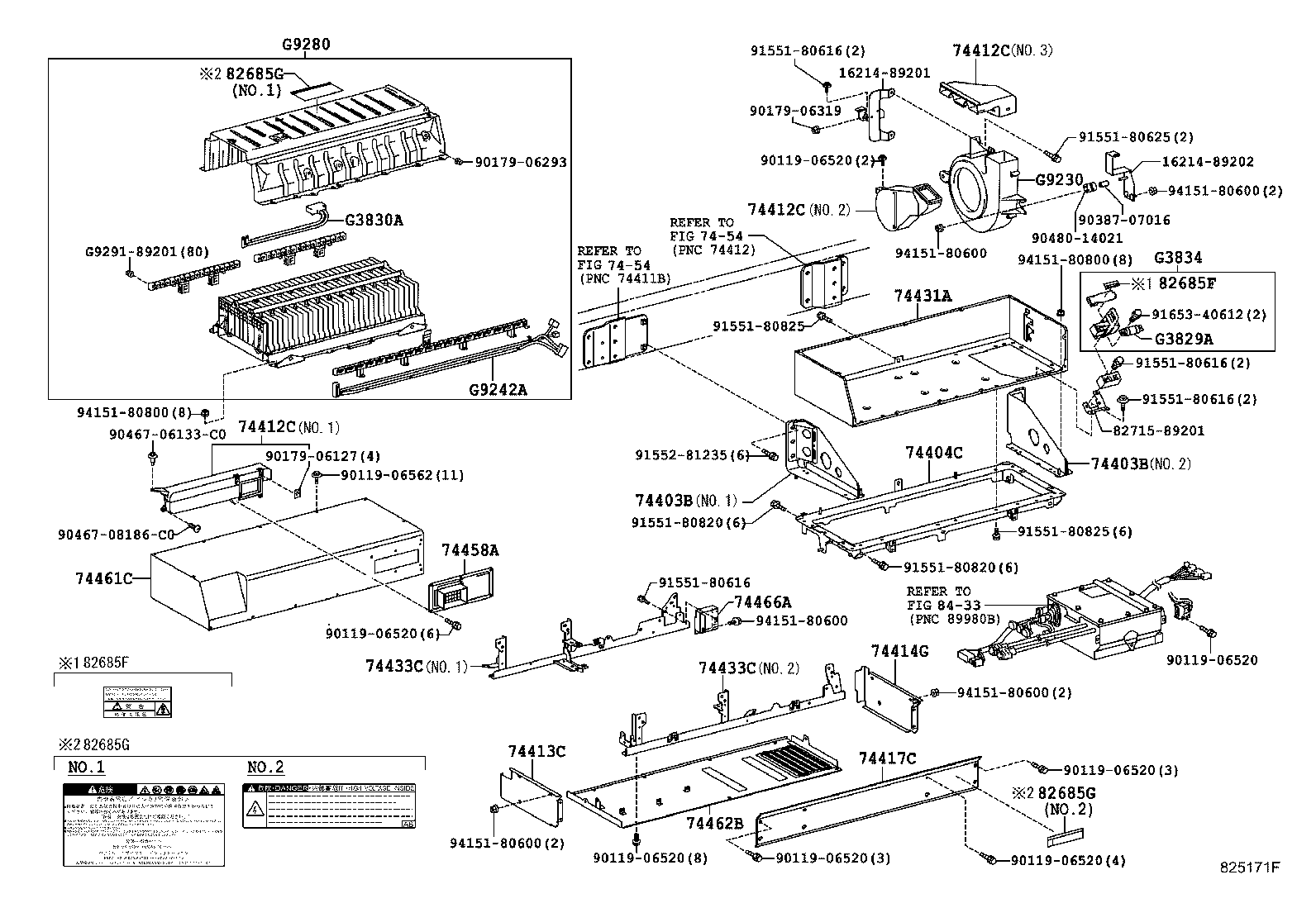

Part #	Description	Period	Qty
74403B - CARRIER SUB-ASSY, BATTERY
74403-89201	XKU280 NO.1	10/2006 - 12/2999	1
74403-89202	XKU280 NO.2	10/2006 - 12/2999	1
74403B - CARRIER SUB-ASSY, BATTERY
74403-89201	XKU280 NO.1	10/2006 - 12/2999	1
74403-89202	XKU280 NO.2	10/2006 - 12/2999	1
74404C - CARRIER SUB-ASSY, BATTERY, UPR
74404-89202	XKU280	10/2006 - 12/2999	1
74412C - DUCT, BATTERY CARRIER
74412-89204	XKU280 NO.1	10/2006 - 12/2999	1
74412-89206	XKU280 NO.3	10/2006 - 12/2999	1
74412-89205	XKU280 NO.2	10/2006 - 12/2999	1
74412C - DUCT, BATTERY CARRIER
74412-89204	XKU280 NO.1	10/2006 - 12/2999	1
74412-89206	XKU280 NO.3	10/2006 - 12/2999	1
74412-89205	XKU280 NO.2	10/2006 - 12/2999	1
74412C - DUCT, BATTERY CARRIER
74412-89204	XKU280 NO.1	10/2006 - 12/2999	1
74412-89206	XKU280 NO.3	10/2006 - 12/2999	1
74412-89205	XKU280 NO.2	10/2006 - 12/2999	1
74413C - PANEL, BATTERY CARRIER, FRONT
74413-89201	XKU280	10/2006 - 12/2999	1
74414G - PANEL, BATTERY CARRIER, RR
74414-89201	XKU280	10/2006 - 12/2999	1
74417C - PANEL, BATTERY CARRIER LH
74417-89201	XKU280	10/2006 - 12/2999	1
74431A - TRAY, BATTERY
74431-89201	XKU280	10/2006 - 12/2999	1
74433C - SUPPORT, BATTERY TRAY
74434-89210	XKU280 NO.2	04/2008 - 12/2999	1
74433-89201	XKU280 NO.1	10/2006 - 12/2999	1
74434-89201	XKU280 NO.2	10/2006 - 04/2008	1
74433C - SUPPORT, BATTERY TRAY
74434-89210	XKU280 NO.2	04/2008 - 12/2999	1
74433-89201	XKU280 NO.1	10/2006 - 12/2999	1
74434-89201	XKU280 NO.2	10/2006 - 04/2008	1
74458A - LID, BATTERY COVER, NO.1
74458-89203	XKU280	10/2006 - 12/2999	1
74461C - COVER, BATTERY
74461-89203	XKU280	10/2006 - 12/2999	1
74462B - PANEL, BATTERY CARRIER, NO.2
74464-89201	XKU280	10/2006 - 12/2999	1
74466A - PANEL, BATTERY CARRIER, NO.6
74466-89201	XKU280	10/2006 - 12/2999	1
82685F - MAIN BATTERY CAUTION PLATE, NO.1
82685-48040	XKU280	10/2006 - 11/2009	1
G9289-89207	XKU280	11/2009 - 12/2999	1
82685G - MAIN BATTERY CAUTION PLATE, NO.2
G9289-89205	XKU280 NO.1	04/2008 - 12/2999	1
G9289-89203	XKU280 NO.2	04/2008 - 12/2999	1
86995-37040	XKU280 NO.1	10/2006 - 03/2008	1
82685G - MAIN BATTERY CAUTION PLATE, NO.2
G9289-89205	XKU280 NO.1	04/2008 - 12/2999	1
G9289-89203	XKU280 NO.2	04/2008 - 12/2999	1
86995-37040	XKU280 NO.1	10/2006 - 03/2008	1
G3829A - FUSE, ELECTRIC VEHICLE
90982-11049	XKU280 125A､ﾏｰｸ=90982−11049	10/2006 - 12/2999	1
G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3830-89201	XKU280	10/2006 - 12/2999	1
G3834 - GRIP, SERVICE PLUG
G3830-89211	XKU280	11/2009 - 12/2999	1
G9530-30010	XKU280	10/2006 - 10/2009	1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-89201	XKU280	10/2006 - 12/2999	1
G9242A - CABLE, MAIN BATTERY, NO.2
G9242-89205	XKU280	10/2006 - 12/2999	1
G9280 - BATTERY ASSY, EV, NO.1
G9280-89201	XKU280	10/2006 - 12/2999	1
Common parts
16214-89201
16214-89202
82715-89201
90119-06520
90119-06562
90179-06127
90179-06293
90179-06319
90387-07016
90467-06133C0
90467-08186C0
90480-14021
91551-80616
91551-80625
91551-80820
91551-80825
91552-81235
91653-40612
94151-80600
94151-80800
G9291-89201
Linked diagrams
7454
8433

XKU280K-QLQDY (2006)

ILLUST NO. 1 OF 2(0610- )

ILLUST NO. 2 OF 2(0610- )
