RZU280K-QLQNC (2003)

Toyota Quick Deli/Urban Sup

Production Jun 2003 - Oct 2006
Engine 3RZFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0610)

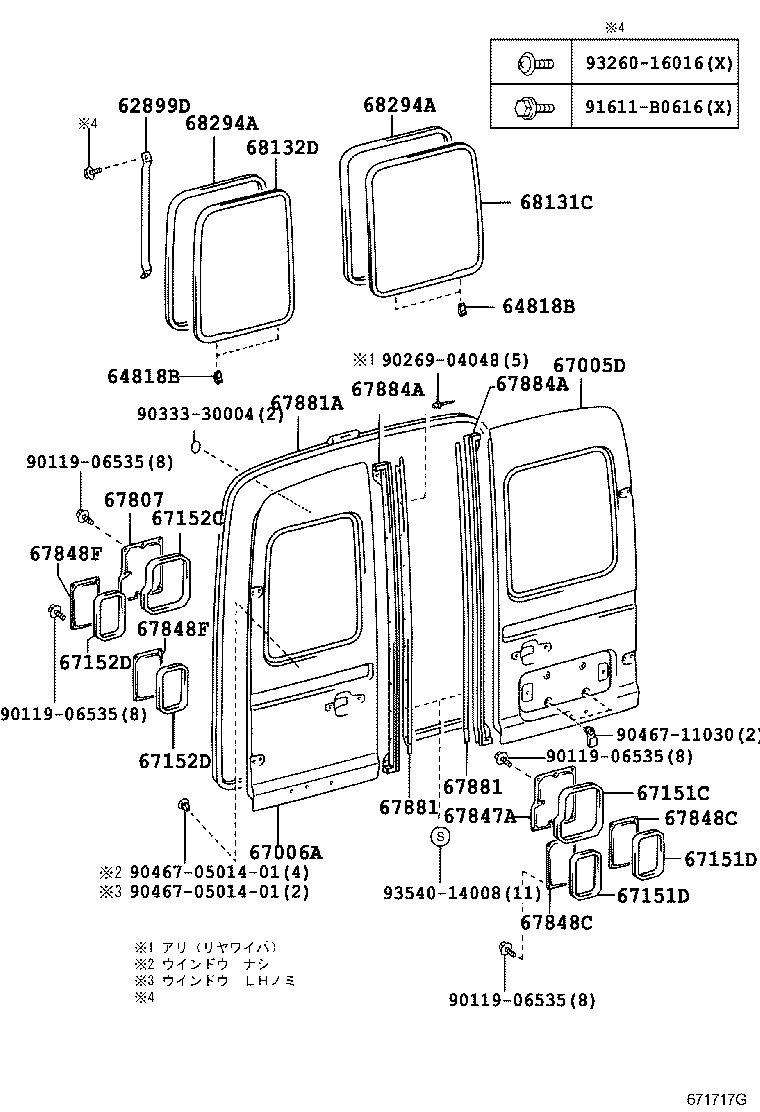

Click highlighted areas on diagram

diagram 62899D 64818B 64818B 67005D 67006A 67151C 67151D 67151D 67152C 67152D 67152D 67807 67847A 67848C 67848C 67848F 67848F 67881 67881 67881A 67884A 67884A 68131C 68132D 68294A 68294A 9011906535 9011906535 9011906535 9011906535 9026904048 9033330004 904670501401 904670501401 9046711030 91611B0616 9326016016 9354014008
Part # Description Qty Price
62899D - BAR, BACK DOOR WINDOW GUARD
62899-37010

BU28#,LY228,270,RZU280

ｱﾘ(ﾊﾞﾂｸﾄﾞｱ ｳｲﾝﾄﾞｳ = RH & LH)

 4
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-13020

RZU280,XZU28#..N

 4
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-13020

RZU280,XZU28#..N

 4
67005D - PANEL SUB-ASSY, BACK DOOR, RH
67005-37063

RZU280..N

ｱﾘ(ﾊﾞﾂｸﾄﾞｱ ｳｲﾝﾄﾞｳ)

 1
67006A - PANEL SUB-ASSY, BACK DOOR, LH
67006-37033

RZU280,XZU28#..N

 1
67151C - PACKING, BACK DOOR SERVICE HOLE COVER, NO.1
69838-37011

RZU280,XZU28#..N

 1
67151D - PACKING, BACK DOOR SERVICE HOLE COVER, NO.2
69838-37011

RZU280,XZU28#..N

 2
67151D - PACKING, BACK DOOR SERVICE HOLE COVER, NO.2
69838-37011

RZU280,XZU28#..N

 2
67152C - PACKING, BACK DOOR SERVICE HOLE, NO.1
69838-37011

BU28#,LY228,270,RZU280,XZU28#

 1
67152D - PACKING, BACK DOOR SERVICE HOLE, NO.2
69838-37011

BU28#,LY228,270,RZU280,XZU28#

 2
67152D - PACKING, BACK DOOR SERVICE HOLE, NO.2
69838-37011

BU28#,LY228,270,RZU280,XZU28#

 2
67807 - COVER SUB-ASSY, BACK DOOR SERVICE HOLE
67847-37010

BU28#,LY228,270,RZU280,XZU28#

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67847-37010

RZU280,XZU28#..N

 1
67848C - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-37010

RZU280,XZU28#..N

 2
67848C - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-37010

RZU280,XZU28#..N

 2
67848F - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-37010

BU28#,LY228,270,RZU280,XZU28#

 2
67848F - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-37010

BU28#,LY228,270,RZU280,XZU28#

 2
67881 - PLATE, BACK DOOR WEATHERSTRIP SET
67889-37020

BU28#,LY228,270,RZU280,XZU28#

左側

 1
67889-37010

BU28#,LY228,270,RZU280,XZU28#

右側

 1
67881 - PLATE, BACK DOOR WEATHERSTRIP SET
67889-37020

BU28#,LY228,270,RZU280,XZU28#

左側

 1
67889-37010

BU28#,LY228,270,RZU280,XZU28#

右側

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-37010

BU28#,LY228,270,RZU280,XZU28#

 1
67884A - WEATHERSTRIP, BACK DOOR, CENTER
67884-37010

BU28#,LY228,270,RZU280,XZU28#

 2
67884A - WEATHERSTRIP, BACK DOOR, CENTER
67884-37010

BU28#,LY228,270,RZU280,XZU28#

 2
68131C - GLASS, BACK DOOR, RH
68131-37040

BU28#,LY228,270,RZU280

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68131-37060

LY228,270,RZU280,XZU28#

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68131-37061

RZU280,XZU28#

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68132D - GLASS, BACK DOOR, LH
68132-37030

BU28#,LY228,270,RZU280

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68132-37040

LY228,270,RZU280,XZU28#

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68132-37041

RZU280,XZU28#

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68294A - DAM, BACK DOOR GLASS ADHESIVE
68294-13040

BU28#,LY228,270,RZU280,XZU28#

長さ=3085

 2
68294A - DAM, BACK DOOR GLASS ADHESIVE
68294-13040

BU28#,LY228,270,RZU280,XZU28#

長さ=3085

 2
Common parts
90119-06535
90269-04048
90333-30004
90467-0501401
90467-11030
91611-B0616
93260-16016
93540-14008
