RZU280K-QLQNC (2003)
Toyota Quick Deli/Urban Sup
Production
Jun 2003
-
Oct 2006
Engine
3RZFPE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0610)BU28#,RZU280,XZU28#

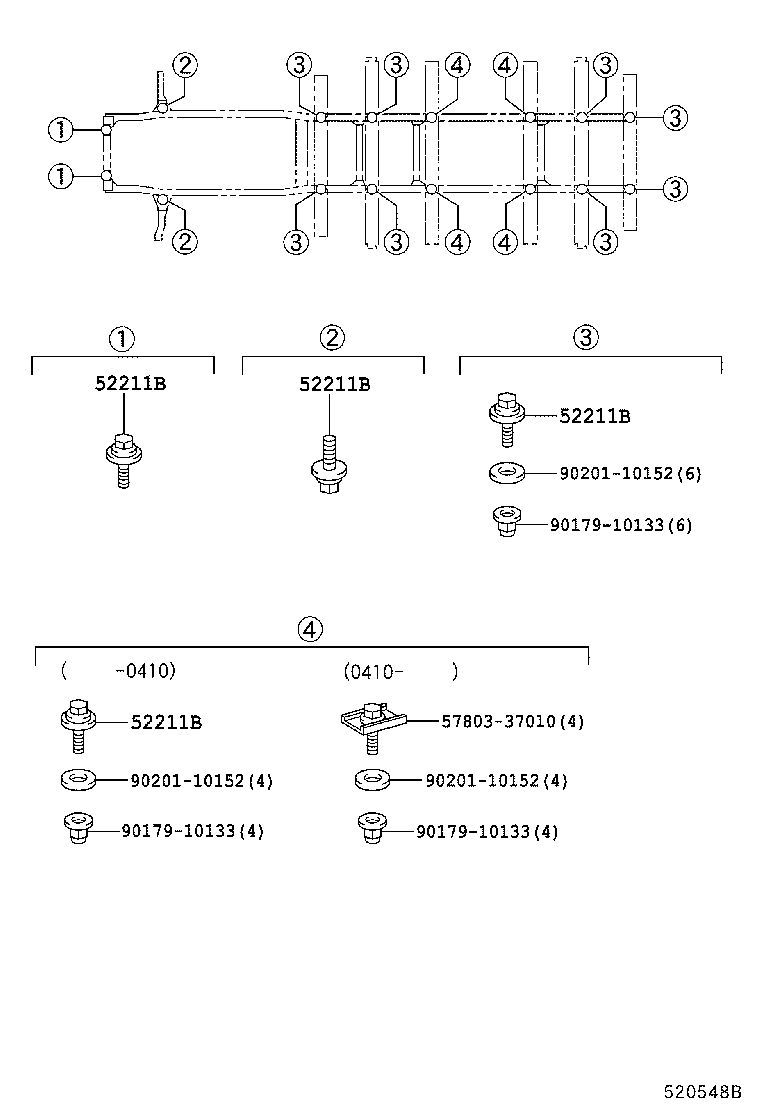

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90119-10538 |
BU28#,RZU280,XZU28# |
16 | ||
| 90119-10538 |
RZU280,XZU28# |
12 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90119-10538 |
BU28#,RZU280,XZU28# |
16 | ||
| 90119-10538 |
RZU280,XZU28# |
12 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90119-10538 |
BU28#,RZU280,XZU28# |
16 | ||
| 90119-10538 |
RZU280,XZU28# |
12 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90119-10538 |
BU28#,RZU280,XZU28# |
16 | ||
| 90119-10538 |
RZU280,XZU28# |
12 | ||
| Common parts | ||||
| 57803-37010 | ||||
| 90179-10133 | ||||
| 90201-10152 | ||||
