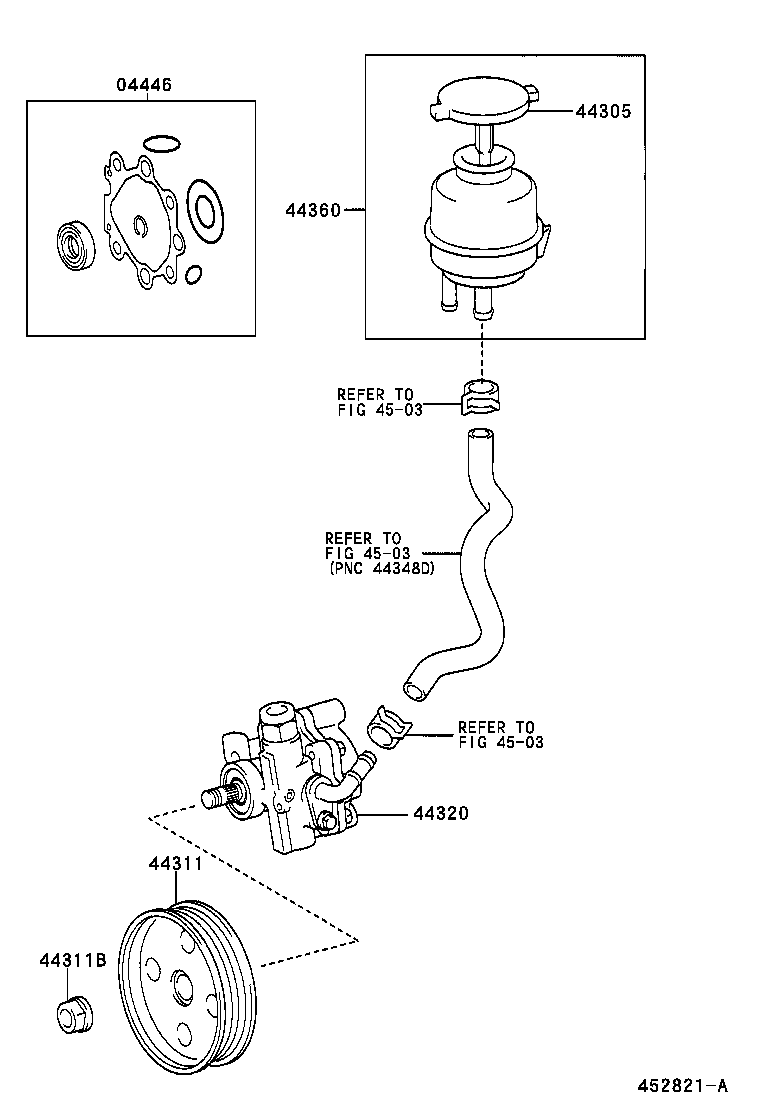

Toyota Quick deli/urban sup LY270 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-53030	LY228,270	08/2001 - 07/2004	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030	LY228,270	08/2001 - 07/2004	1
44311 - PULLEY, VANE PUMP
44311-26050	LY228,270	08/2001 - 07/2004	1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003	LY228,270	08/2001 - 07/2004	1
44320 - PUMP ASSY, VANE
44320-25090	LY228,270	08/2001 - 07/2004	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-28150	LY228,270	08/2001 - 07/2004	1
Linked diagrams
4503

LY270-QLQDS (2001)
