LY228K-QLSDS (2001)

Toyota Quick Deli/Urban Sup

Production Aug 2001 - Jul 2004
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0108-0407)LY228,270

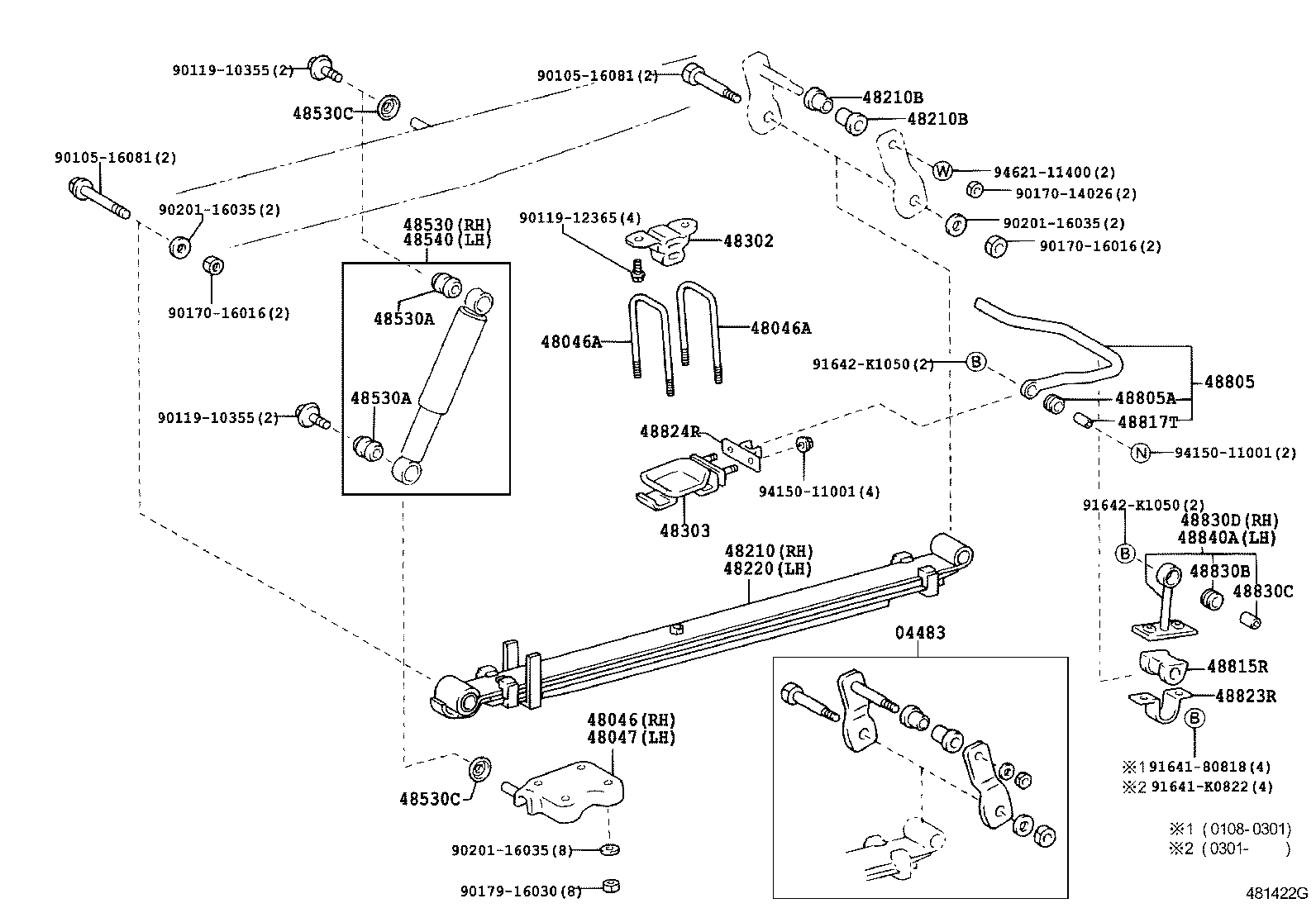

Click highlighted areas on diagram

diagram 04483 48046 48046A 48046A 48047 48210 48210B 48210B 48220 48302 48303 48530 48530A 48530A 48530C 48530C 48540 48805 48805A 48815R 48817T 48823R 48824R 48830B 48830C 48830D 48840A 9010516081 9010516081 9011910355 9011910355 9011912365 9017014026 9017016016 9017016016 9017916030 9020116035 9020116035 9020116035 9164180818 91641K0822 91642K1050 91642K1050 9415011001 9415011001 9462111400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-25040

LY228,270

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-25110

LY228,270

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16074

LY228,270

長さ=205

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16074

LY228,270

長さ=205

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-25110

LY228,270

 1
48210 - SPRING ASSY, REAR RH
48210-2E300

LY228,270

4枚ﾘｰﾌ

 1
48210B - BUSH(FOR REAR SPRING PIN)
90385-18023

LY228,270

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18023

LY228,270

 4
48220 - SPRING ASSY, REAR LH
48210-2E300

LY228,270

4枚ﾘｰﾌ

 1
48302 - SPRING SUB-ASSY, HOLLOW
48302-25110

LY228,270

 2
48303 - SEAT SUB-ASSY, HOLLOW SPRING
48303-25100

LY228,270

右側

 1
48303-25110

LY228,270

左側

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-29755

LY228,270

ﾏｰｸ 48531−25240

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16010

LY228,270

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16010

LY228,270

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LY228,270

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LY228,270

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-29755

LY228,270

ﾏｰｸ 48531−25240

 1
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-25010

LY228,270

 1
48805A - BUSH(FOR REAR STABILIZER BAR)
90385-13008

LY228,270

 4
48815R - BUSH, STABILIZER(FOR REAR)
48815-30040

LY228,270

 2
48817T - COLLAR(FOR STABILIZER REAR BAR)
90560-10044

LY228,270

 4
48823R - COVER, STABILIZER LINK(FOR REAR)
48823-36040

LY228,270

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48824-25030

LY228,270

 2
48830B - BUSH(FOR REAR STABILIZER LINK)
90385-13008

LY228,270

 4
48830C - SPACER(FOR REAR STABILIZER LINK)
90560-10044

LY228,270

 6
48830D - LINK ASSY, REAR STABILIZER, RH
48830-25010

LY228,270

 1
48840A - LINK ASSY, REAR STABILIZER, LH
48830-25010

LY228,270

 1
Common parts
90105-16081
90119-10355
90119-12365
90170-14026
90170-16016
90179-16030
90201-16035
91641-80818
91641-K0822
91642-K1050
94150-11001
94621-11400

ILLUST NO. 2 OF 2(0108-0407)LY228,270

Click highlighted areas on diagram

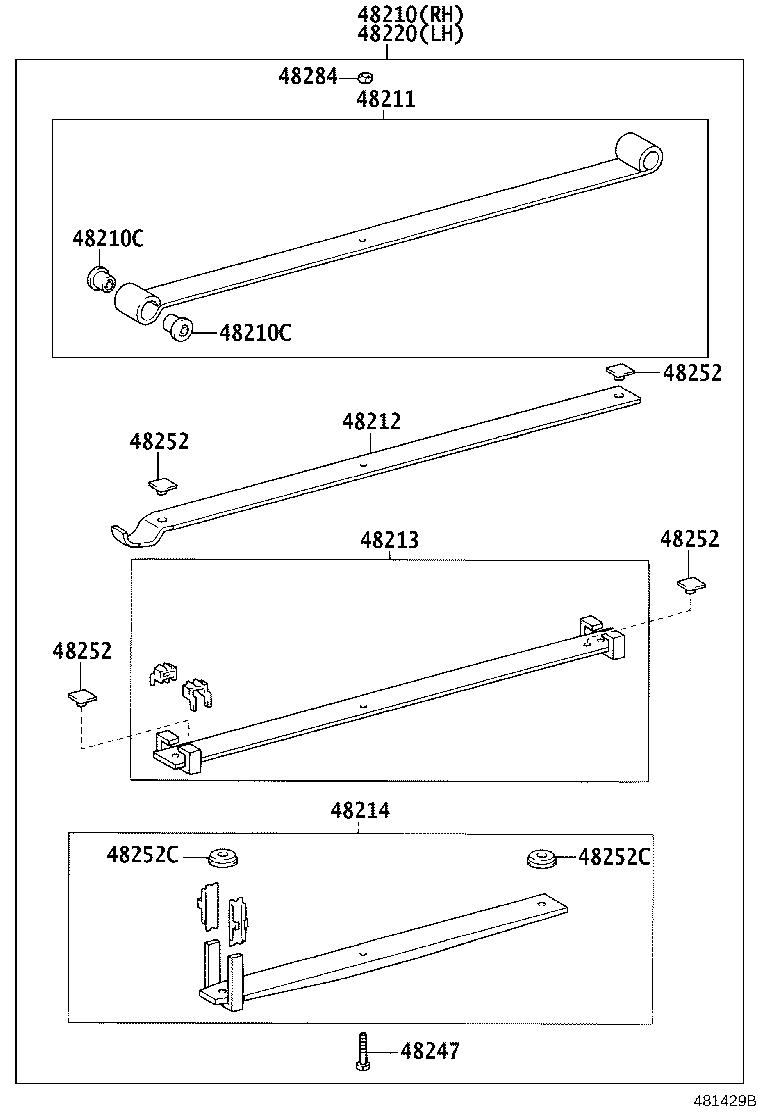

diagram 48210 48210C 48210C 48211 48212 48213 48214 48220 48247 48252 48252 48252 48252 48252C 48252C 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-2E300

LY228,270

4枚ﾘｰﾌ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

LY228,270

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

LY228,270

 4
48211 - LEAF, REAR SPRING, NO.1
48201-2E300

LY228,270

 2
48212 - LEAF, REAR SPRING, NO.2
48212-2E300

LY228,270

 2
48213 - LEAF, REAR SPRING, NO.3
48202-2E300

LY228,270

 2
48214 - LEAF, REAR SPRING, NO.4
48203-2E300

LY228,270

 2
48220 - SPRING ASSY, REAR LH
48210-2E300

LY228,270

4枚ﾘｰﾌ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-36450

LY228,270

 2
48252 - SILENCER, REAR SPRING
48252-26070

LY228,270

 8
48252 - SILENCER, REAR SPRING
48252-26070

LY228,270

 8
48252 - SILENCER, REAR SPRING
48252-26070

LY228,270

 8
48252 - SILENCER, REAR SPRING
48252-26070

LY228,270

 8
48252C - SILENCER, REAR SPRING, NO.2
48252-26401

LY228,270

 4
48252C - SILENCER, REAR SPRING, NO.2
48252-26401

LY228,270

 4
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130

LY228,270

 2
