LY228K-QLSDS (2001)
Toyota Quick Deli/Urban Sup
Production
Aug 2001
-
Jul 2004
Engine
5L
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0108-0407)LY228

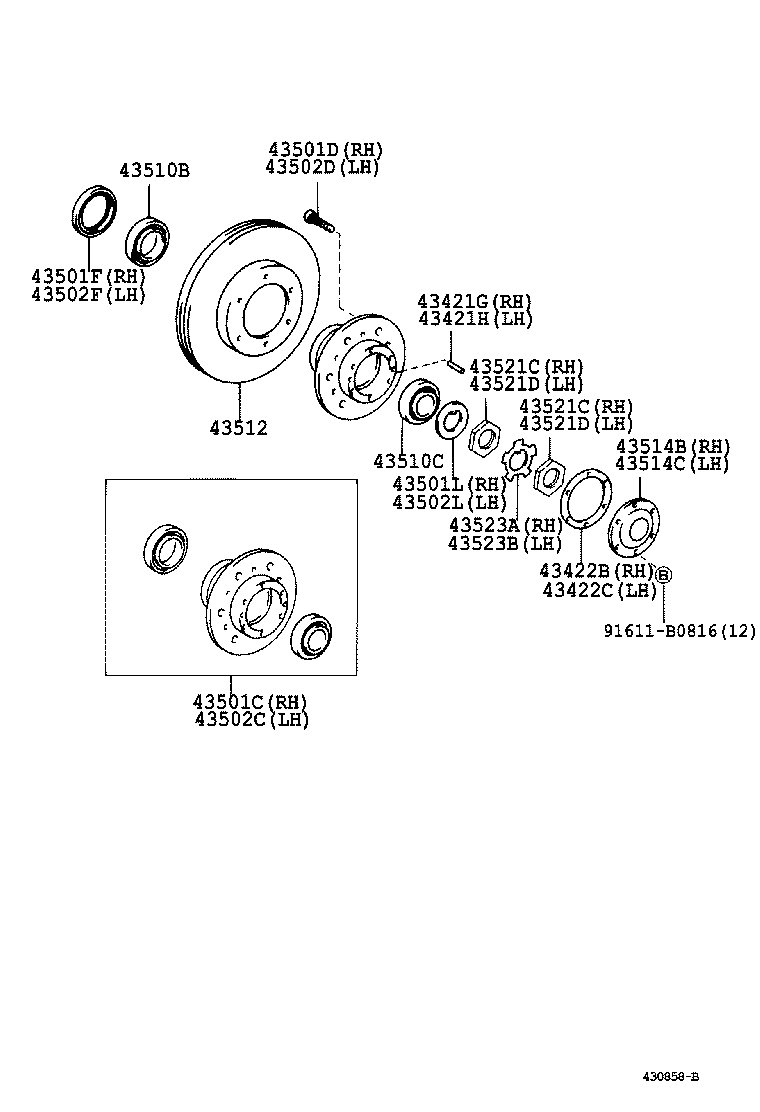

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43421G - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH) | ||||
| 90250-07057 |
LY228,270 ｱﾘ(ABS) |
2 | ||
| 90250-07057 |
LY228 |
1 | ||
| 43421H - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH) | ||||
| 90250-07057 |
LY228 |
1 | ||
| 90250-07057 |
LY228,270 ｱﾘ(ABS) |
2 | ||
| 43422B - GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH | ||||
| 43422-60010 |
LY228,270 |
1 | ||
| 43422C - GASKET, FRONT AXLE OUTER SHAFT FLANGE, LH | ||||
| 43422-60010 |
LY228,270 |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43503-29035 |
LY228,270 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02061 |
LY228,270 |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-66003 |
LY228,270 |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-42030 |
LY228,270 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43504-29015 |
LY228,270 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02062 |
LY228,270 |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-66003 |
LY228,270 |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-42030 |
LY228,270 |
1 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90080-36064 |
LY228,270 TIMKEN |
2 | ||
| 90368-49084 |
LY228,270 KOYO |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
LY228,270 KOYO |
2 | ||
| 90080-36067 |
LY228,270 TIMKEN |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-25060 |
LY228,270 |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-35020 |
LY228 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-35020 |
LY228 |
1 | ||
| 43521C - NUT, FRONT WHEEL ADJUSTING, RH | ||||
| 43521-60011 |
LY228,270 |
2 | ||
| 43521C - NUT, FRONT WHEEL ADJUSTING, RH | ||||
| 43521-60011 |
LY228,270 |
2 | ||
| 43521D - NUT, FRONT WHEEL ADJUSTING, LH | ||||
| 43521-60011 |
LY228,270 |
2 | ||
| 43521D - NUT, FRONT WHEEL ADJUSTING, LH | ||||
| 43521-60011 |
LY228,270 |
2 | ||
| 43523A - WASHER, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 90215-42025 |
LY228,270 |
1 | ||
| 43523B - WASHER, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 90215-42025 |
LY228,270 |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
