BU280K-QLQNS (1999)
Toyota Quick Deli/Urban Sup

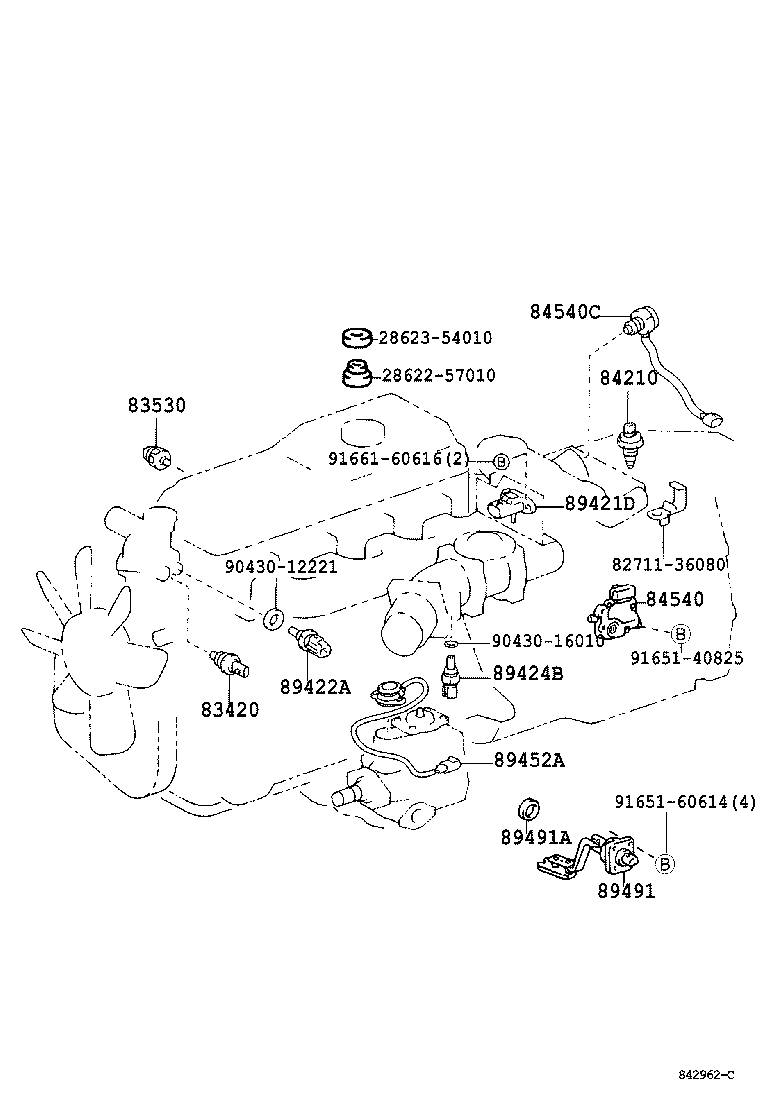

ILLUST NO. 1 OF 6(9908-0407)DSL
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
BU28#..DSL |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
BU28#..DSL YAZAKI |
1 | ||
| 83530-28010 |
BU28#..DSL DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BU28#,LY228,270,RZU280,XZU28#..MTM |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36090 |
BU28#..DSL |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89421-21010 |
BU28#..DSL |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-35010 |
BU28#..DSL |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-60010 |
BU28#..DSL |
1 | ||
| 89452A - SENSOR, THROTTLE POSITION | ||||
| 89452-10020 |
BU28#..DSL |
1 | ||
| Common parts | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-36080 | ||||
| 90430-12221 | ||||
| 90430-16010 | ||||
| 91651-40825 | ||||
| 91651-60614 | ||||
| 91661-60616 | ||||

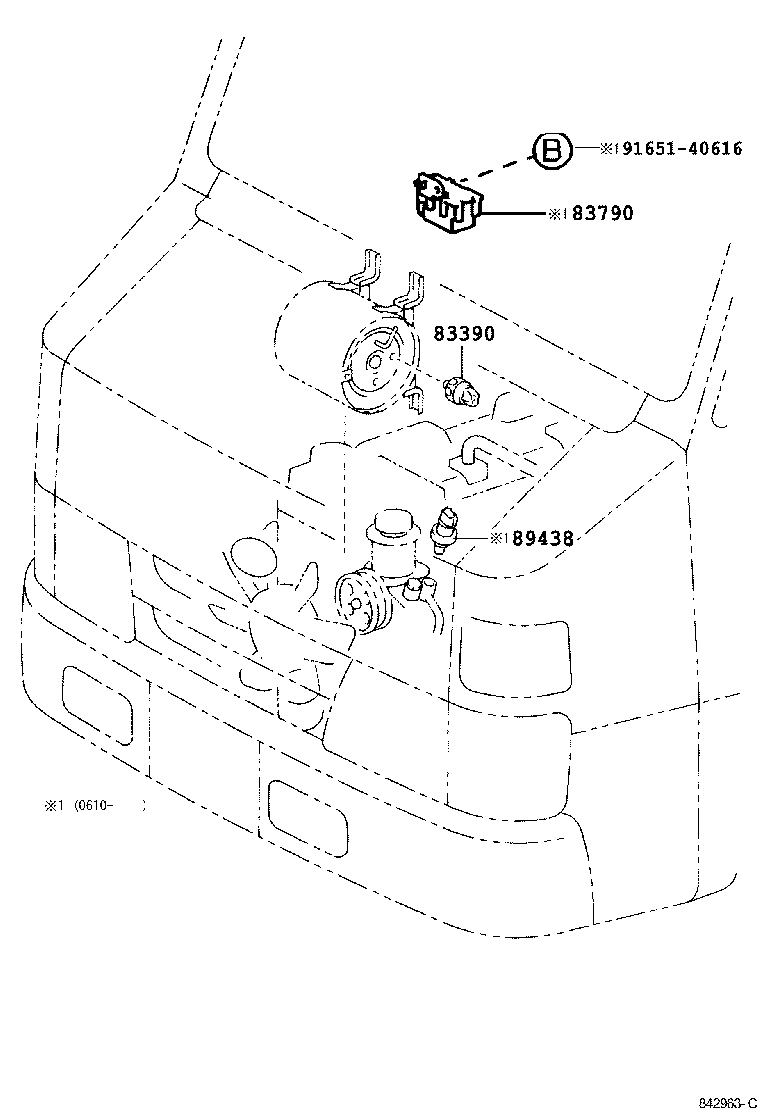

ILLUST NO. 2 OF 6(9908- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
RZU280,XZU281;BU28#,LY228,270,XZU280..DCR,DSL |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||

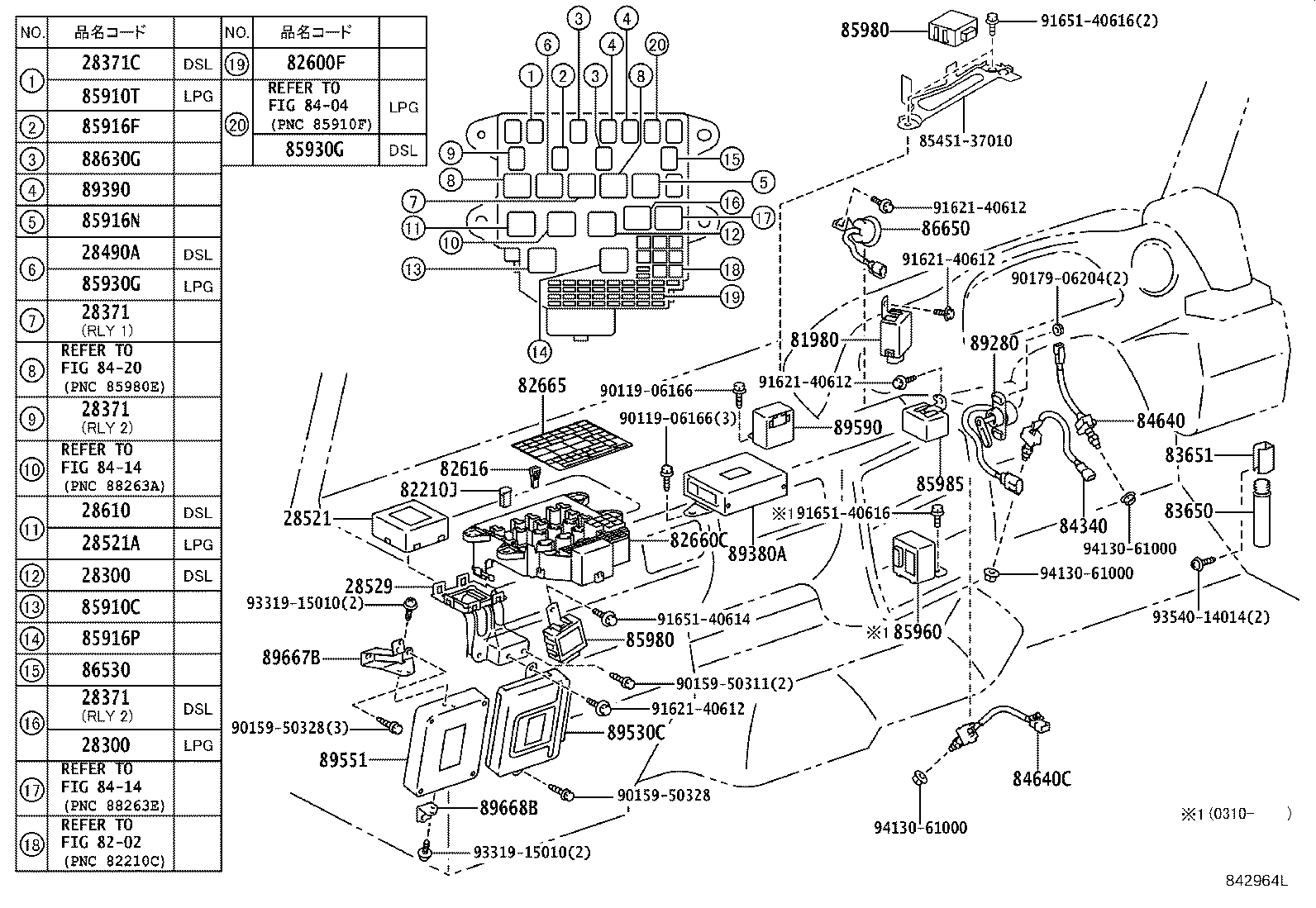

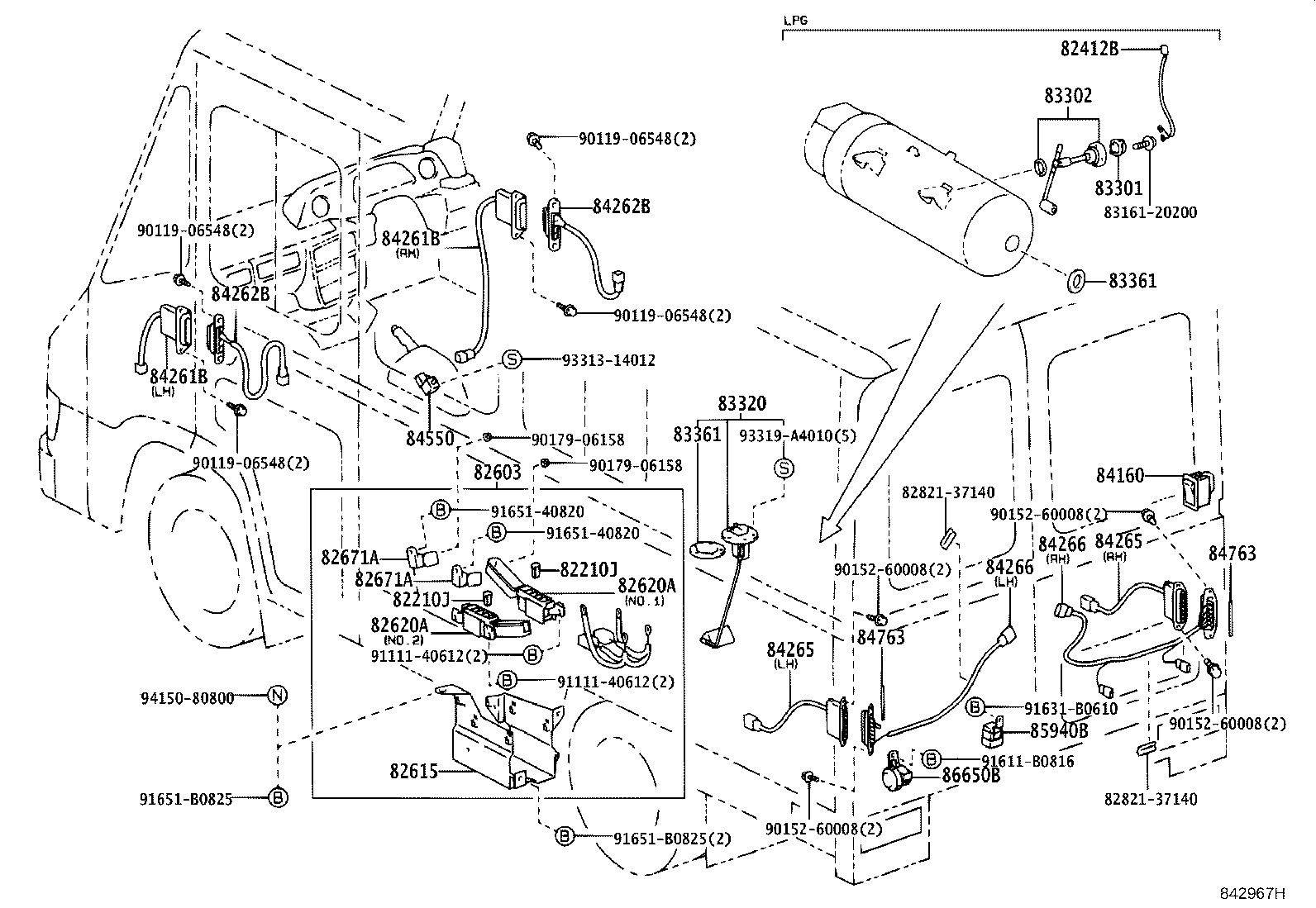

ILLUST NO. 3 OF 6(9908-0610)BU28#,LY228,270,RZU280
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-58040 |
4B..BU28# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-58040 |
4B..BU28# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85980-37060 |
N04C,4B..BU28#,XZU28# ﾘﾚｰ 1 |
1 | ||
| 90987-02017 |
N04C,4B..BU28#,XZU28# ﾘﾚｰ 2 |
1 | ||
| 90987-02018 |
4B..BU28# ﾘﾚｰ 3 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85980-37060 |
N04C,4B..BU28#,XZU28# ﾘﾚｰ 1 |
1 | ||
| 90987-02017 |
N04C,4B..BU28#,XZU28# ﾘﾚｰ 2 |
1 | ||
| 90987-02018 |
4B..BU28# ﾘﾚｰ 3 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85980-37060 |
N04C,4B..BU28#,XZU28# ﾘﾚｰ 1 |
1 | ||
| 90987-02017 |
N04C,4B..BU28#,XZU28# ﾘﾚｰ 2 |
1 | ||
| 90987-02018 |
4B..BU28# ﾘﾚｰ 3 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02017 |
N04C,4B..BU28#,XZU28# |
1 | ||
| 28490A - RELAY ASSY, EXHAUST RETARDER | ||||
| 28490-78010 |
4B..BU28# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
4B..BU28# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-25070 |
BU28#..DSL |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
XZU281..LPG;BU280,RZU280,XZU280 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
BU28#,RZU280,XZU28# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
BU28#,RZU280,XZU28# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
BU28#,RZU280,XZU28# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
BU28#,RZU280,XZU28# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
BU28#,RZU280,XZU28# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-37090 |
BU28#,LY228,270..DSL |
1 | ||
| 82660-37160 |
BU28#,LY228,270,RZU280 |
1 | ||
| 82665 - LABEL, RELAY BLOCK | ||||
| 82665-37010 |
BU28#..DSL |
1 | ||
| 82665-37012 |
BU28#..DSL |
1 | ||
| 82665-37011 |
BU28#..DSL |
1 | ||
| 82665-37013 |
BU28# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
RZU280..D;BU28#..DSL |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 62199-90P80 |
RZU280..D;BU28#..DSL |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36071 |
RZU280..D;BU28#..DSL |
1 | ||
| 84340-36070 |
BU28# |
1 | ||
| 84640 - SWITCH ASSY, EXHAUST BRAKE | ||||
| 84640-37040 |
BU28#..DSL |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37040 |
BU28#..DSL |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
BU28#..DSL |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02017 |
BU28#..DSL |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
BU28#..DSL |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
BU28#..DSL |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02017 |
BU28#..DSL |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02017 |
BU28#..DSL |
1 | ||
| 85960 - RELAY ASSY, LAMP CONTROL | ||||
| 85960-37021 |
BU28# |
1 | ||
| 85960-37020 |
BU28# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-37040 |
BU28#..DSL |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-37040 |
BU28#..DSL |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-36020 |
BU280..D..DSL |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
BU28#..DSL |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-25040 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02017 |
BU28#..DSL |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
BU280..LPG;BU28#..N..DSL |
1 | ||
| 89380A - COMPUTER ASSY, ES START | ||||
| 89380-37030 |
BU28#..N..DSL |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 90987-04008 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-37050 |
BU28#..DSL |
1 | ||
| 89667B - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-37030 |
BU28#..DSL |
1 | ||
| 89668B - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37030 |
BU28#..DSL |
1 | ||
| Common parts | ||||
| 85451-37010 | ||||
| 90119-06166 | ||||
| 90159-50311 | ||||
| 90159-50328 | ||||
| 90179-06204 | ||||
| 91621-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93319-15010 | ||||
| 93540-14014 | ||||
| 94130-61000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
| 8420 | ||||

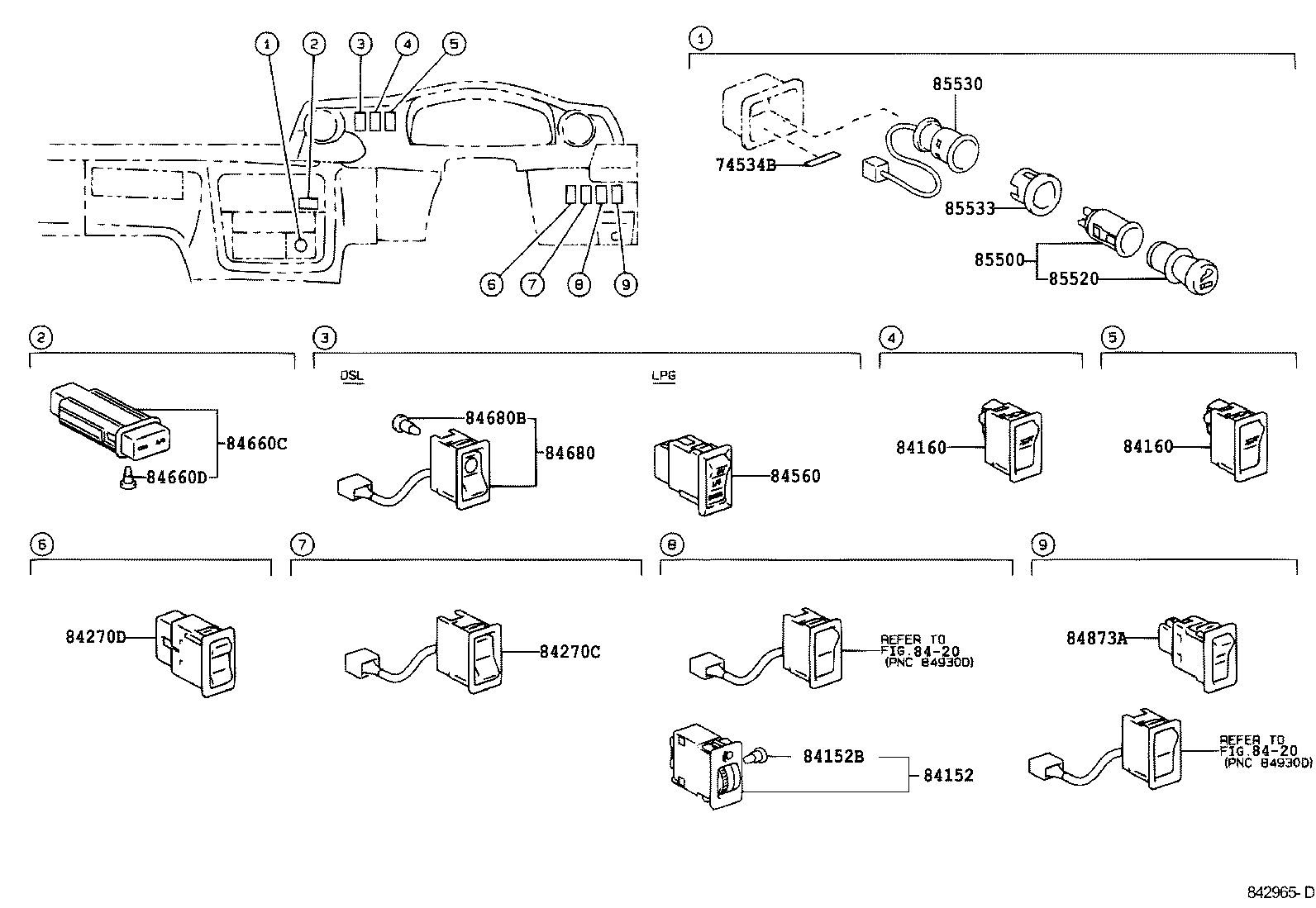

ILLUST NO. 4 OF 6(9908-0610)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74534B - PLATE, VOLTAGE CAUTION | ||||
| 74534-90K00 |
BU28#..DSL |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-90D00 |
BU28#,LY228,270,RZU280,XZU28# |
3 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-90D00 |
BU28#,LY228,270,RZU280,XZU28# |
3 | ||
| 84270C - SWITCH ASSY, ES START MAIN | ||||
| 84270-37050 |
BU280..LPG;BU28#..N..DSL |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37060 |
BU280..LPG;BU28#..N..DSL |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37030 |
BU28#..DSL |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 90010-03028 |
BU28#..DSL 28V1.12W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84680 - SWITCH ASSY, EXHAUST BRAKE MAIN | ||||
| 84680-36030 |
BU28#..DSL |
1 | ||
| 84680B - BULB | ||||
| 84999-10100 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
RZU280..D;BU28#,LY228,270 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
BU28#..DSL |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
BU28#..DSL |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-16020 |
RZU280..D;BU28#,LY228,270 |
1 | ||
| Linked diagrams | ||||
| 8420 | ||||

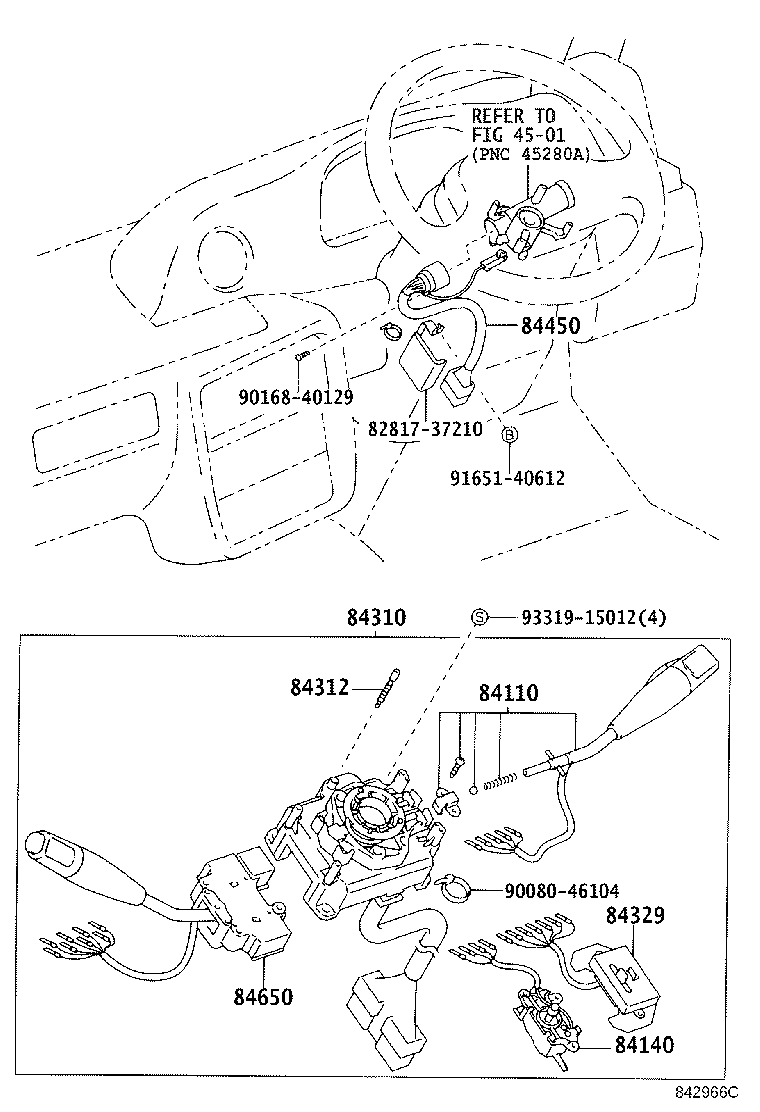

ILLUST NO. 5 OF 6(9908- )
ｲｸﾞﾆｯｼｮﾝ ｽｲｯﾁ & ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80224 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37070 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37310 |
BU280..D..DSL ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-37300 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37090 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37130 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37200 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 84652-37210 |
BU280..D..DSL ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 82817-37210 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 91651-40612 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 6 OF 6(9908-0610)BU28#,RZU280,XZU28#
ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80316 |
BU28#..DSL |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-90D00 |
BU28#,LY228,270,RZU280,XZU28# |
3 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-37020 |
RZU280..D;BU28#..DSL 左側 |
1 | ||
| 84261-37010 |
RZU280..D;BU28#..DSL 右側 |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-37020 |
RZU280..D;BU28#..DSL 左側 |
1 | ||
| 84261-37010 |
RZU280..D;BU28#..DSL 右側 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-37011 |
RZU280..D;BU28#..DSL |
2 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-37011 |
RZU280..D;BU28#..DSL |
2 | ||
| 84265 - JUNCTION, BACK DOOR MALE | ||||
| 84265-37030 |
RZU280..D;BU28#..DSL 右側 |
1 | ||
| 84265-37010 |
BU28#,LY228,270 右側 |
1 | ||
| 84265-37020 |
RZU280..D;BU28#..DSL 左側 |
1 | ||
| 84265-37030 |
BU280..D..DSL ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ),右側 & 左側 |
2 | ||
| 84265-37010 |
BU280,LY228,270..D..DSL ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ),右側 & 左側 |
2 | ||
| 84265 - JUNCTION, BACK DOOR MALE | ||||
| 84265-37030 |
RZU280..D;BU28#..DSL 右側 |
1 | ||
| 84265-37010 |
BU28#,LY228,270 右側 |
1 | ||
| 84265-37020 |
RZU280..D;BU28#..DSL 左側 |
1 | ||
| 84265-37030 |
BU280..D..DSL ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ),右側 & 左側 |
2 | ||
| 84265-37010 |
BU280,LY228,270..D..DSL ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ),右側 & 左側 |
2 | ||
| 84266 - JUNCTION, BACK DOOR FEMALE | ||||
| 84266-37010 |
RZU280..D;BU28#..DSL 右側 |
1 | ||
| 84266-37020 |
RZU280..D;BU28#..DSL 左側 |
1 | ||
| 84266-37030 |
BU280..D..DSL ｱﾘ(ﾘﾔﾜｲﾊﾟ),左側 |
1 | ||
| 84266 - JUNCTION, BACK DOOR FEMALE | ||||
| 84266-37010 |
RZU280..D;BU28#..DSL 右側 |
1 | ||
| 84266-37020 |
RZU280..D;BU28#..DSL 左側 |
1 | ||
| 84266-37030 |
BU280..D..DSL ｱﾘ(ﾘﾔﾜｲﾊﾟ),左側 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
BU28#,LY228,270,RZU280,XZU28# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-37010 |
RZU280..D;BU28#..DSL |
2 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-37010 |
RZU280..D;BU28#..DSL |
2 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-37030 |
BU280..D..DSL |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37050 |
BU28#,XZU28#..DCR,DSL |
1 | ||
| Common parts | ||||
| 82821-37140 | ||||
| 83161-20200 | ||||
| 90119-06548 | ||||
| 90152-60008 | ||||
| 90179-06158 | ||||
| 91111-40612 | ||||
| 91611-B0816 | ||||
| 91631-B0610 | ||||
| 91651-40820 | ||||
| 91651-B0825 | ||||
| 93313-14012 | ||||
| 93319-A4010 | ||||
| 94150-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
