BU280K-QLQNS (1999)

Toyota Quick Deli/Urban Sup

Production Aug 1999 - Jun 2004
Engine 4B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0406)BU28#,RZU280

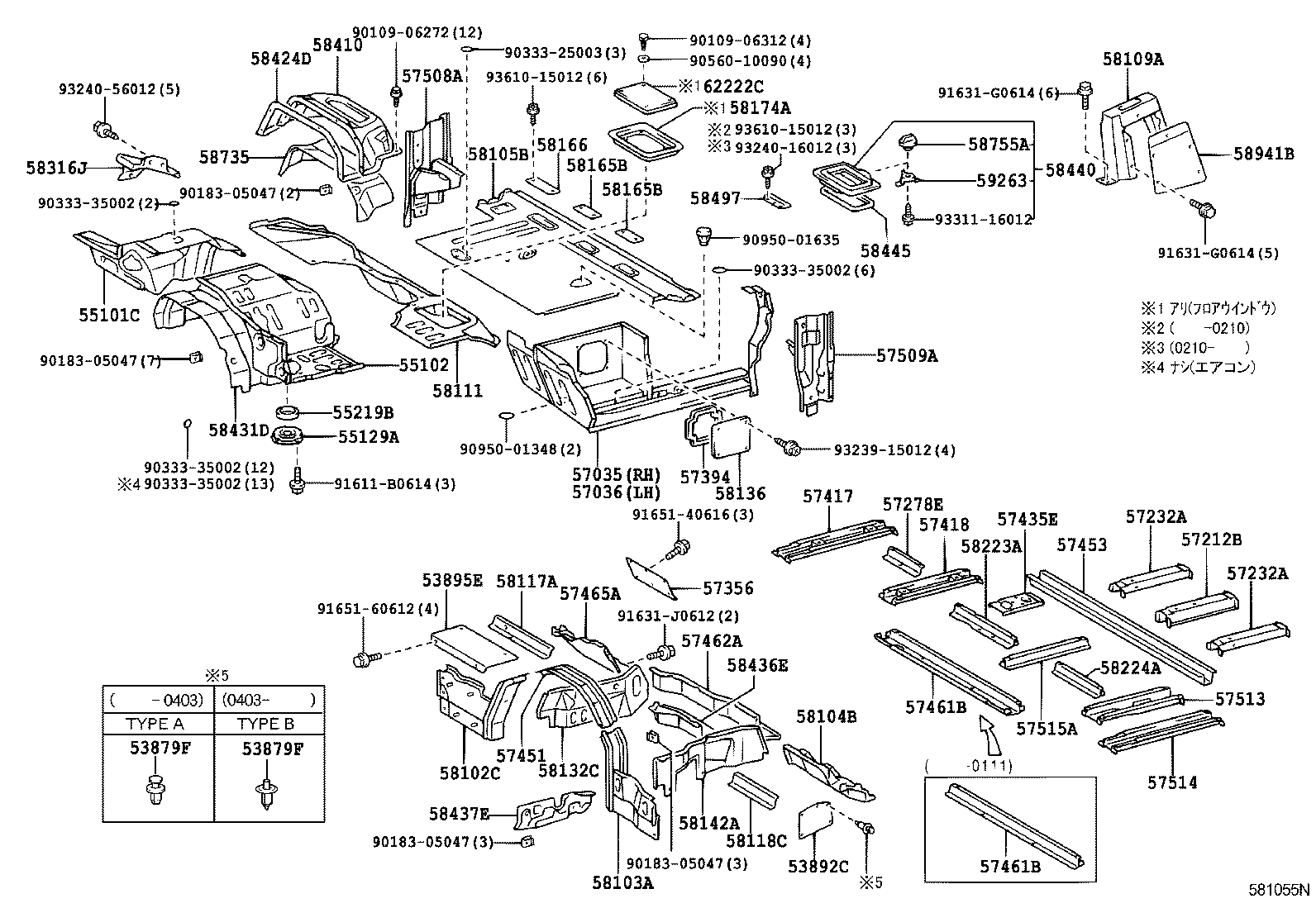

Click highlighted areas on diagram

diagram 53879F 53879F 53892C 53895E 55101C 55102 55129A 55219B 57035 57036 57212B 57232A 57232A 57278E 57356 57394 57417 57418 57435E 57451 57453 57461B 57461B 57462A 57465A 57508A 57509A 57513 57514 57515A 58102C 58103A 58104B 58105B 58109A 58111 58117A 58118C 58132C 58136 58142A 58165B 58165B 58166 58174A 58223A 58224A 58316J 58410 58424D 58431D 58436E 58437E 58440 58445 58497 58735 58755A 58941B 59263 62222C 9010906272 9010906312 9018305047 9018305047 9018305047 9018305047 9033325003 9033335002 9033335002 9033335002 9033335002 9056010090 9095001348 9095001635 91611B0614 91631G0614 91631G0614 91631J0612 9165140616 9165160612 9323915012 9324016012 9324056012 9331116012 9361015012 9361015012
Part # Description Qty Price
53879F - RETAINER, FRONT FENDER LINER
53879-60010

BU28#,LY228,270,RZU280

 5
53879F - RETAINER, FRONT FENDER LINER
53879-60010

BU28#,LY228,270,RZU280

 5
53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
53892-37040

BU28#,RZU280,XZU28#

 1
53895E - SHIELD, FRONT FENDER SPLASH, FRONT RH
53895-37020

RZU280;BU28#,LY228,270..DSL

 1
55101C - PANEL SUB-ASSY, TOE BOARD
55101-37030

RZU280;BU28#..DSL

 1
55102 - PANEL SUB-ASSY, DASH, LOWER
55102-37011

BU28#,LY228,270,RZU280

 1
55102-37010

BU28#

 1
55129A - COVER, FRONT FLOOR HOLE
55129-26010

RZU280..D;BU28#..DSL

 1
55219B - PACKING, DASH PANEL HOLE COVER
55219-26010

RZU280..D;BU28#..DSL

 1
57035 - PANEL SUB-ASSY, FRONT STEP, RH
57035-37010

RZU280..D;BU28#..DSL

 1
57036 - PANEL SUB-ASSY, FRONT STEP, LH
57036-37020

BU28#,RZU280,XZU28#

 1
57212B - STRENGTH, ANCHOR, NO.2
57212-37010

RZU280..D;BU28#..DSL

 1
57232A - STRENGTH, ANCHOR SIDE, NO.2
57232-37010

BU28#

 2
57232-37021

RZU280..D;BU28#..DSL

 2
57232A - STRENGTH, ANCHOR SIDE, NO.2
57232-37010

BU28#

 2
57232-37021

RZU280..D;BU28#..DSL

 2
57278E - GUSSET, NO.6 CROSSMEMBER, UPPER
57278-37010

RZU280..D;BU28#..DSL

 1
57356 - GUSSET, FRONT STEP, REAR RH
57356-37010

RZU280..D;BU28#..DSL

 1
57394 - PACKING, FRONT STEP SERVICE HOLE
69838-37011

RZU280..D;BU28#..DSL

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57505-37010

RZU280..D;BU28#..DSL

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57506-37010

RZU280..D;BU28#..DSL

 1
57435E - MEMBER, CENTER FLOOR SIDE, RH
57435-37010

RZU280..D;BU28#..DSL

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-37230

RZU280..D;BU28#..DSL

 1
57453 - MEMBER, FRONT FLOOR CROSS, NO.3
57503-37010

BU28#,RZU280

 1
57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57461-37010

BU28#

 1
57461-37011

RZU280..D;BU28#..DSL

 1
57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57461-37010

BU28#

 1
57461-37011

RZU280..D;BU28#..DSL

 1
57462A - MEMBER, CENTER FLOOR CROSS, NO.2
57462-37010

BU28#,RZU280

 1
57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH
57465-37020

RZU280..D;BU28#..DSL

 1
57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57508-37010

RZU280..D;BU28#..DSL

 1
57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57509-37030

RZU280..D;BU28#..DSL

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57504-37010

RZU280..D;BU28#..DSL

 1
57514 - REINFORCEMENT, FRONT FLOOR SIDE, LH
57514-37010

RZU280..D;BU28#..DSL

 1
57515A - REINFORCEMENT, FRONT FLOOR, CENTER
57515-37010

RZU280..D;BU28#..DSL

 1
58102C - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58102-37011

BU28#

 1
58102-37020

BU28#

 1
58102-37021

RZU280..D;BU28#..DSL

 1
58102-37010

BU28#

 1
58103A - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58103-37050

BU28#

 1
58103-37051

BU28#,LY228,270

 1
58103-37052

RZU280..D;BU28#..DSL

 1
58104B - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH
58104-37010

RZU280..D;BU28#..DSL

 1
58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58105-37020

BU280..D..DSL

 1
58105-37010

BU280..LPG;BU28#..N..DSL

 1
58105-37012

BU280..D..DSL

ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ = ｽﾗｲﾄﾞ ﾀｲﾌﾟ)

 1
58105-37022

BU280..D..DSL

 1
58105-37011

BU280..LPG;BU28#..N..DSL

 1
58105-37011

BU280..D..DSL

ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ = ｽﾗｲﾄﾞ ﾀｲﾌﾟ)

 1
58105-37021

BU280..D..DSL

 1
58105-37012

RZU280..D;BU28#..N..DSL

 1
58105-37010

BU280..D..DSL

ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ = ｽﾗｲﾄﾞ ﾀｲﾌﾟ)

 1
58109A - RETAINER SUB-ASSY, PARKING BRAKE
58109-37010

BU280..N

 1
58109-37010B0

BU280..LPG;BU280..D..DSL;BU281,RZU280,XZU28#

BLUISH GRAY,TRIM1#

 1
58111 - PAN, FRONT FLOOR
58111-37380

BU280,RZU280

 1
58111-37400

BU28#,RZU280..N

ｱﾘ(ﾌﾛｱｳｲﾝﾄﾞｳ)

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-37010

RZU280..D;BU28#..DSL

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-37010

RZU280..D;BU28#..DSL

 1
58132C - APRON, FRONT FLOOR SIDE, NO.1 RH
58132-37020

BU28#

 1
58132-37021

RZU280..D;BU28#..DSL

 1
58136 - COVER, FRONT FLOOR HOLE
57399-25010

RZU280..D;BU28#..DSL

 1
58142A - APRON, FRONT FLOOR SIDE, NO.1 LH
58142-37030

BU28#

 1
58142-37032

BU28#;RZU280..D

 1
58142-37031

RZU280;BU28#..DSL

 1
58165B - COVER, FRONT FLOOR, RH
58165-37010A0

BU280..D

WHITE,TRIM1#

 2
58165-37010A0

BU28#..N

WHITE,TRIM12

 2
58165-37010E0

BU280..N

JERSEY CREAM,TRIM12

 2
58165-37010A0

BU28#..N

WHITE,TRIM12

 1
58165-37010A1

BU28#..N

YAMATOUNYU JORSEY CR,TRIM12

 1
58165-37010A1

BU28#..N

YAMATOUNYU JORSEY CR,TRIM12

 2
58165B - COVER, FRONT FLOOR, RH
58165-37010A0

BU280..D

WHITE,TRIM1#

 2
58165-37010A0

BU28#..N

WHITE,TRIM12

 2
58165-37010E0

BU280..N

JERSEY CREAM,TRIM12

 2
58165-37010A0

BU28#..N

WHITE,TRIM12

 1
58165-37010A1

BU28#..N

YAMATOUNYU JORSEY CR,TRIM12

 1
58165-37010A1

BU28#..N

YAMATOUNYU JORSEY CR,TRIM12

 2
58166 - COVER, FRONT FLOOR, LH
58166-37010E0

BU280..N

JERSEY CREAM,TRIM12

 1
58166-37010A0

BU280..D

WHITE,TRIM1#

 1
58166-37011A0

BU28#..N

WHITE,TRIM12

 2
58166-37010A1

BU280..N

YAMATOUNYU JORSEY CR,TRIM12

 1
58166-37010A1

BU28#..N

YAMATOUNYU JORSEY CR,TRIM1#

 1
58166-37011A1

BU28#..N

YAMATOUNYU JORSEY CR,TRIM12

 2
58174A - ANGLE SUB-ASSY, FRONT FLOOR SIDE, LH
58174-37010

BU28#..N..DSL

 1
58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH
58277-37030

RZU280..D;BU28#..DSL

 1
58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH
58287-37020

RZU280..D;BU28#..DSL

 1
58316J - PLATE, FOOTREST, REAR
58316-37040

BU28#,RZU280

 1
58410 - COVER, ENGINE SERVICE HOLE
58401-37020B0

BU28#,RZU280

BLUISH GRAY,TRIM1#

 1
58424D - PACKING, ENGINE COVER
58424-37040

BU28#,RZU280

 1
58431D - SILENCER, ENGINE ROOM SIDE, FRONT RH
58431-37020

RZU280..D;BU28#..DSL

 1
58436E - SILENCER, FRONT FLOOR SIDE, A
58436-37030

RZU280;BU28#..DSL

 1
58437E - SILENCER, FRONT FLOOR SIDE, B
58437-37020

BU28#,RZU280

 1
58440 - COVER ASSY, BATTERY SERVICE HOLE
58440-37010B0

BU28#,LY228,270,RZU280,XZU28#

BLUISH GRAY,TRIM1#

 1
58445 - PACKING, BATTERY SERVICE HOLE COVER
58449-37020

RZU280..D;BU28#..DSL

 1
58497 - PLATE, BATTERY SERVICE HOLE COVER LOCK
58497-37010B0

BU28#,LY228,270

BLUISH GRAY,TRIM1#

 1
58735 - SILENCER, ENGINE
58735-37040

BU28#,RZU280

 1
58755A - HANDLE, ENGINE SERVICE COVER CATCH
58755-95D00

RZU280..D;BU28#..DSL

 1
58941B - COVER, PARKING BRAKE HOLE
58941-37040B0

BU28#,LY228,270,RZU280,XZU28#

BLUISH GRAY,TRIM1#

 1
59263 - HOOK, ENGINE COVER LOCK
59263-95D00

BU28#,LY228,270

 1
62222C - GLASS, SIDE WINDOW, FRONT LOWER LH
62072-37010

BU28#..N..DSL

 1
Common parts
90109-06272
90109-06312
90183-05047
90333-25003
90333-35002
90560-10090
90950-01348
90950-01635
91611-B0614
91631-G0614
91631-J0612
91651-40616
91651-60612
93239-15012
93240-16012
93240-56012
93311-16012
93610-15012
